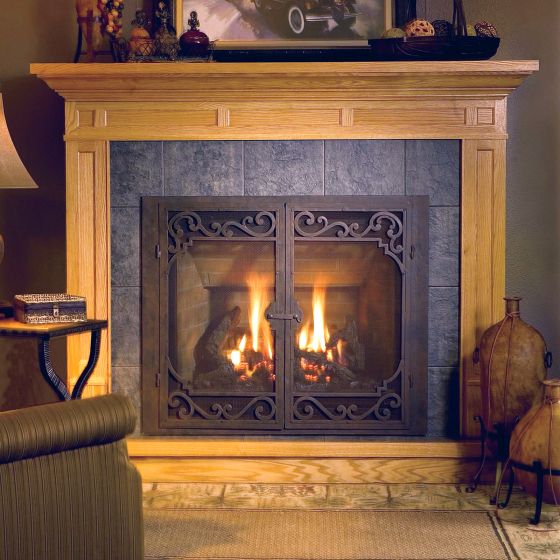

55345-MV Kozy Heat Minnetonka Millivolt Direct Vent Gas Fireplace

The 55345-MV is a variant of the 55345 Minnetonka fireplace model from Kozy Heat.

This is a direct vent gas fireplace that features millivolt controlled gas valves. Millivolt fireplace systems keep gas valves closed while the fireplace is not in operation.

55345-MV fireplaces are configured for either natural gas (NG) or liquid propane gas (LPG.)

A millivolt remote transmitter and receiver are capable of controlling several features of the 55345-MV, including blower control, the thermostat, flame height, the accent lights, and more.

The remote also features a child-safety lock-out to prevent unintended operation.

Features of the 55345-MV Minnetonka Fireplace

• Features a dual burner set-up, with a front and back burner.
• Smart thermostat setting on the remote adjusts the flame height based on the set temperature and room temperature.
• Comes standard with a decorative log set.
• Backup battery pack is able to operate main burner in the event of a power-outage.
• Direct vent setup draws combustion air from outside while also venting combustibles outdoors.

Specifications

Input Rating: 40,000 BTU/hr. (NG & LPG)

Electricity Requirements: 120V

Min. Inlet Gas Pressure:

• Natural Gas: 5 in. W.C
• Liquid Propane Gas: 11 in. W.C

Max. Inlet Gas Pressure:

• Natural Gas: 10.5 in. W.C
• Liquid Propane Gas: 13 in. W.C

Manifold Pressure:

• Natural Gas: 3.5 in. W.C HI, 1.6 in. W.C LO
• Liquid Propane Gas: 10 in. W.C HI, 6.4 in. W.C LO
