520006 OEM Technology Pump Kit with 3/4 Horizontal Shaft | 3300 PSI
In stock
Part Number
520006
$98.99

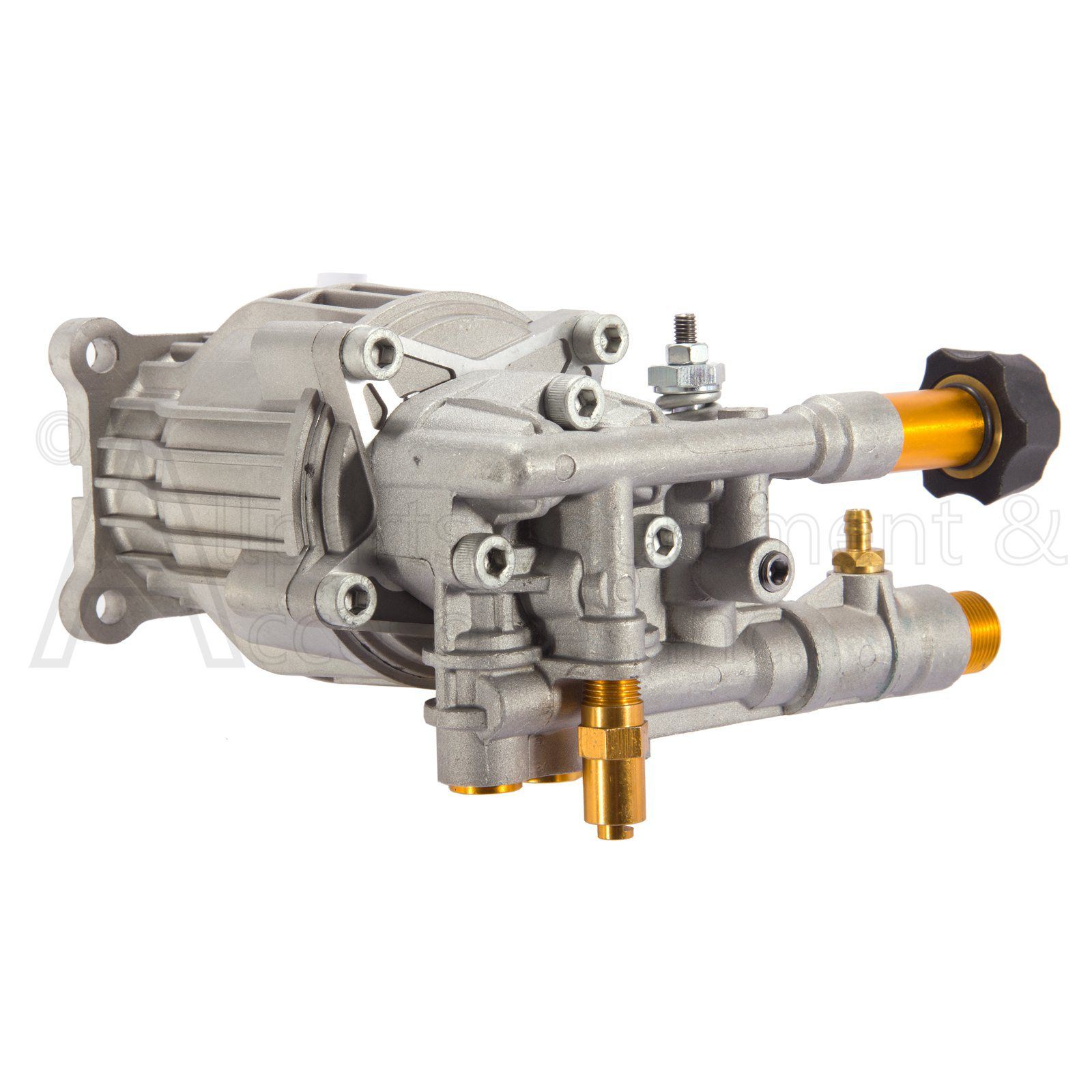

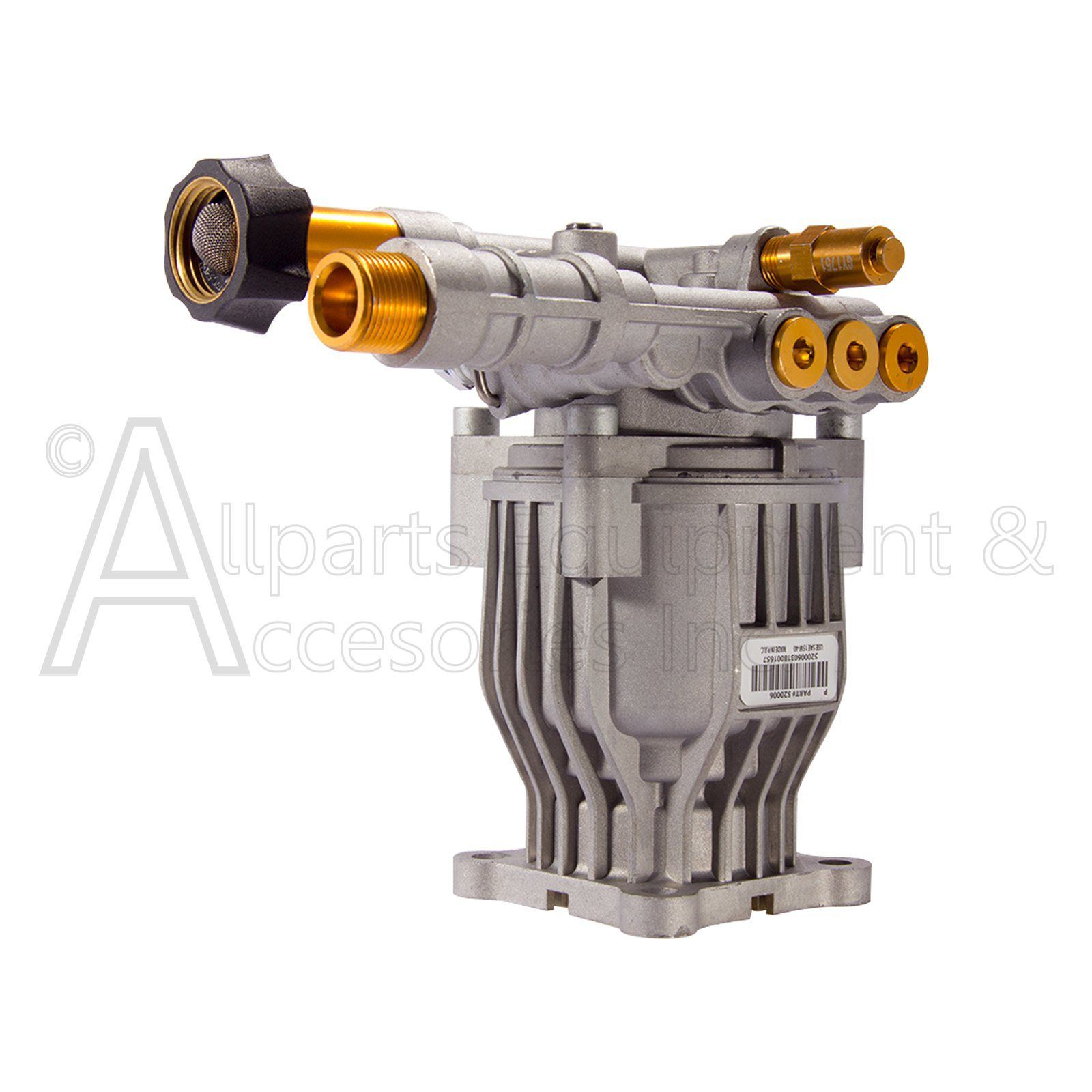

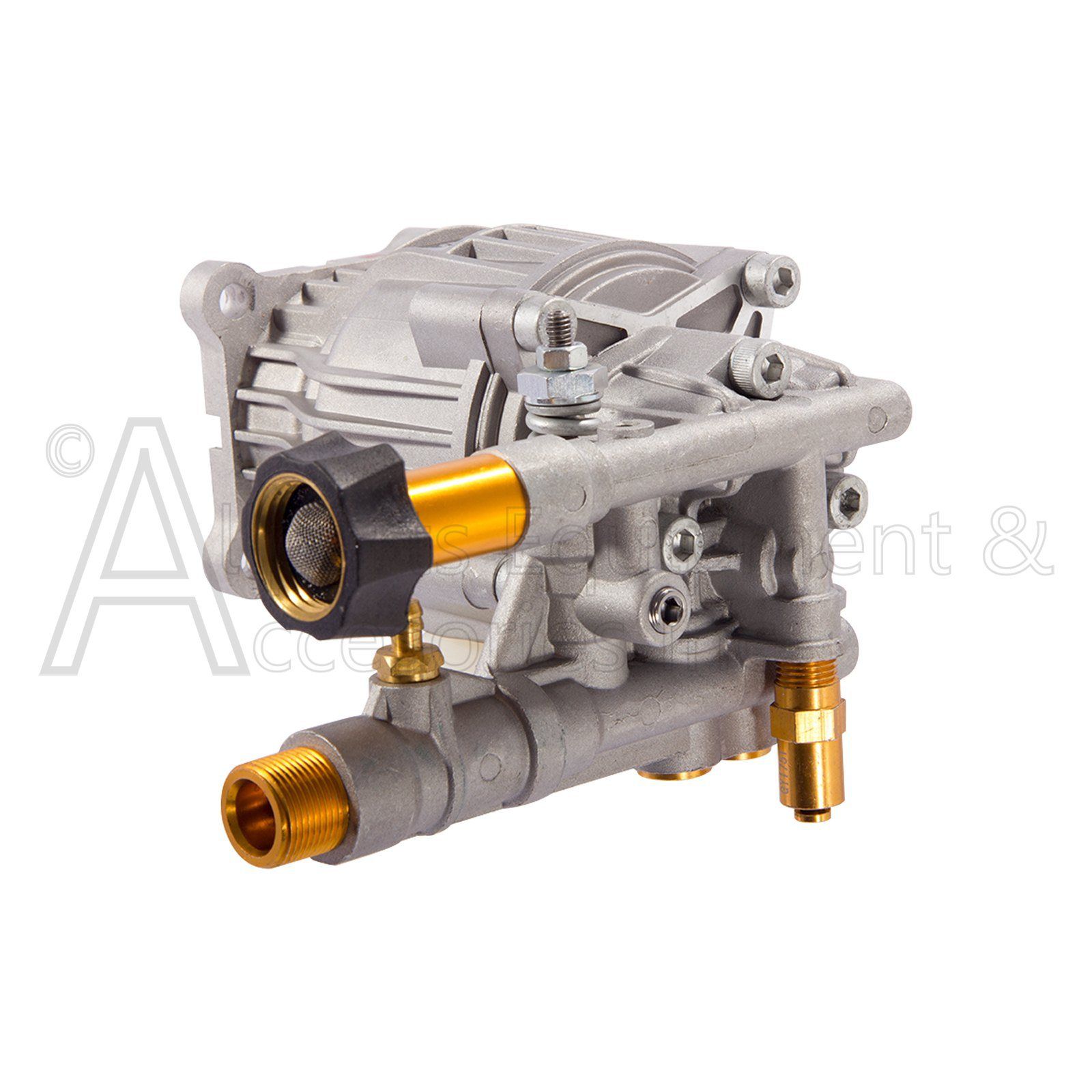

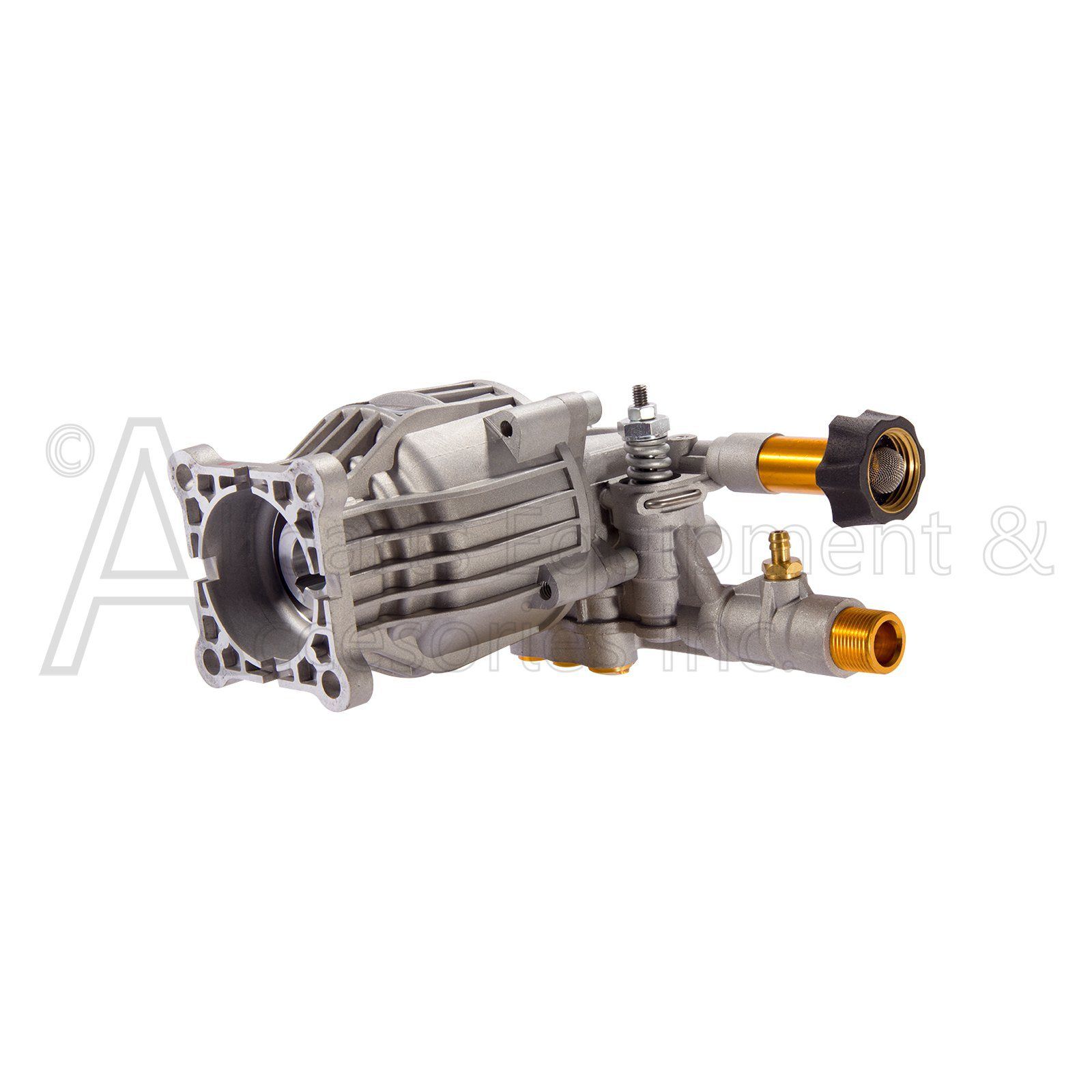

The 520006 is an OEM Technologies Phoenix axial cam pump replacement designed for peak performance.
These Phoenix Series pumps are designed to be mounted horizontally with an SAE J609A flange bolt pattern.

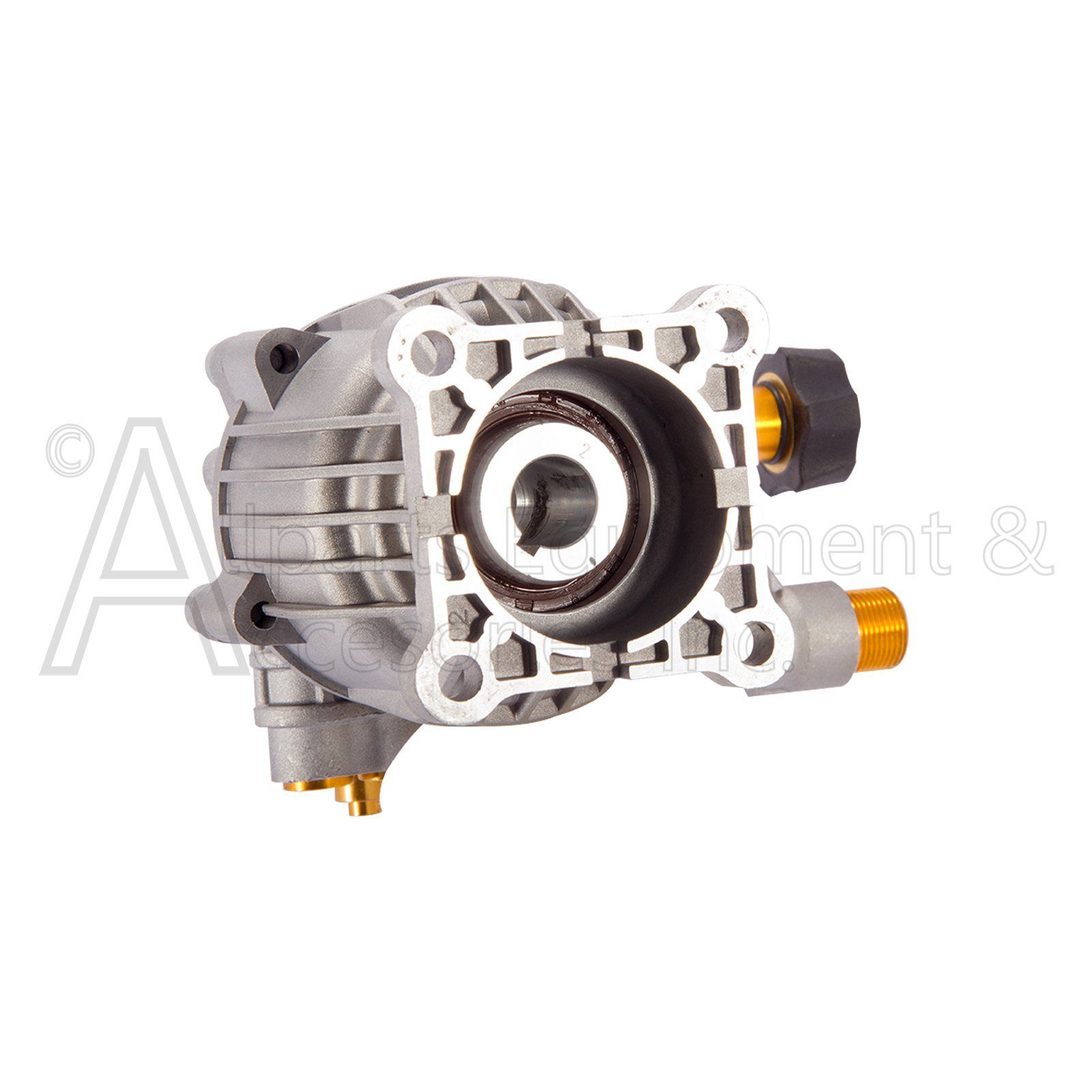

The 520006 has the industry standard 4-bolt mounting pattern to a 3/4-inch shaft motor and is driven with a 3/16 Square Key. A drive key is not included, but can be purchased here.
OEM Technology pumps are used on many portable cold water power washers manufactured by FNA Group under private labels, including Simpson, DeWalt, Delco, Mega Shot, Cub Cadet, and other brands of pressure washers.
Features Of The 520006:
- Equipped with PowerBoost Technology for maximum water flow volume and increased pressure.
- Stainless steel unloader assembly with built-in easy-start system.
- Utilizes high-quality stainless steel pistons for improved seal life.
- Thermal relief valve protection to prevent pump damage from overheating.
- Rear oversized radial ball bearings are installed for better wear and friction resistance.
- Precision ceramic-coated pistons are used for extended seal life.
- Fully anodized, die-cast aluminum crankcase for corrosion protection is sealed to prevent contamination and lubrication failure.
- Gas engine flange and 3/4 hollow shaft that fits most horizontal shaft engines.
520006 Specifications:
| Max. Pressure: | 3300 PSI | |
| Max. Flow Rate: | 2.4 GPM | |
| Inlet Port: | 3/4” in. GH | |
| Discharge Port: | 22mm threaded male fitting | |
| Inlet Pressure Range: | 10-60 PSI | |
| Thermal Relief Port: | 1/4” in. NPT | |
| Shaft Diameter: | 3/4” in. | |
| Flange Bolt Pattern: | SAE J-609A | |
| Key Way: | 3/16” in. | |
| Pump Oil Capacity: | 6.0 fl. oz. | |
| Head: |
| |
This 520006 OEM Technologies pump comes with a 1-year limited warranty.
Extend the Life of Your Pressure Washer:
Save money by replacing your pump instead of buying a whole new power washer.
This easy-to-install kit is great for power washers that can support 3300 PSI at 2.4 GPM to wash walls, fences, sidewalks, vehicles, and more.
Easy Installation: This replacement pump features a garden hose inlet and threaded M22 connection high-pressure hose outlet. The SAE standard bolt pattern that fits most gas-powered pressure washers.
Skip the Oil Change: This pump features a maintenance-free crankcase so you never have to change the oil. It is manufactured from fully anodized die-cast aluminum for protection against corrosion.
Extended Durability: A Thermal Relief Valve (TRV) protects the pump from overheating while in bypass mode.
The TRV releases small amounts of hot water and intakes cooler water to prevent overheating and extend the life of the pump.
Get the Right Pump for Your Machine: This pump is designed for gas-powered pressure washers with horizontal engines.
Its Standard SAE bolt pattern and standard connections make it a great fit for many brands and models of power washers.
