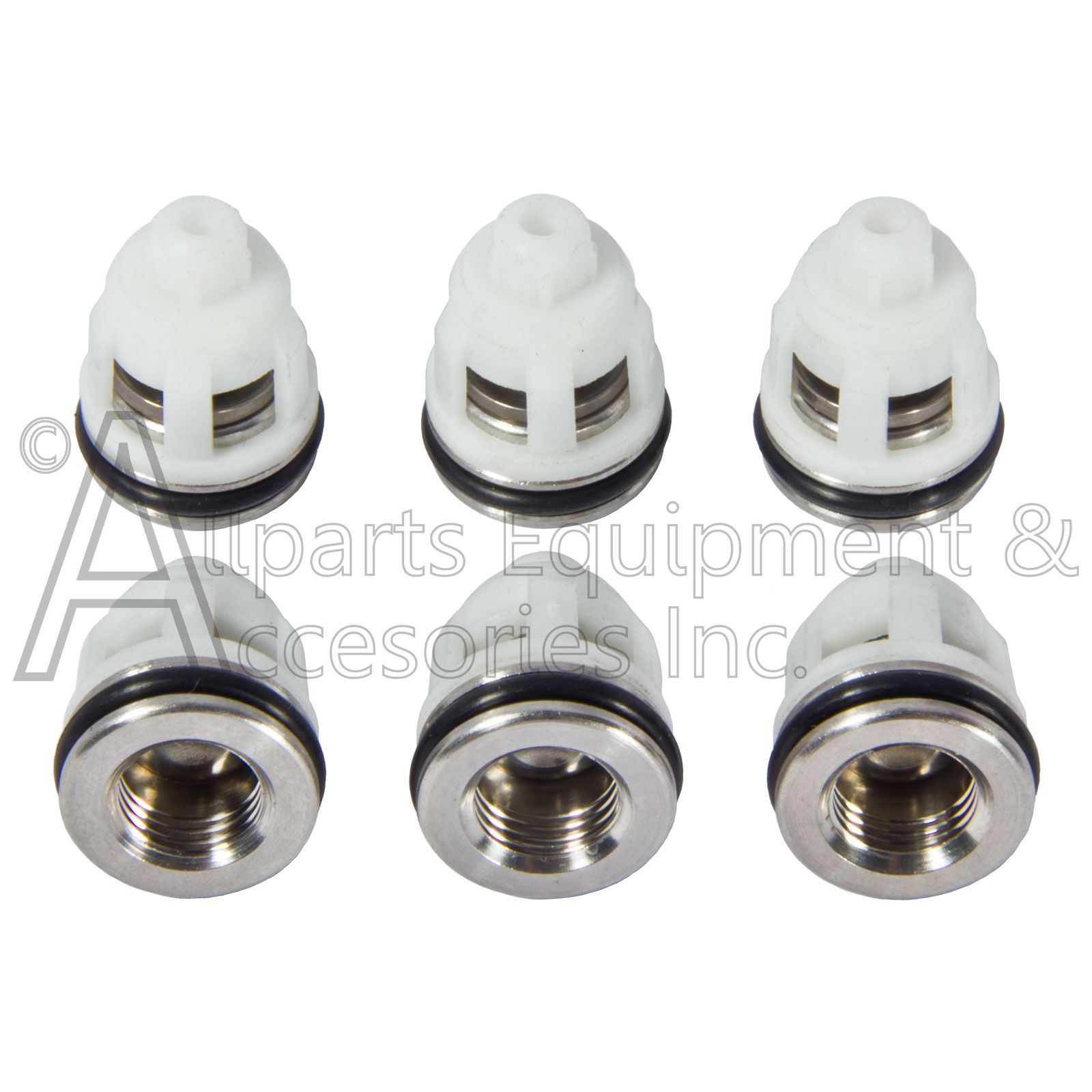

5140182-85 Valve replacement kit for Dewalt 3800 and higher pressure washer pumps.

The 5140182-85  Valve Repair kit will fit the following DeWalt Pressure Washers with the AAA High Pressure Water pumps.

DXPW3835-CA Dewalt Pressure Washer with AAA pump
DPW3835-CA Dewalt Pressure Washer with AAA pump
DXPW4035 Dewalt Pressure Washer with AAA pump
DXPW4035-CA Dewalt Pressure Washer with AAA pump
DXPW4240-CA Dewalt Pressure Washer with AAA pump

The 5140182-85  Valve Repair kit will fit the following DeWalt High Pressure Triplex Plunger Water pumps.

DeWalt 5140206-95 Triplex Plunger Washer C-41 Pump
DeWalt 5140182-89 3800 PSI AAA Pump

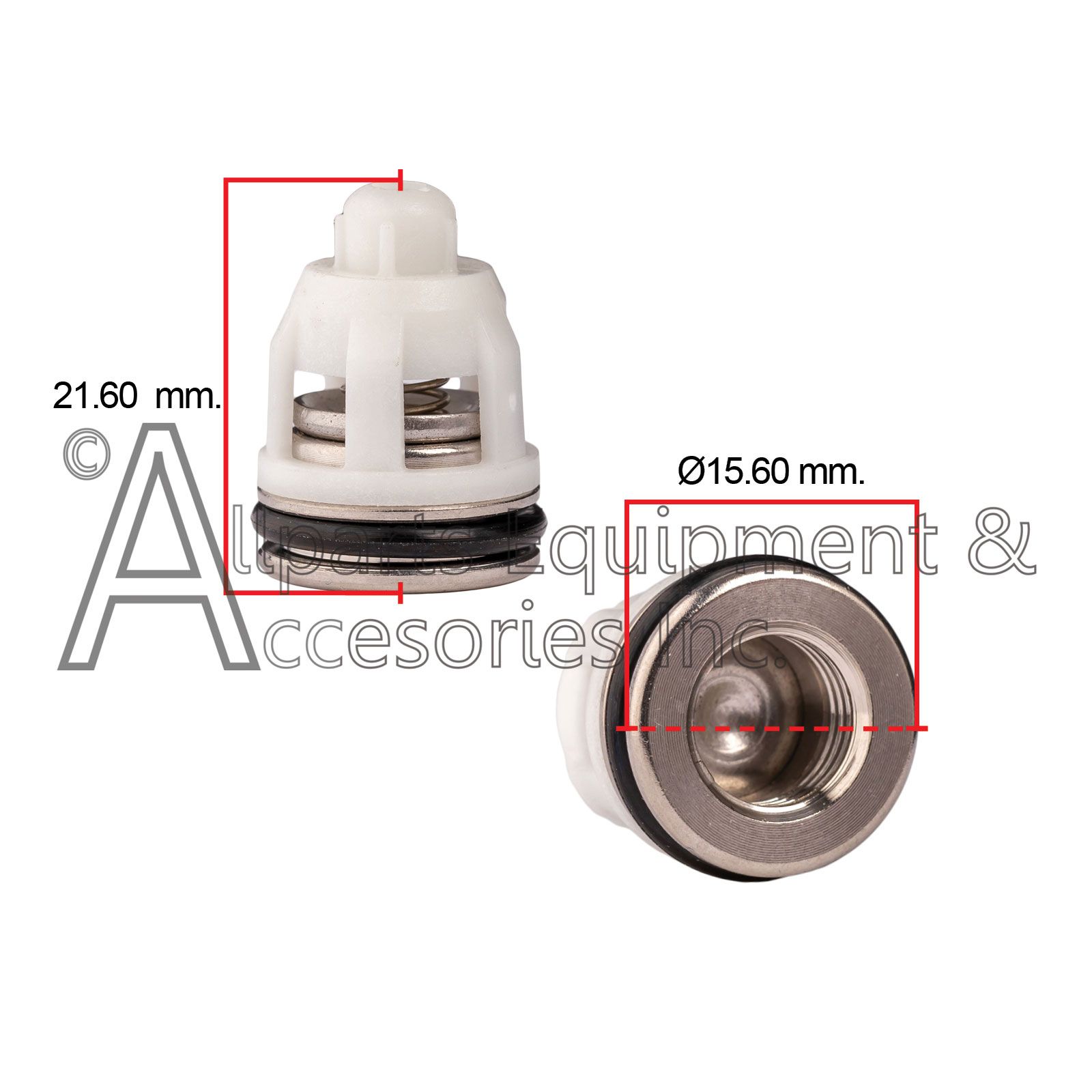

Each of the individual valves in the 5140182-85 replace valve kit will have the following approximate dimensions:

Metal Base with "O" ring Outside Diameter: .610 In
Height to Shoulder of Each Replacement Valve with Metal Seat: .675 In

Service Note:

Please refer to included instructions when replacing valves.

This valve kit WILL NOT WORK on the old style pump with the silver acorn style nut on the top of the unloader.
