5140118-3 air compressor pump gasket and seals kit
5140118-3 air compressor pump gasket and seals kit replacement gaskets included in the 5140118-3 gasket kit filters and seals included with the 5140118-3 gasket kit

5140118-3 DeVilbiss Oil-Lubricated Twin Cylinder Air Compressor Gasket Kit

In stock

$34.05

In stock

Part Number: 5140118-3
Compatible Brands: DeVilbiss
Shipping Weight: 0.8125 Lbs

The 5140118-3 DeVilbiss gasket kit is a replacement gasket kit for select aluminum series twin cylinder oil-lubricated air compressor pumps. This kit is used on compatible ball-bearing-style pumps produced by DeVilbiss Air Power Company and sold under several private-label air compressor brands.

The 5140118-3 gasket kit includes head, valve plate, and base gaskets, along with vent filters and other service components for compatible oil-lubricated pump assemblies. This kit is not a complete gasket and seal set for older twin-cylinder pumps with crankshaft needle bearings.

5140118-3 Air Compressor Gasket Kit Specifications

  • Kit Type: Air compressor pump gasket kit
  • Pump Style: Oil-lubricated twin cylinder pump
  • Pump Construction: Aluminum series pump
  • Bearing Style: Ball bearing style pump
  • Included Gasket Types: Head gasket, valve plate gasket and base gasket
  • Included Filters: 2 vent filters, and 1 air filter
  • Included Components: Plug-52mm and oil seal

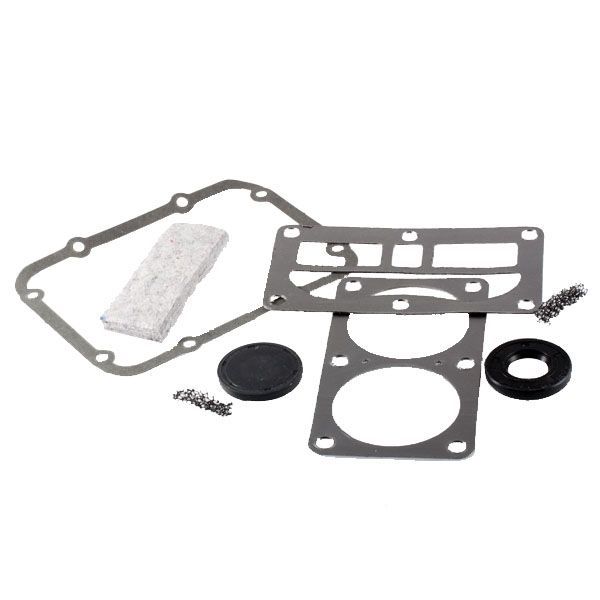

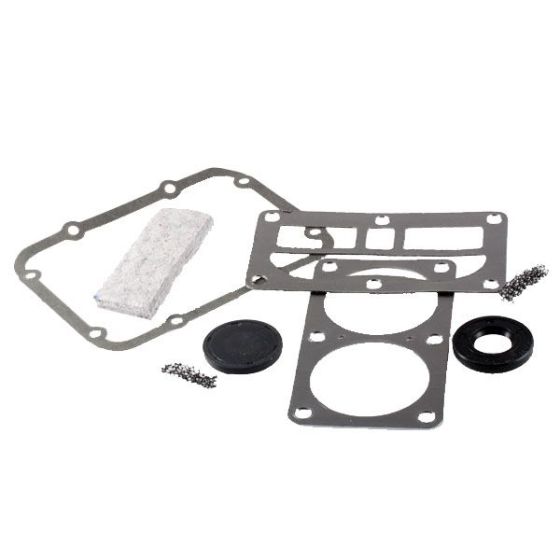

5140118-3 Gasket Kit Contents

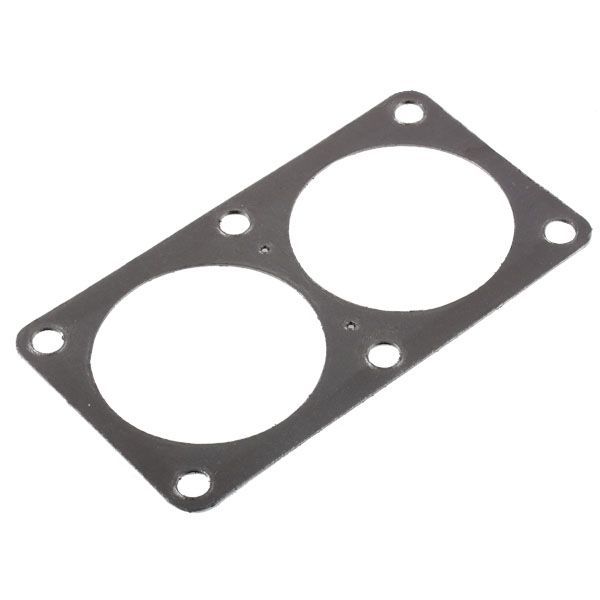

  • Head gasket

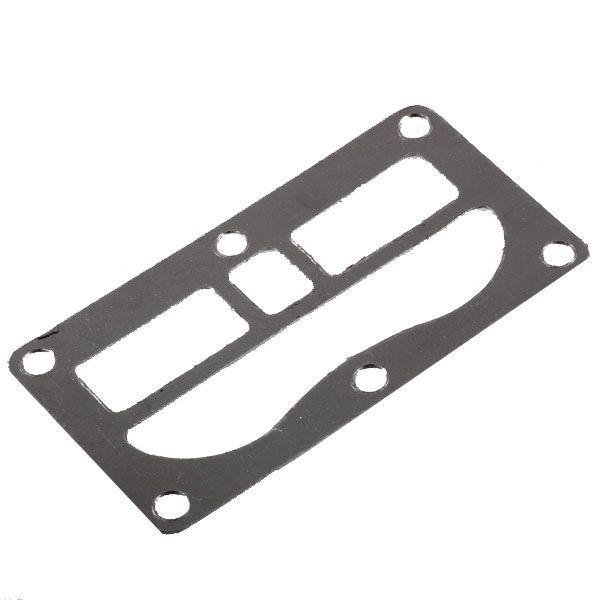

  • Valve plate gasket

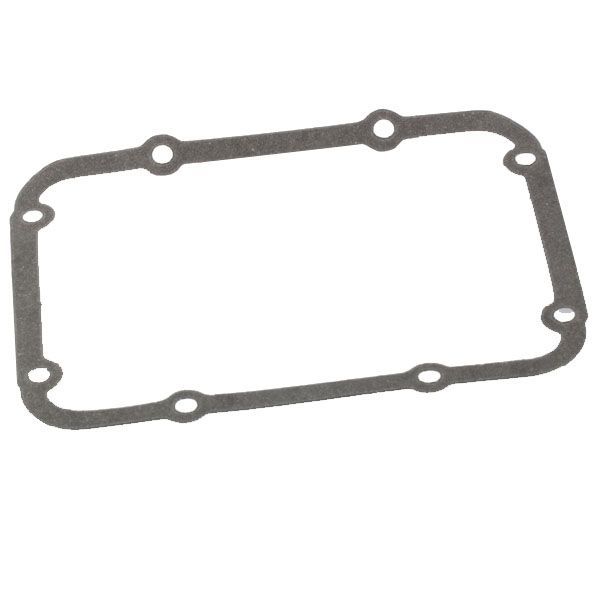

  • Base gasket

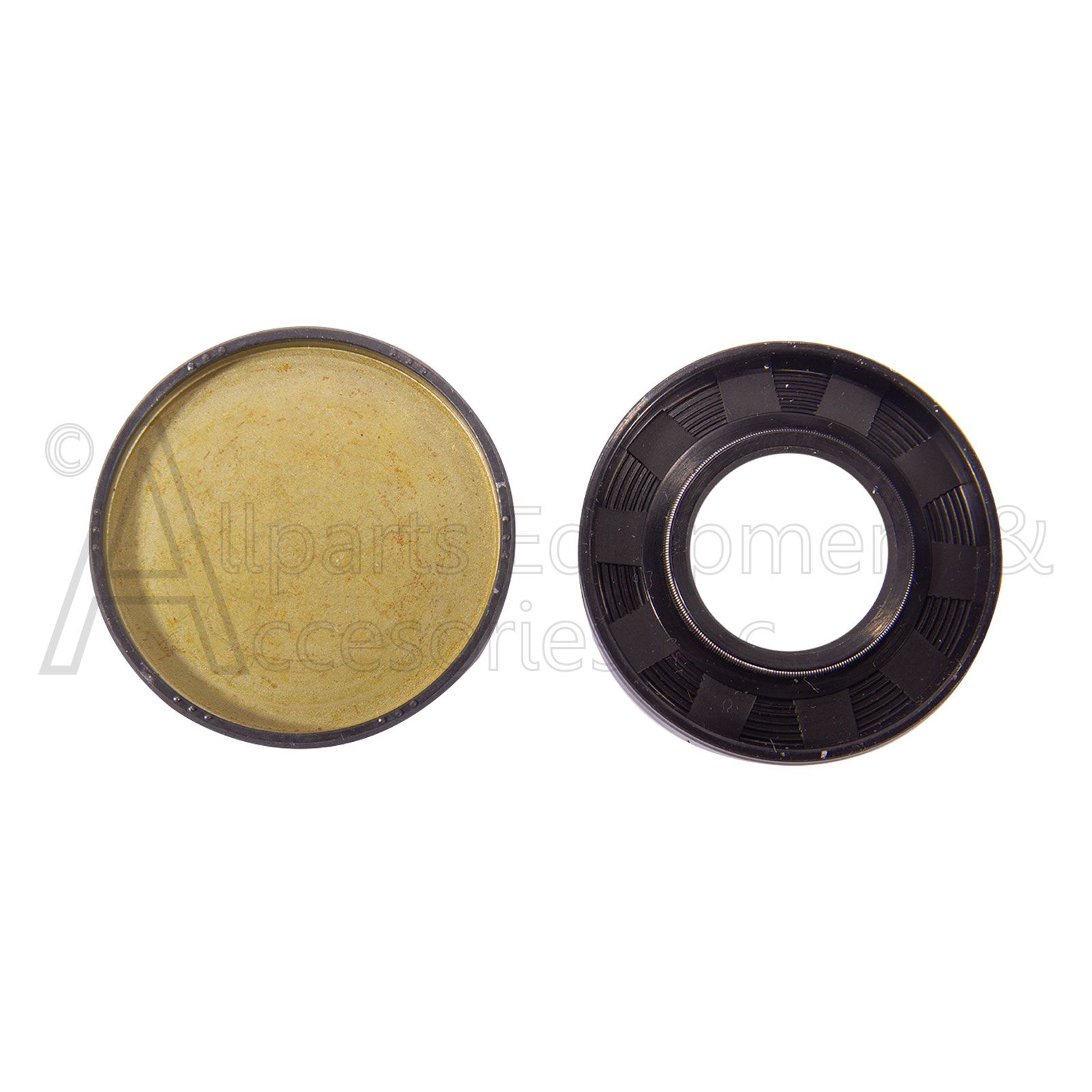

  • Plug-52mm
  • Oil seal

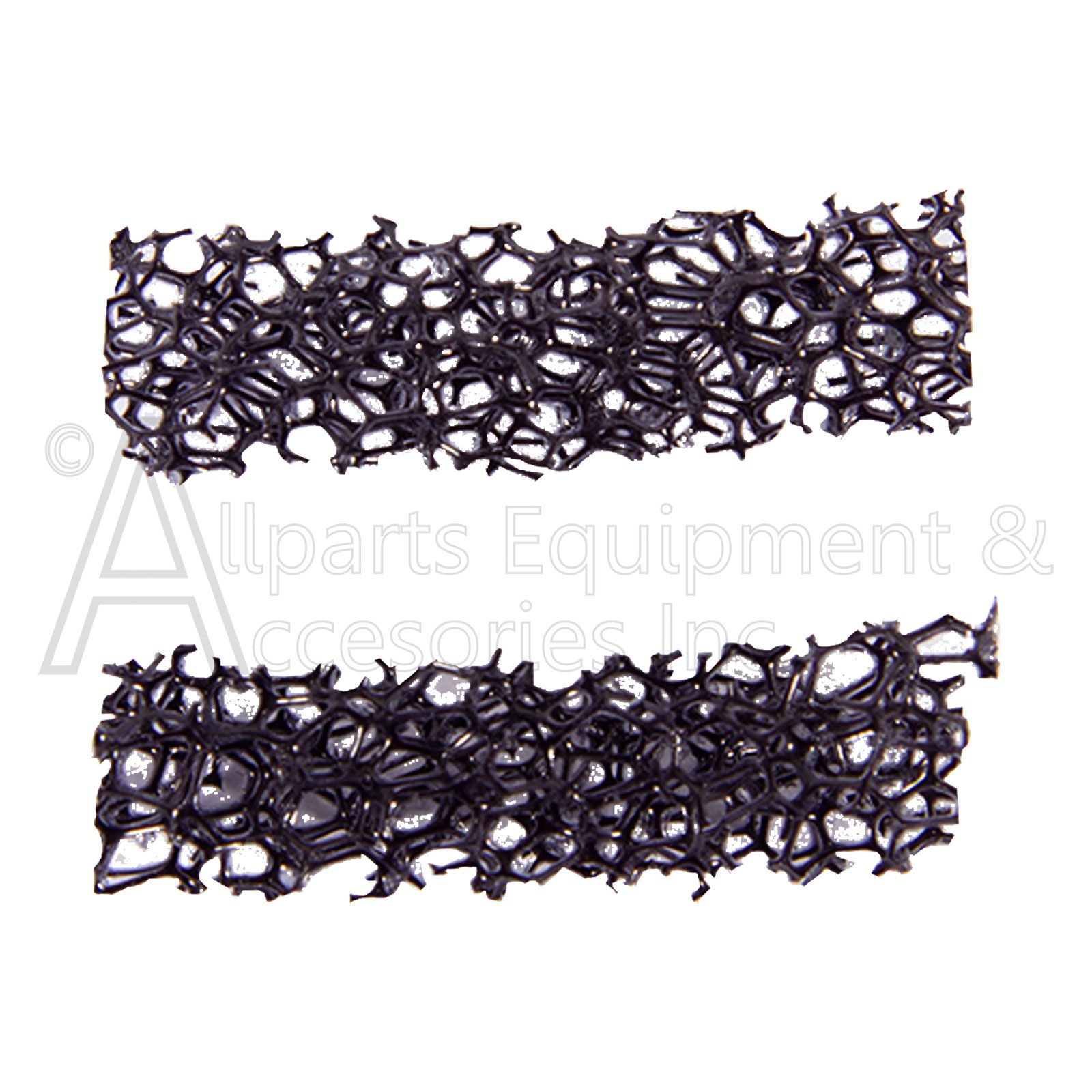

  • 2 vent filters

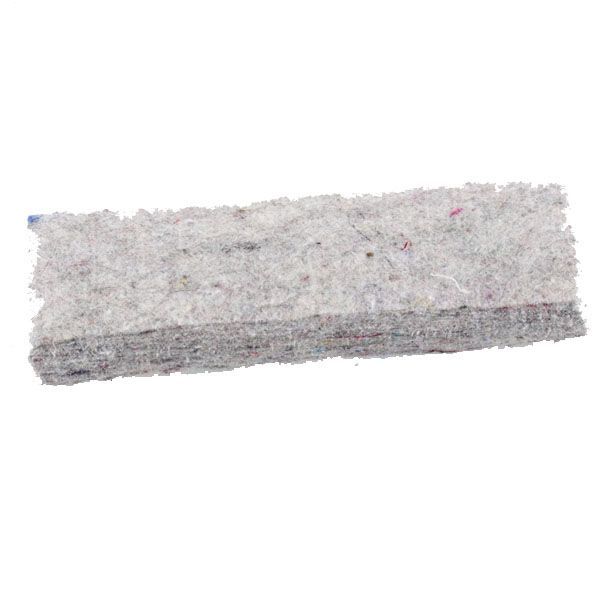

  • 1 air filter

5140118-3 Gasket Kit Key Features

  • Replacement gasket kit for compatible oil-lubricated twin cylinder air compressor pumps
  • Designed for select aluminum series ball bearing style pump assemblies
  • Includes the primary pump gaskets used for head, valve plate, and base sealing
  • Vent filters and air filters are included with the gasket kit
  • Not intended to supply every gasket and seal required for older crankshaft needle bearing pump versions
  • Useful for matching DeVilbiss-built compressor pumps sold under multiple private-label brands

Need Help? Call us:

1-269-685-4123

For availability, please text:

1-269-447-0412

Compatible Models

The 5140118-3 gasket kit is known to properly fit and function with the following partial list of air compressors:

Craftsman Air Compressors

  • Craftsman 919-15725 Type 1
  • Craftsman 919-15726 Type 0
  • Craftsman 919-18416 Type 1
  • Craftsman 919-18419 Type 0
  • Craftsman 919-18419 Type 1
  • Craftsman 919-18695 Type 1
  • Craftsman 919-72728 Type 0
  • Craftsman 919-72728 Type 2

DeVilbiss Air Compressors

  • DeVilbiss 66-750 Type 0
  • DeVilbiss ACBL530VP Type 3
  • DeVilbiss ACBL530VP Type 4
  • DeVilbiss ACBL5G20 Type 0
  • DeVilbiss ACBL5G20 Type 2
  • DeVilbiss ACBL5G20 Type 3
  • DeVilbiss ACBL5G20HP Type 0
  • DeVilbiss ACBL660V Type 0
  • DeVilbiss ACBL660V Type 1
  • DeVilbiss ACBL760V Type 0
  • DeVilbiss AFL560V Type 1
  • DeVilbiss AFL560V Type 2
  • DeVilbiss AFL560V Type 3
  • DeVilbiss AFL5G20 Type 0
  • DeVilbiss AFL660V Type 0
  • DeVilbiss AFL660V Type 1
  • DeVilbiss EXL6560V Type 0
  • DeVilbiss EXLC5G20 Type 0
  • DeVilbiss EXLC7060V Type 0
  • DeVilbiss HL6560V Type 0
  • DeVilbiss HL6560V Type 1
  • DeVilbiss HL7060V Type 0
  • DeVilbiss IR5E60VAD Type 0
  • DeVilbiss IR5E60VAD Type 1
  • DeVilbiss IR6E60VAD Type 0
  • DeVilbiss IRC5E60VAD Type 0
  • DeVilbiss IRC5E60VAD Type 1
  • DeVilbiss IRC6E60VAD Type 0
  • DeVilbiss IRL5G20 Type 0
  • DeVilbiss IRL5G20 Type 2
  • DeVilbiss IRL5G20 Type 3
  • DeVilbiss IRL6520 Type 0
  • DeVilbiss IRL6530 Type 0
  • DeVilbiss IRL6530 Type 1
  • DeVilbiss IRL6560V Type 0
  • DeVilbiss IRLC6520 Type 0
  • DeVilbiss IRLC6560V Type 0
  • DeVilbiss IRLC6560V Type 1
  • DeVilbiss L560V Type 1
  • DeVilbiss L560V Type 2
  • DeVilbiss L560V Type 3
  • DeVilbiss L5G20 Type 0
  • DeVilbiss L5G20 Type 2
  • DeVilbiss L5G20 Type 3
  • DeVilbiss L6520 Type 0
  • DeVilbiss L6530 Type 0
  • DeVilbiss L6530 Type 1
  • DeVilbiss L6560V Type 0
  • DeVilbiss L660V Type 0
  • DeVilbiss L660V Type 1
  • DeVilbiss L660V Type 2
  • DeVilbiss L660V Type 3
  • DeVilbiss PALC560V Type 1
  • DeVilbiss PALC6520 Type 0
  • DeVilbiss PALC6560V Type 0
  • DeVilbiss PALC6560V Type 1
  • DeVilbiss PALC7060V Type 0
  • DeVilbiss RA5E60VAD Type 0
  • DeVilbiss RA5E60VAD Type 1
  • DeVilbiss RA6E60VAD Type 0
  • DeVilbiss RAC5E60VAD Type 0
  • DeVilbiss RAC5E60VAD Type 1
  • DeVilbiss RAL5G20 Type 0
  • DeVilbiss RAL5G20 Type 2
  • DeVilbiss RAL5G20 Type 3
  • DeVilbiss RAL6520 Type 0
  • DeVilbiss RAL6560V Type 0
  • DeVilbiss RALC6520 Type 0
  • DeVilbiss RALC6560V Type 0
  • DeVilbiss RALC6560V Type 1
  • DeVilbiss SDS5G8D Type 0
  • DeVilbiss SDS5G8D Type 1

Porter Cable Air Compressors

  • Porter Cable C7501M Type 0
  • Porter Cable CPL55GH8W Type 0
  • Porter Cable CPLC7060V Type 0
  • Porter Cable CPLC7060V Type 1
  • Porter Cable CPLC7060V Type 2

Additional compatibility may exist for other brands and models manufactured using the same gasket kit. Always verify compatibility by confirming your unit’s model number and part diagram.

No Reviews Yet

Only registered users can write reviews. Please Sign in or create an account

Frequently Asked Questions

What is included in the 5140118-3 gasket kit?

The 5140118-3 gasket kit includes head, valve plate, and base gaskets, plug-52 mm, an oil seal, 2 vent filters, and 1 air filter.

Will this kit work on older needle bearing style pumps?

The 5140118-3 kit is for select oil-lubricated ball bearing style twin cylinder pumps. It is not intended to supply every gasket and seal needed for older crankshaft needle bearing pump versions.

What type of air compressor pump is this gasket kit used on?

The 5140118-3 gasket kit is used with compatible aluminum series twin cylinder oil-lubricated air compressor pumps. Verify your compressor model number and parts diagram before ordering.
