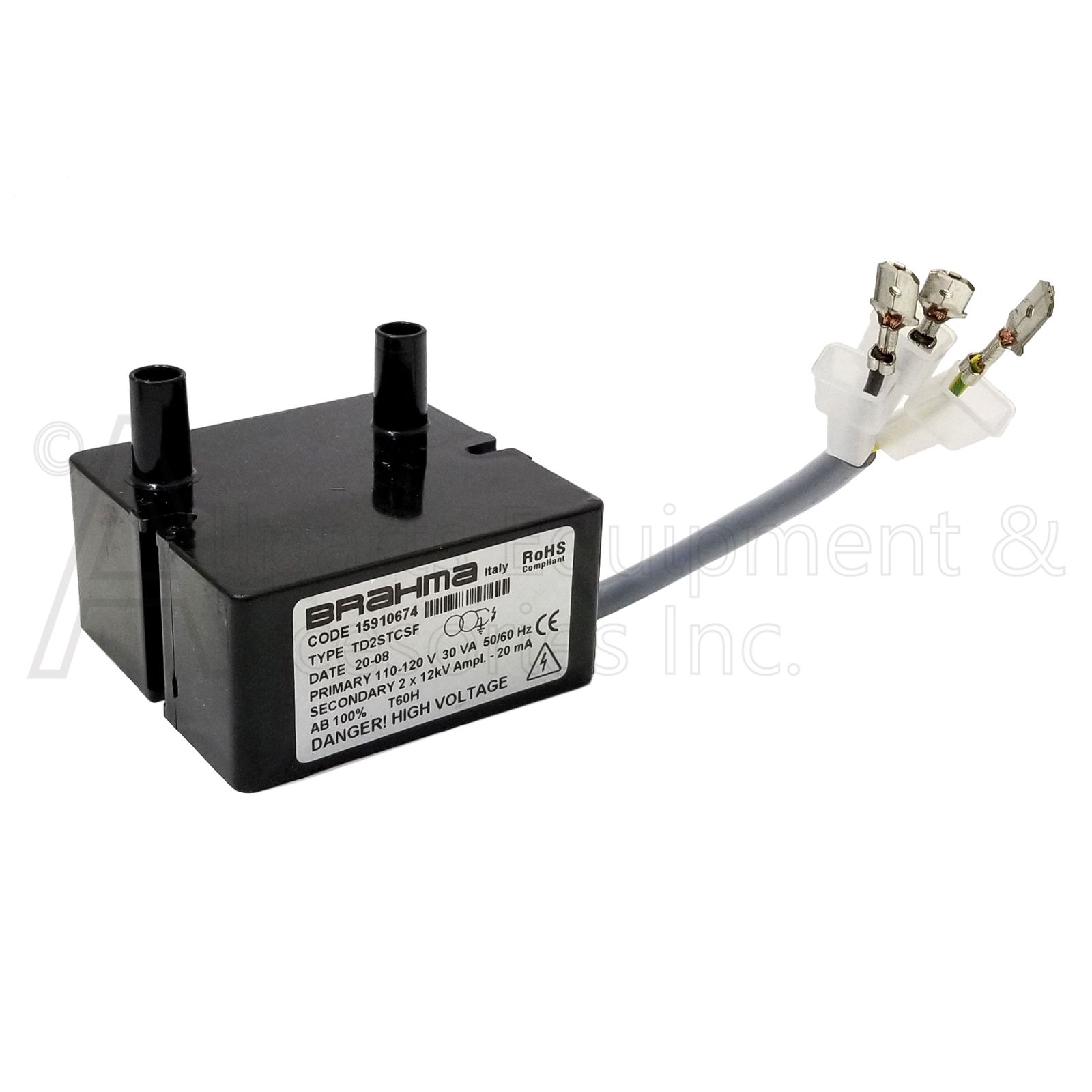

50319 TRANSFORMER BRAHMA TD2STCSF

50319 Transformer is a double pole BRAHMA transformer TYPE TD2STCFS, h,t,.

This transformer has a Primary Power Supply of 110-120v 30VA 50/60 Hz.
Secondary Power Supply 2x 12kV Ampl. -20 mA

Brahma transformers are suitable for gas and heavy oil burners in industrial applications.

The main features of these range are limited weight, high efficiency and ignition power, single pole or double pole high voltage output, various connection and fixing systems.

These transformers are used in different applications depending on their electric features.

50319 Transformer measures approximately

2 ^3/4" (width) x 2 ^7/8" (length) x 1 ^3/8" (height) inches
