445-4205 Exhaust Valve High and Low Pressure Cylinders 247,445,447 Compressor Pumps
In stock
Part Number
445-4205
$124.30

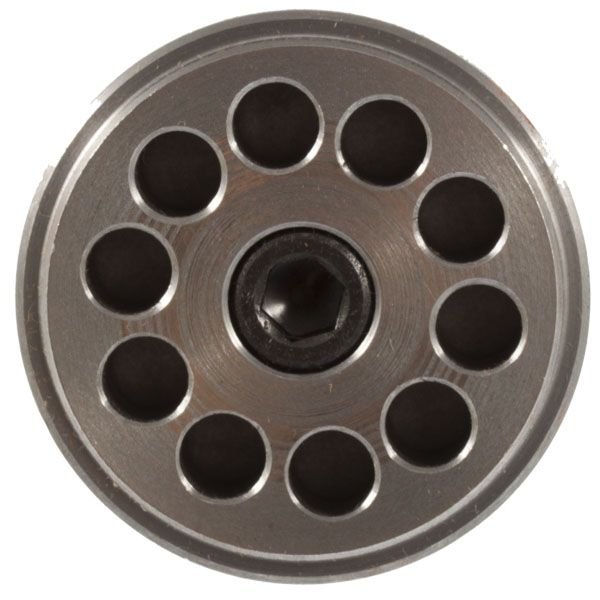

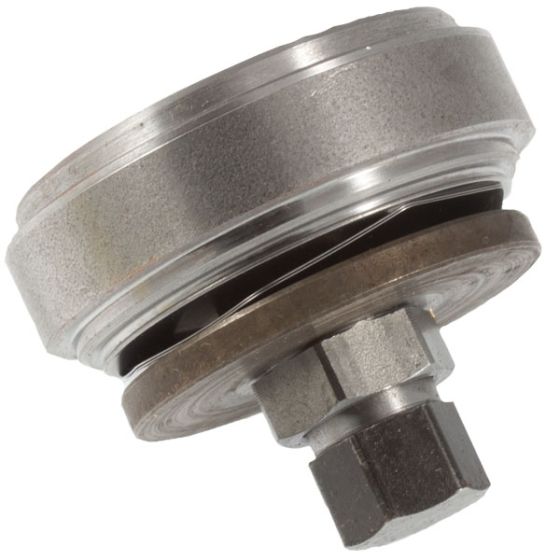

The 445-4205 Exhaust Valve Assembly is the complete intake valve for the DeVair, DV Systems, and DeVilbiss oil-lubricated air compressor pump.
This 445-4205 Exhaust Valve was used on the following DV Systems oil-lubricated two-stage air compressor pumps.
Air Compressor Pump Models:
247 Series Twin Cylinder Two Stage Oil Lubricated Air Compressor Pump
445 Series Four Cylinder Two Stage Oil Lubricated Air Compressor Pump
447 Series Four Cylinder Two Stage Oil Lubricated Air Compressor Pump
Service note:
On the 247 series air compressor pumps, there are 2 exhaust valves needed if both high-pressure cylinders are being repaired.
On the 445 and 447 series air compressor pumps, there are 4 exhaust valves needed if both high-pressure cylinders are being repaired.
This 445-4205 Exhaust Valve was used on the following DV Systems oil-lubricated two-stage air compressor pumps.
Air Compressor Pump Models:
247 Series Twin Cylinder Two Stage Oil Lubricated Air Compressor Pump
445 Series Four Cylinder Two Stage Oil Lubricated Air Compressor Pump
447 Series Four Cylinder Two Stage Oil Lubricated Air Compressor Pump
Service note:
On the 247 series air compressor pumps, there are 2 exhaust valves needed if both high-pressure cylinders are being repaired.
On the 445 and 447 series air compressor pumps, there are 4 exhaust valves needed if both high-pressure cylinders are being repaired.
When replacing or repairing the valves on the compressor we highly recommend to service one valve at a time.
This will prevent mixing up any of the intake or exhaust valves components and also prevent the valve from being mixed up during reassembly
Note the differences in the valve and placement of springs and disc between the 445-4205 Exhaust Valve and the 445-4217 Intake Valve
This will prevent mixing up any of the intake or exhaust valves components and also prevent the valve from being mixed up during reassembly
Note the differences in the valve and placement of springs and disc between the 445-4205 Exhaust Valve and the 445-4217 Intake Valve
