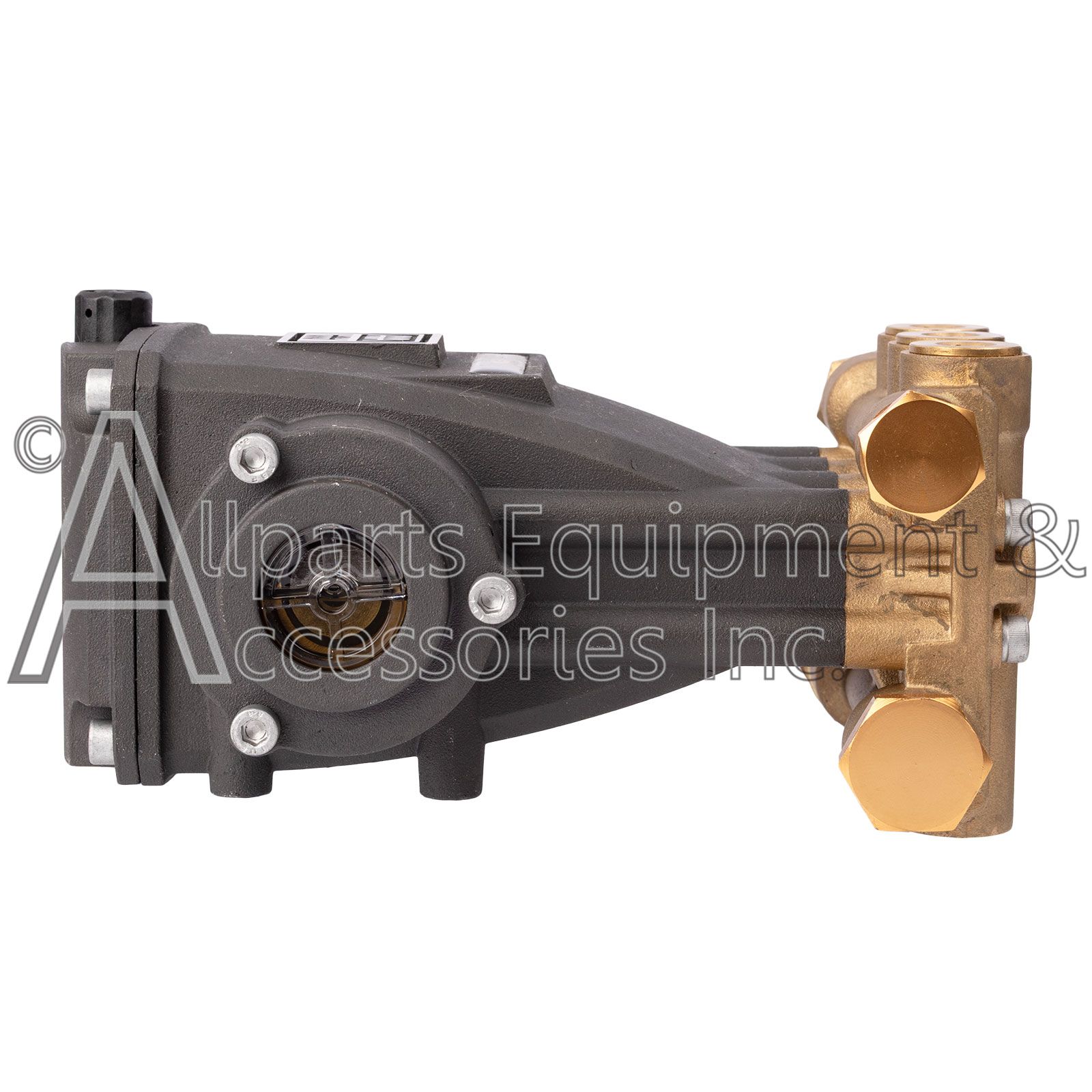

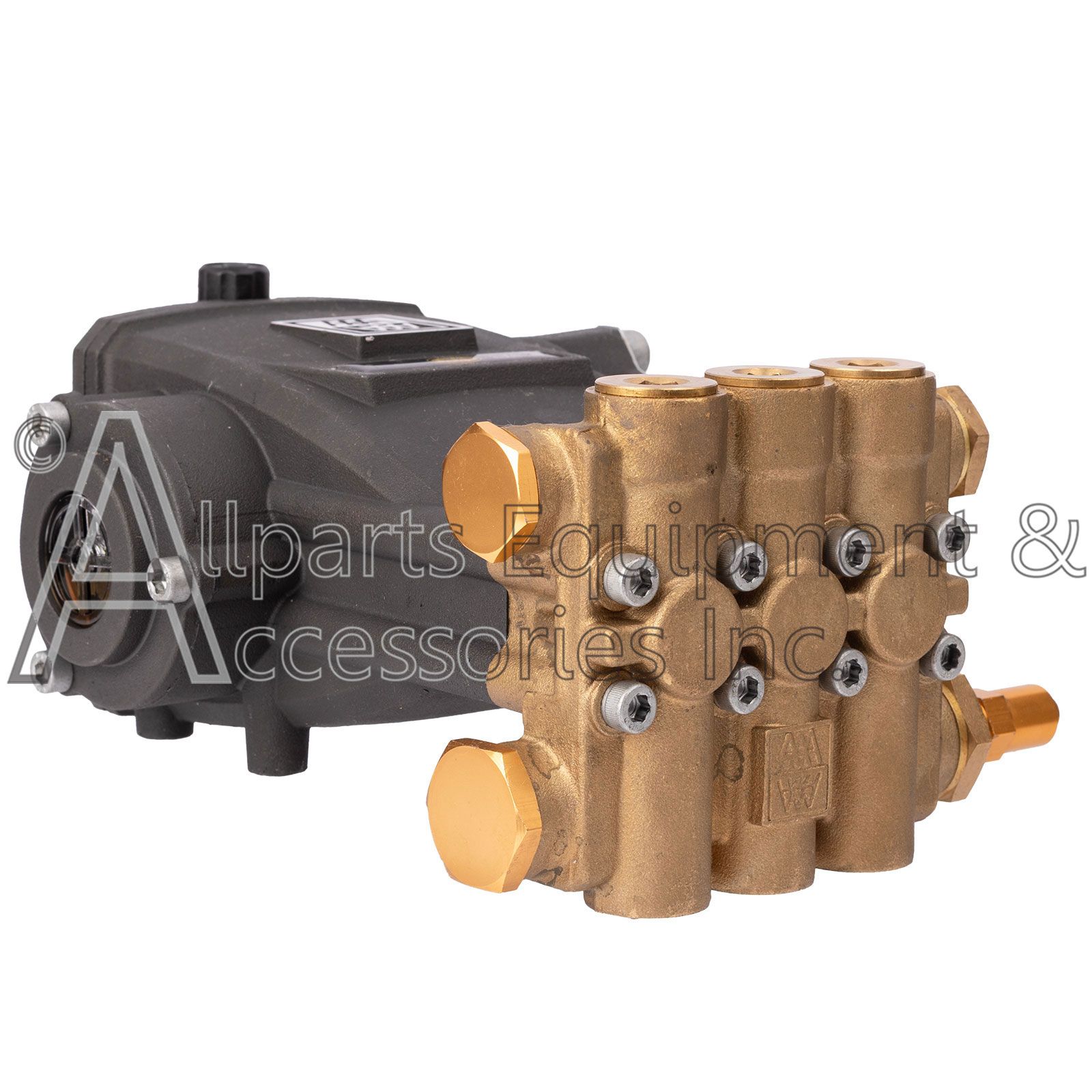

4300036 AAA C4 Series Triplex Plunger Pump with Belt Drive, 4400 PSI

The 4300036 is a C4 series triplex plunger pump from AAA. This pump is rated at 4400 PSI with a flow rate of 4.0 GPM, and features a belt drive. The 4300036 has a 24mm solid shaft and a motor speed of 3400 RPM.

These AAA pumps are specially designed to minimize engine load while delivering top performance and efficiency. The 4300036 uses oversized dual ball bearings to maximize stabilization and reduce friction wear.

The crankcase on the 4300036 is built from fully anodized die-cast aluminum that resists corrosion. The crankcase is also tightly sealed to prevent contamination and lubrication failure.

Features of the 4300036 Pump

• Anodized die-cast aluminum crankcase protects against corrosion.
• Dual oversized radial ball bearings reduce wear from friction.

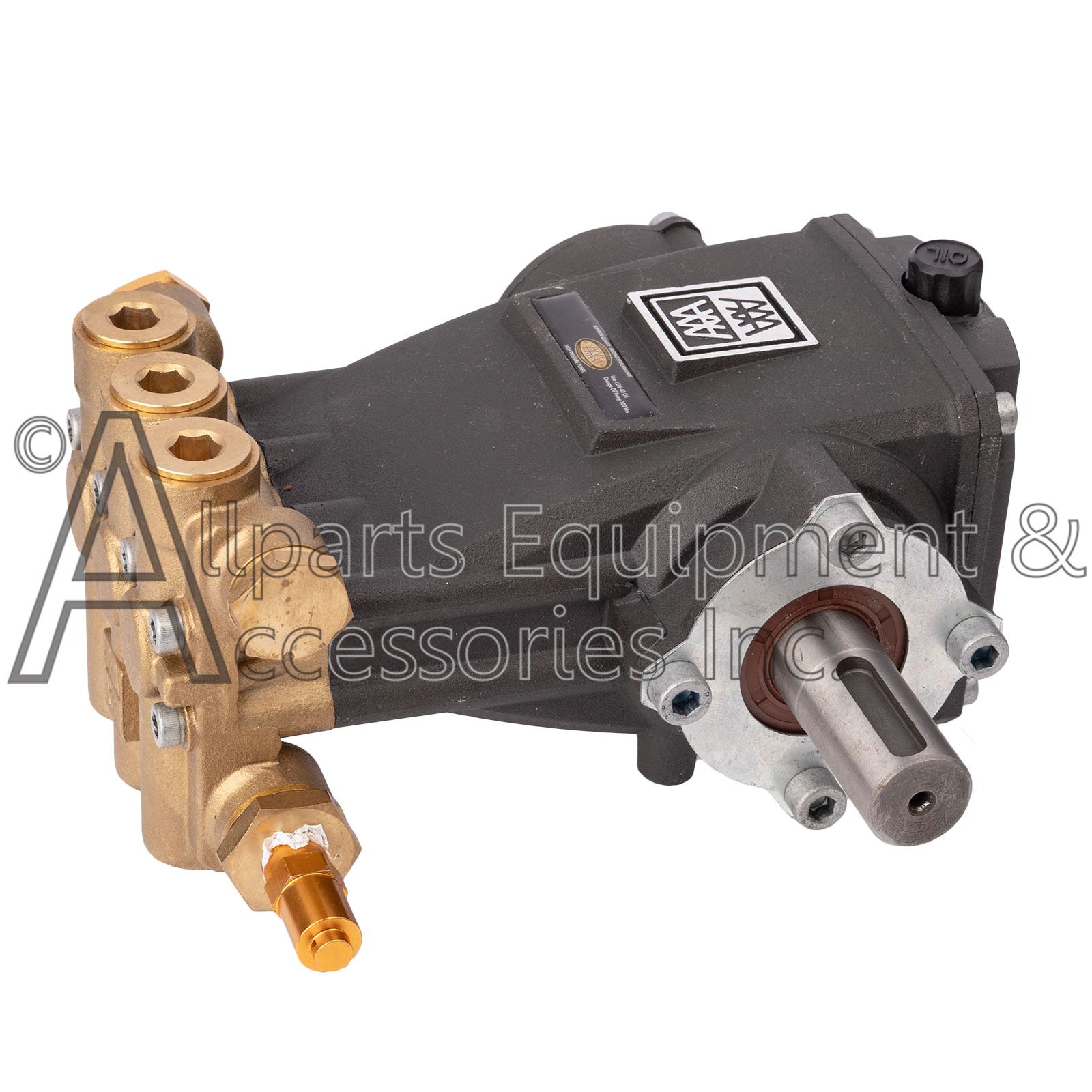

• Uses a 24mm keyed belt drive shaft.
• Crankcase seal prevents contamination and lubrication failure.
• Does not require a dipstick thanks to sight glass and advanced oil seals.

Specifications of the 4300036 Pump

Max. Pressure Rating: 4400 PSI

Max. Flow Rate: 4.0 GPM

Inlet Port Size: 1/2 in. NPT

Discharge Port Size: 1/2 in. NPT

Inlet Pressure Range: 10 - 60 PSI

Thermal Relief Port: 1/2 in. NPT

Shaft Diameter: Ø 24 mm

Key War: M8

Pump Oil Capacity: 12 fl. oz.
