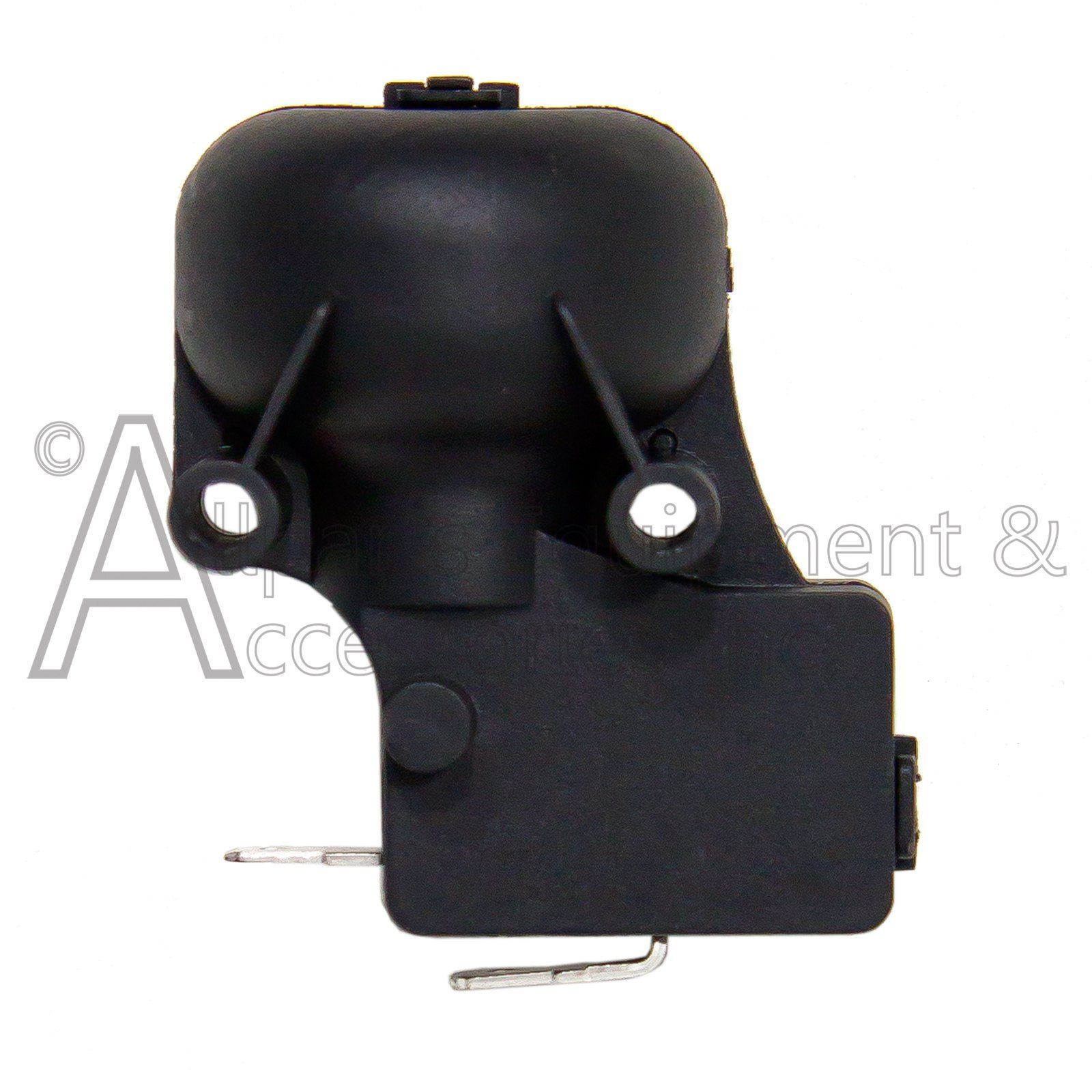

42116 TIP SWITCH MECHANICAL FITS MULTIPLE HEATERS

In stock
Part Number
42116
$5.45
Part Number: 42116
Compatible Brands: Mr Heater
Shipping Weight: 0.5 Lbs
The 42116 Tip Switch is a replacement mechanical switch tip for heaters manufacture Enerco Group and is used on various Portable tank top heaters under the Mr Hater and HeatStar brands.


This Tip switch has come in two different versions.

Current  42116 Switch Specifications could be one of the following two switch speciation's and either switch will work the same in multiple applications.

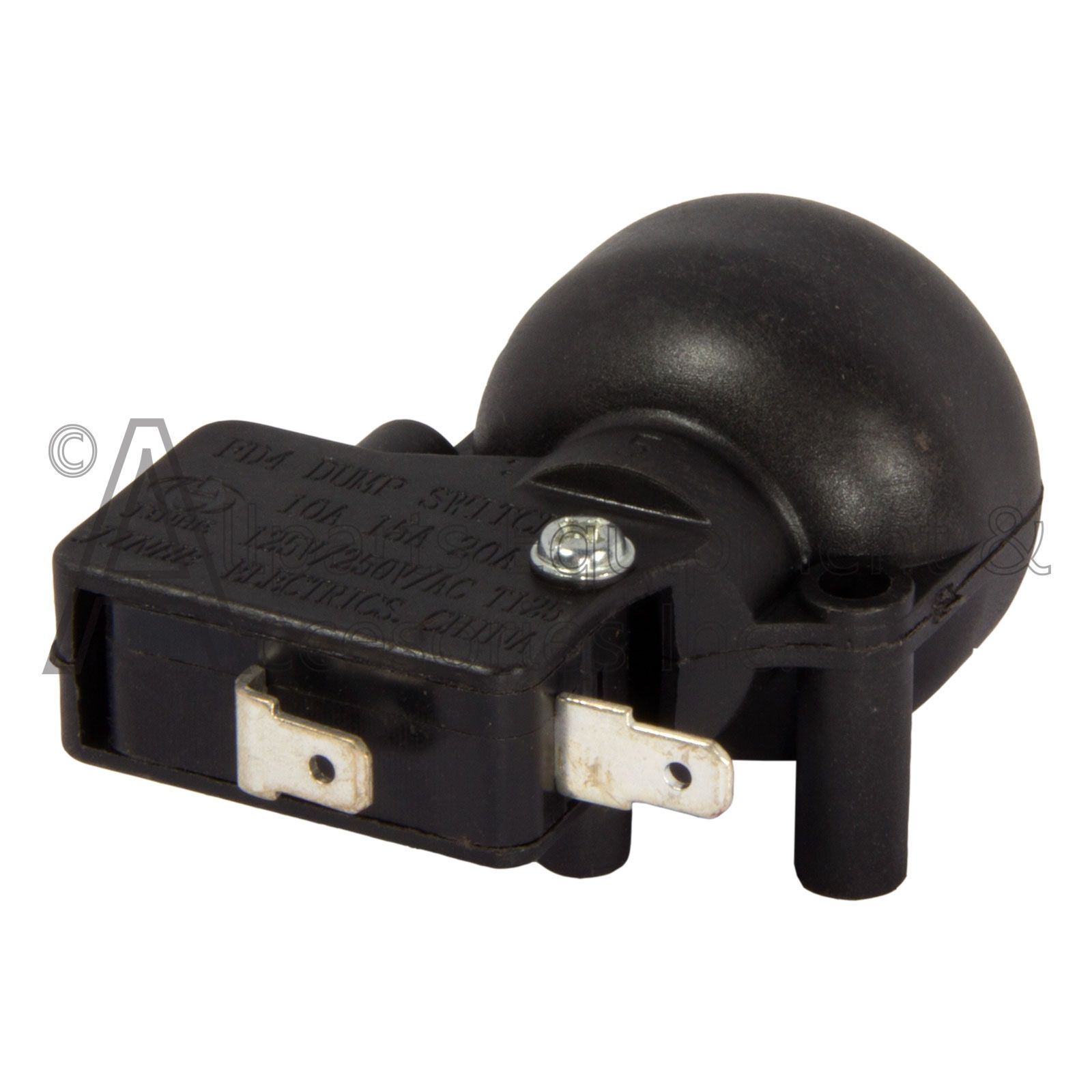

FD4 Dump Swicth
10A 15A 20A Cerified
125V / 250V / AC125
5 MM Reduced Tab

JINHE ELECTRICS SHINA


or

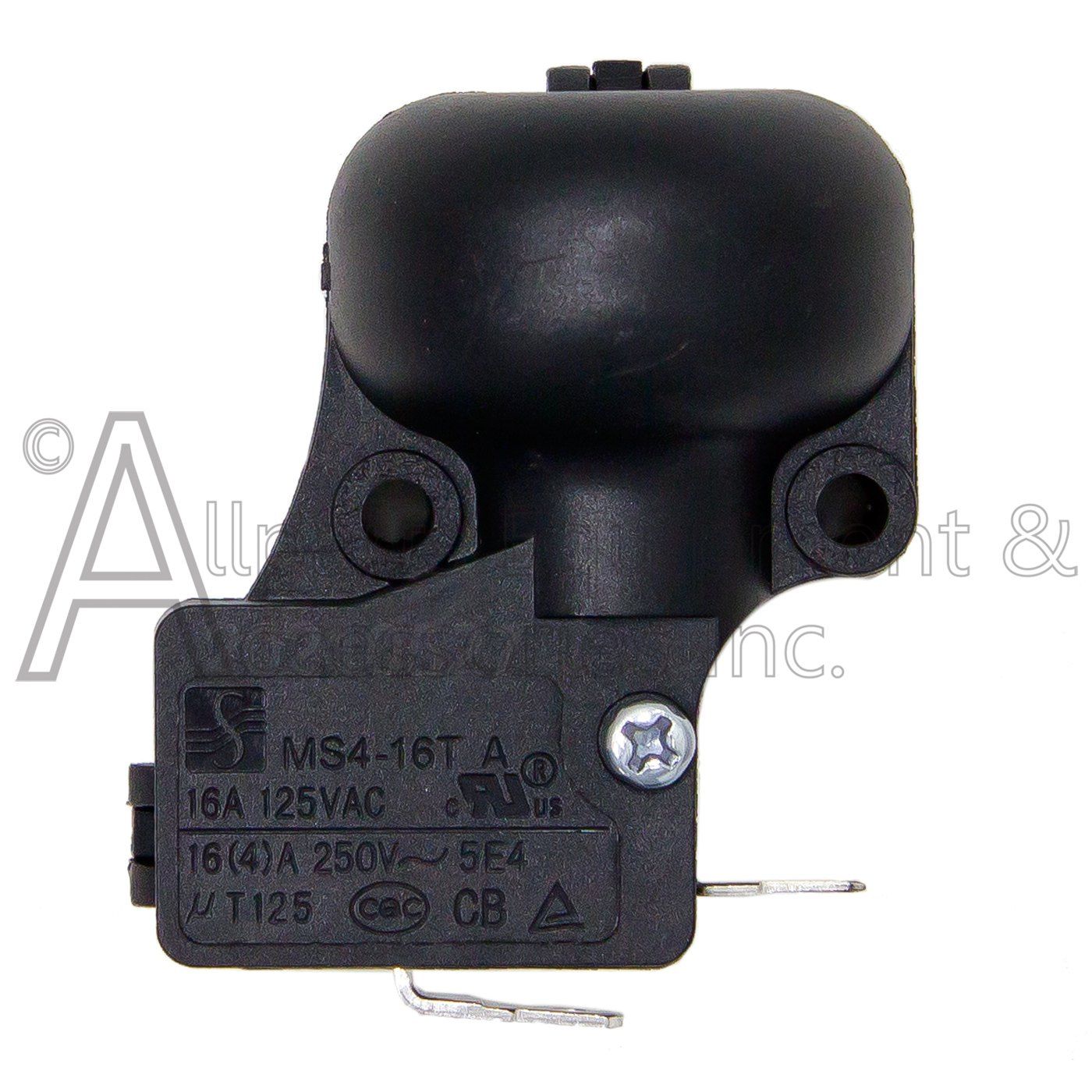

MS4-16A

16A 125VAC

16(4) A 250V 5E4
5 MM Reduced Tab




Service Note when Used for Millivolt Applications.
Amperage on these switches does not matter because they are used in a Thermocouple Millivolt Circuit of less than 1 Amp and are designed to open the millivolt circuit and stop operation on the heater in the unit exceed a specific angle.
