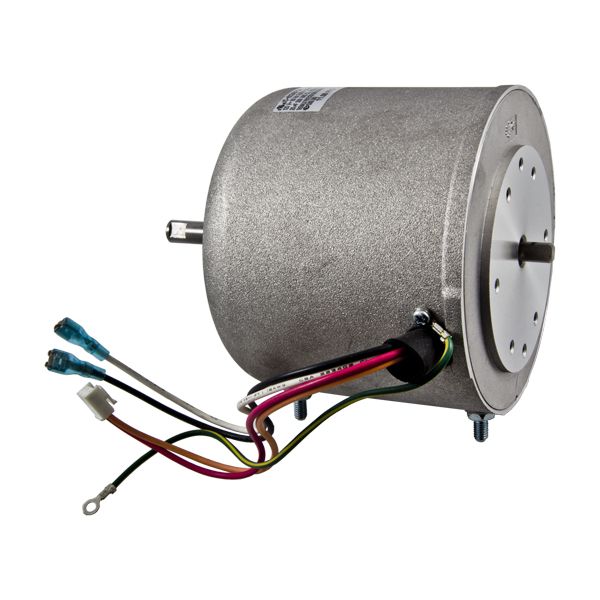

3970-0211-00 Motor for GHP and World Marketing 125K BTU Portable Heaters

The 3970-0211-00 Motor was used on various 125K BTU portable kerosene heaters that were manufactured by GHP Group Inc and World Marketing for forced air residential heaters and portable construction heater.

The 3970-0211-00 Motor had different versions with the following specifications:

IC-61240PSA
120V ~ 60Hz 2.60A 174W
20Uf 350 VAC CL B9SM-5
Thermally Protected Cont Sensata 120 C
Sung Shin

Or

YY120-120-174

120V ~ 60Hz 2.60A 174W
20Uf 350 VAC CL B
Thermally Protected AOM

Zhejiang Linix Motor Co LTD

The 3970-0211-00 Motor was used on the partial list of the following models:

GHP Group Inc. Dyna-Glo Delux Models:
KFA125DGD

GHP Group Inc. Dyna-Glo Pro Models:
KFA125H

GHP Group Inc. Thermoheat Models:
KFA125L

World Marketing of America Dyna-Glo Models:
DFA125C

World Marketing of America Duraheat Models:
KFA125DGD
KFA125H
KFA125L

Service Note:
Motor Service tags are a reference and manufactures of these motor may change with different production runs.
Always refer to your Owners manual for specific motor part numbers
