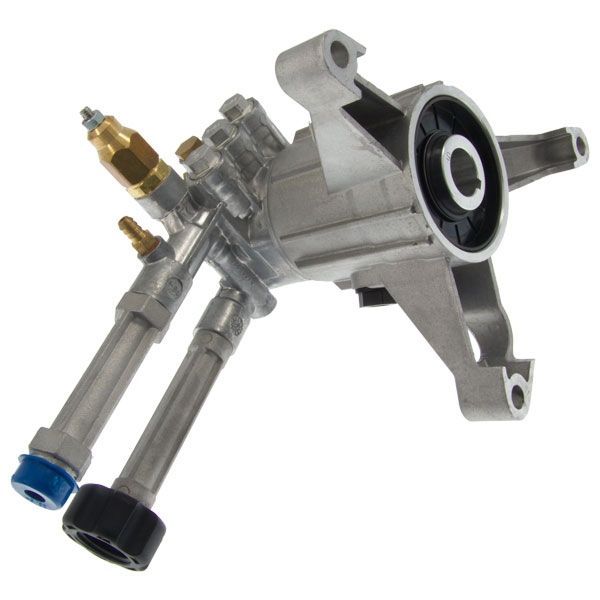

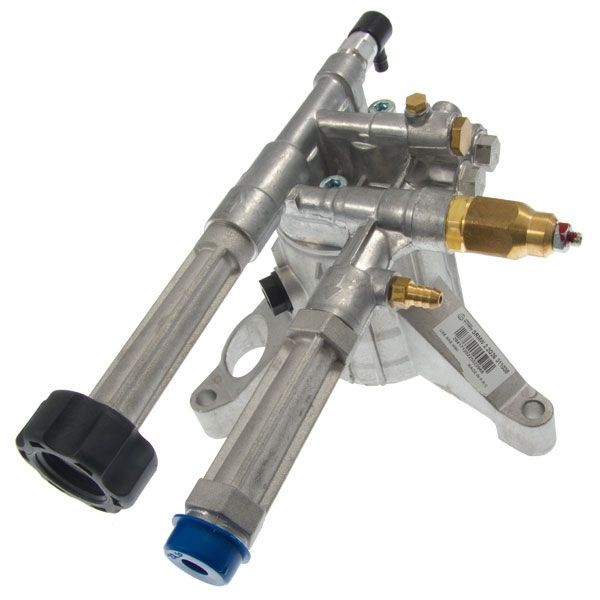

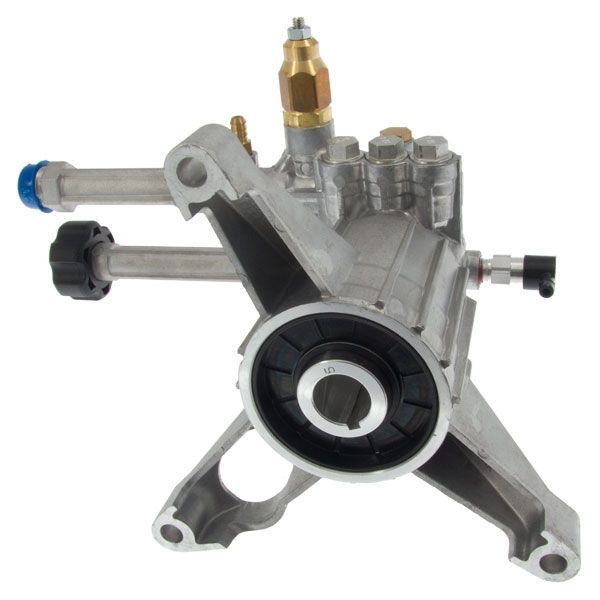

314441GS HIGH PRESSURE 3 LEG PUMP WITH ALUMINUM HEAD REAR FACING TUBES

In stock

Part Number

314441GS

$118.85

314441GS High Pressure pump is a consumers series oil filled axial cam pump used on various brands of pressure washer including Briggs & Stratton, Generac, Troy-Bilt, and various others.

The 314441GS plunger pump is rated for 2.3 GPM at 2700 PSI when operated at 3400 rpm.
Direct drive system provides connection to most vertical, 7/8" shaft engines with at least 4.3 HP.
The hollow shafted pump includes a three leg, vertical gas engine flange, a built-in pressure control valve, and chemical injection system.
This pump comes standard with a 22mm-14 twist connect outlet tube, and EZ start valve.

Note: If the Inlet and Outlet Tubes on your current pump face the same direction as the spark plug of the engine on the pressure washer you will need to order the 318644 pump.

Max GPM:	2.3
Max L/min:	8.3
Max PSI:	2700
Max Bar:	173
Power EBHP:	4.5
Bore DIA MM:	12
Stroke MM:	9.7
Crankshaft ID Stamp:	1
Weight LBS:	8.0

Service Note:
When the 314441GS Pump is used as a replacement pump on units requiring an auto idle you will need to transfer the auto idle cable and fitting from your old pump to the new pump.
