265-28-1 Valve Plate Gasket
265-28-1 Valve Plate Gasket

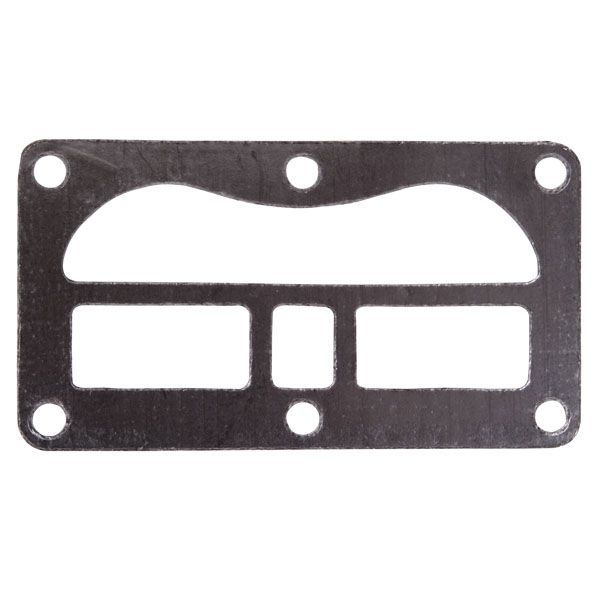

265-28-1 DeVilbiss Reinforced Graphoil Valve Plate Gasket for Air Compressor Pumps

In stock

$8.35

In stock

Part Number: 265-28-1
Model Number: Z-CAC-291-1
Compatible Brands: DeVilbiss
Shipping Weight: 0.25 Lbs

The 265-28-1 DeVilbiss valve plate gasket is a replacement gasket used between the air compressor valve plate assembly and the pump head assembly. This gasket creates a high-pressure seal between the valve plate and head on compatible air compressor pumps.

This 265-28-1 gasket is made from reinforced Graphoil graphite-based material with wire mesh reinforcement. The reinforced construction helps the gasket resist over-compression and brittleness in compatible pump assemblies where the original valve plate-to-head gasket is being replaced.

265-28-1 Valve Plate Gasket Specifications

  • Material: Reinforced Graphoil graphite-based gasket material
  • Reinforcement: Wire mesh reinforced construction
  • Seal Location: Between valve plate assembly and pump head assembly
  • Application Type: Air compressor pump head sealing
  • Torque Range: 25 to 30 ft-lbs. unless otherwise specified by the compressor manual
  • Maximum Final Torque Reference: 32.5 ft-lbs.

265-28-1 Valve Plate Gasket Key Features

  • Replacement valve plate to head gasket for compatible air compressor pumps
  • Reinforced graphite-based construction for high-pressure pump head sealing
  • Wire mesh reinforcement helps reduce over-compression compared with non-reinforced gasket designs
  • Used where the compressor parts diagram specifies the 265-28-1 valve plate gasket
  • Helps seal the joint between the valve plate assembly and compressor head assembly
  • Compatible with select DeVilbiss, Craftsman, and Porter Cable air compressor models

Need Help? Call us:

1-269-685-4123

For availability, please text:

1-269-447-0412

Compatible Models

The 265-28-1 valve plate gasket is known to properly fit and function with the following partial list of air compressors:

DeVilbiss Air Compressors

  • DeVilbiss 66-750 Type 0
  • DeVilbiss AC-0171
  • DeVilbiss AC-0171-1
  • DeVilbiss AC-0336
  • DeVilbiss AC-0336-1
  • DeVilbiss ACBL320 Type 0
  • DeVilbiss ACBL320 Type 2
  • DeVilbiss ACBL320 Type 3
  • DeVilbiss ACBL320 Type 4
  • DeVilbiss ACBL520 Type 0
  • DeVilbiss ACBL520 Type 1
  • DeVilbiss ACBL530VP Type 2
  • DeVilbiss ACBL530VP Type 3
  • DeVilbiss ACBL530VP Type 4
  • DeVilbiss ACBL5G20 Type 0
  • DeVilbiss ACBL5G20 Type 2
  • DeVilbiss ACBL5G20 Type 3
  • DeVilbiss ACBL5G20HP Type 0
  • DeVilbiss ACBL660V Type 0
  • DeVilbiss ACBL660V Type 1
  • DeVilbiss ACBL760V Type 0
  • DeVilbiss ACSL530RVP Type 3
  • DeVilbiss AFL2512 Type 0
  • DeVilbiss AFL2512 Type 1
  • DeVilbiss AFL2520 Type 0
  • DeVilbiss AFL2520 Type 1
  • DeVilbiss AFL320 Type 0
  • DeVilbiss AFL320 Type 1
  • DeVilbiss AFL520 Type 0
  • DeVilbiss AFL520 Type 1
  • DeVilbiss AFL560V Type 1
  • DeVilbiss AFL560V Type 2
  • DeVilbiss AFL560V Type 3
  • DeVilbiss AFL5G20 Type 0
  • DeVilbiss AFL660V Type 0
  • DeVilbiss AFL660V Type 1
  • DeVilbiss ATCL4520 Type 0
  • DeVilbiss ATCL4520 Type 2
  • DeVilbiss BACL4520 Type 0
  • DeVilbiss BACL4520 Type 2
  • DeVilbiss CAC-4029
  • DeVilbiss CAC-4029-1
  • DeVilbiss D22623
  • DeVilbiss D22624
  • DeVilbiss D22625
  • DeVilbiss D22629
  • DeVilbiss DAC-4026
  • DeVilbiss DAC-4026-1
  • DeVilbiss EXL5020 Type 0
  • DeVilbiss EXL6560V Type 0
  • DeVilbiss EXLC5G20 Type 0
  • DeVilbiss EXLC7060V Type 0
  • DeVilbiss HL6560V Type 0
  • DeVilbiss HL6560V Type 1
  • DeVilbiss HL7060V Type 0
  • DeVilbiss IMCL4520 Type 0
  • DeVilbiss IMCL4520 Type 2
  • DeVilbiss IR25E20AD Type 0
  • DeVilbiss IR35E20AD Type 1
  • DeVilbiss IR35E20AD Type 2
  • DeVilbiss IR4E20AD Type 0
  • DeVilbiss IR5E20AD Type 0
  • DeVilbiss IR5E20AD Type 1
  • DeVilbiss IR5E20AD Type 2
  • DeVilbiss IR5E30AD Type 0
  • DeVilbiss IR5E30AD Type 1
  • DeVilbiss IR5E30AD Type 2
  • DeVilbiss IR5E60VAD Type 0
  • DeVilbiss IR5E60VAD Type 1
  • DeVilbiss IR5G20AD Type 0
  • DeVilbiss IR6E60VAD Type 0
  • DeVilbiss IRC4E20AD Type 0
  • DeVilbiss IRC4E20AD Type 1
  • DeVilbiss IRC5E20AD Type 0
  • DeVilbiss IRC5E20AD Type 1
  • DeVilbiss IRC5E60VAD Type 0
  • DeVilbiss IRC5E60VAD Type 1
  • DeVilbiss IRC6E60VAD Type 0
  • DeVilbiss IRL5020 Type 0
  • DeVilbiss IRL5G20 Type 0
  • DeVilbiss IRL5G20 Type 2
  • DeVilbiss IRL5G20 Type 3
  • DeVilbiss IRL6520 Type 0
  • DeVilbiss IRL6530 Type 0
  • DeVilbiss IRL6530 Type 1
  • DeVilbiss IRL6560V Type 0
  • DeVilbiss IRLC5020 Type 0
  • DeVilbiss IRLC6520 Type 0
  • DeVilbiss IRLC6560V Type 0
  • DeVilbiss IRLC6560V Type 1
  • DeVilbiss L2512 Type 0
  • DeVilbiss L2512 Type 1
  • DeVilbiss L2520 Type 0
  • DeVilbiss L2520 Type 1
  • DeVilbiss L320 Type 0
  • DeVilbiss L320 Type 1
  • DeVilbiss L320 Type 2
  • DeVilbiss L320 Type 3
  • DeVilbiss L320 Type 4
  • DeVilbiss L420 Type 0
  • DeVilbiss L5020 Type 0
  • DeVilbiss L520 Type 0
  • DeVilbiss L520 Type 1
  • DeVilbiss L520 Type 2
  • DeVilbiss L530 Type 0
  • DeVilbiss L530 Type 1
  • DeVilbiss L560V Type 0
  • DeVilbiss L560V Type 1
  • DeVilbiss L560V Type 2
  • DeVilbiss L560V Type 3
  • DeVilbiss L5G20 Type 0
  • DeVilbiss L5G20 Type 2
  • DeVilbiss L5G20 Type 3
  • DeVilbiss L6520 Type 0
  • DeVilbiss L6530 Type 0
  • DeVilbiss L6530 Type 1
  • DeVilbiss L6560V Type 0
  • DeVilbiss L660V Type 0
  • DeVilbiss L660V Type 1
  • DeVilbiss L660V Type 2
  • DeVilbiss L660V Type 3
  • DeVilbiss N076027
  • DeVilbiss PALC520 Type 0
  • DeVilbiss PALC520 Type 1
  • DeVilbiss PALC560V Type 1
  • DeVilbiss PALC6520 Type 0
  • DeVilbiss PALC6560V Type 0
  • DeVilbiss PALC6560V Type 1
  • DeVilbiss PALC7060V Type 0
  • DeVilbiss PRL5020 Type 0
  • DeVilbiss PRLC5020 Type 0
  • DeVilbiss RA4E20AD Type 0
  • DeVilbiss RA5E20AD Type 0
  • DeVilbiss RA5E20AD Type 1
  • DeVilbiss RA5E20AD Type 2
  • DeVilbiss RA5E60VAD Type 0
  • DeVilbiss RA5E60VAD Type 1
  • DeVilbiss RA6E60VAD Type 0
  • DeVilbiss RAC5E20AD Type 0
  • DeVilbiss RAC5E20AD Type 1
  • DeVilbiss RAC5E60VAD Type 0
  • DeVilbiss RAC5E60VAD Type 1
  • DeVilbiss RAL5020 Type 0
  • DeVilbiss RAL5G20 Type 0
  • DeVilbiss RAL5G20 Type 2
  • DeVilbiss RAL5G20 Type 3
  • DeVilbiss RAL6520 Type 0
  • DeVilbiss RAL6560V Type 0
  • DeVilbiss RALC5020 Type 0
  • DeVilbiss RALC6520 Type 0
  • DeVilbiss RALC6560V Type 0
  • DeVilbiss RALC6560V Type 1
  • DeVilbiss SDS2E8DCD Type 0
  • DeVilbiss SDS2E8DCD Type 1
  • DeVilbiss SDS5G8D Type 0
  • DeVilbiss SDS5G8D Type 1
  • DeVilbiss Z-D22629

Craftsman Air Compressors

  • Craftsman 1000003437
  • Craftsman 919-15725 Type 1
  • Craftsman 919-15726 Type 0
  • Craftsman 919-18416 Type 1
  • Craftsman 919-18419 Type 0
  • Craftsman 919-18419 Type 1
  • Craftsman 919-18419 Type 2
  • Craftsman 919-18543 Type 1
  • Craftsman 919-18695 Type 1
  • Craftsman 919-19540 Type 0
  • Craftsman 919-19541 Type 0
  • Craftsman 919-19541 Type 1
  • Craftsman 919-19541 Type 2
  • Craftsman 919-19541 Type 3
  • Craftsman 919-72728 Type 0
  • Craftsman 919-72728 Type 2
  • Craftsman 919-72800 Type 0
  • Craftsman 919-72800 Type 1

Porter Cable Air Compressors

  • Porter Cable C5510 Type 0
  • Porter Cable C7501M Type 0
  • Porter Cable CPL55GH8W Type 0
  • Porter Cable CPL6025 Type 1
  • Porter Cable CPLC7060V Type 0
  • Porter Cable CPLC7060V Type 1
  • Porter Cable CPLC7060V Type 2

Additional compatibility may exist for other brands and models manufactured using the same valve plate gasket. Always verify compatibility by confirming your unit’s model number and part diagram.
