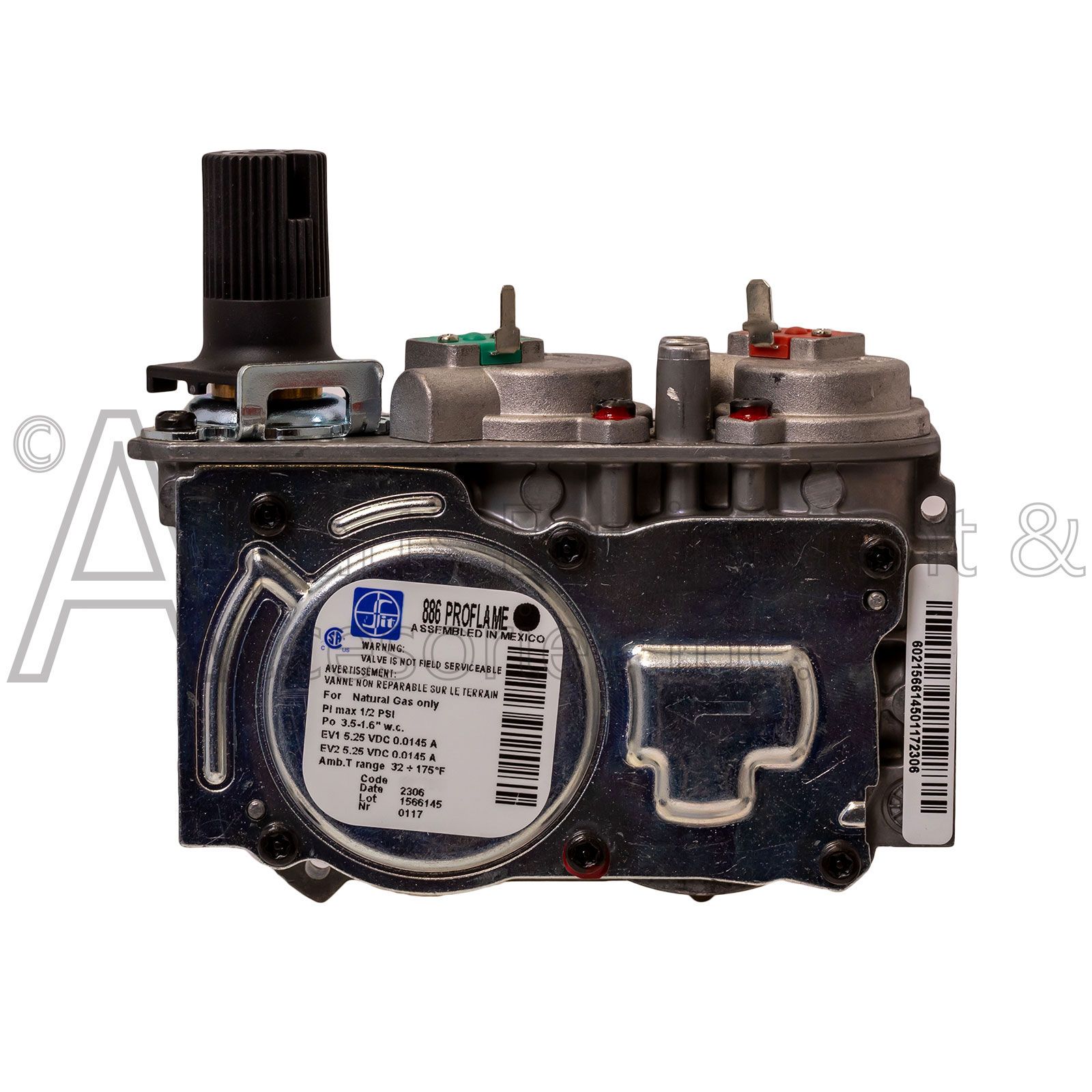

250-01422 Natural Gas Proflame Gas Valve with Manually Adjustable Hi/Lo Knob

The 250-01422 is a natural gas Proflame gas valve, designed for use with Travis Industries fireplaces, gas stoves, and other natural gas hearth appliances.

This natural gas valve is designed for use with natural gas heating appliances that utilize an intermittent pilot ignition and a back-up battery.

The 250-01422 has a manually adjustable hi/lo flame adjustment knob with a range of 1.6 to 3.5.

Specifications of the 250-01422 Proflame Valve

Gas Type: Natural Gas

Max. Capacity: 60,000 BTU/Hr. @ 1 in. W.C

Max. Pressure Setting: 3.5 in. W.C ± 0.3

Min. Pressure Setting: 1.6 in. W.C ± 0.4

Max. Inlet Pressure: 1/2 PSIG

Ambient Operating Temperature: 35° - 175°F

Valve Connection for Pilot: 7/16 UNS x 1/4 in.

Inlet Valve Size: 3/8 in. NPT

Outlet Valve Size: 3/8 in. NPT

Electrical Specs:

Voltage: 5.25 V DC

Amps: 0.0145 A

Coil Resistance: 362 Ω ± 10% @ 68°F
