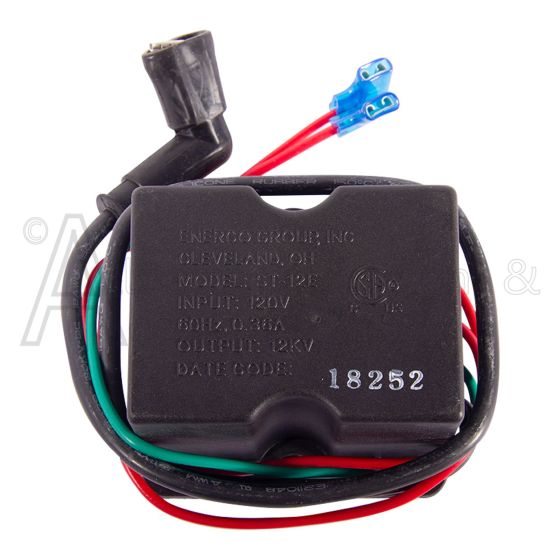

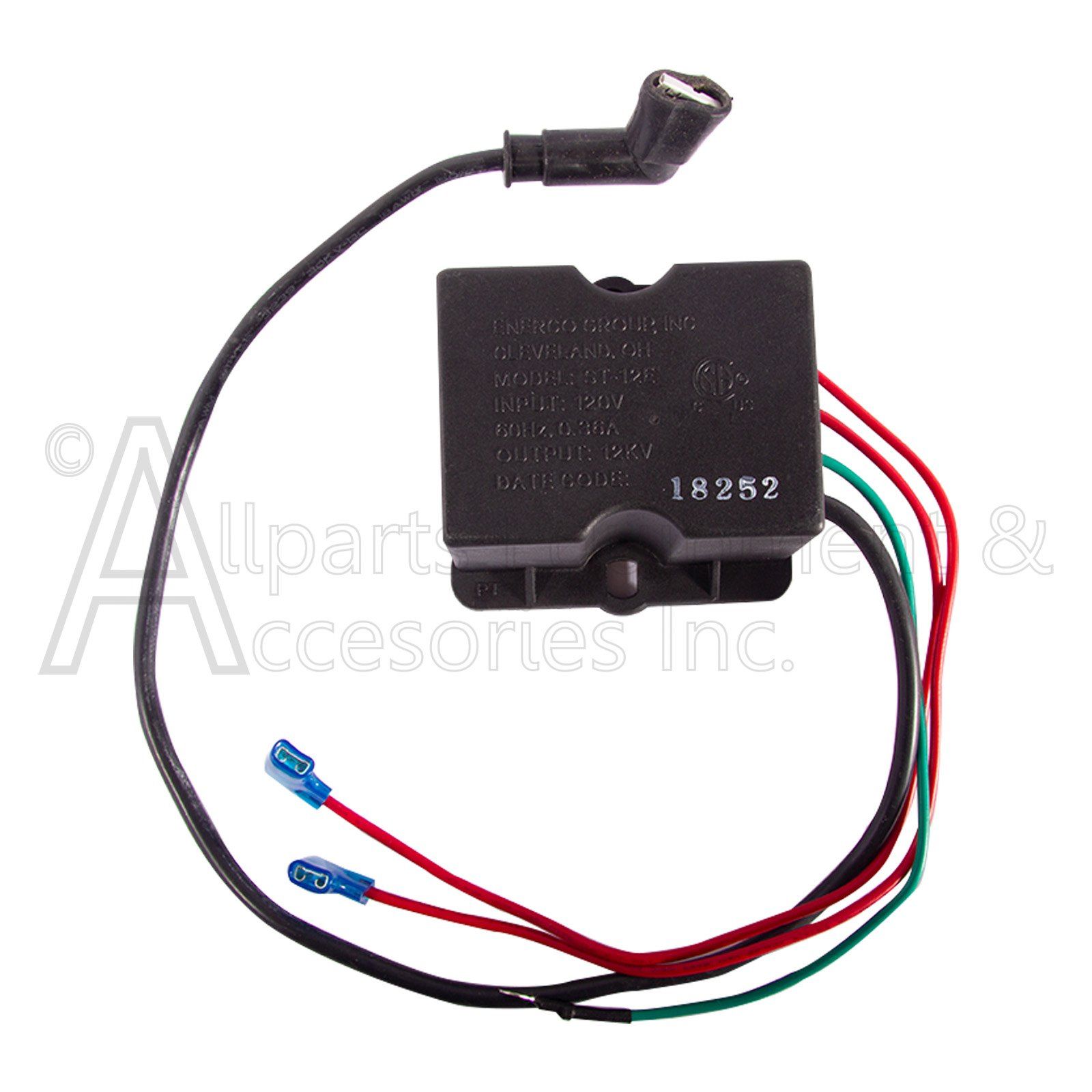

22142 Ignitor Assembly ST-12E for Kerosene and Diesel Heaters

The 22142 is an ignitor assembly (model ST-12E) from Enerco for DeWalt, Mr. Heater, and Heatstar kerosene heaters. Ignitor assembly 22142 is used in 50K, 75K, 135K, and 185K BTU heaters.

Specifications of the 22142 Ignitor Assembly

• Input: 120 Volts, 60Hz. , 0.36A.
• Output: 12 KV.

• Primary Lead: 1 Black 21 inch lead with 1/4 Female push on connector.
• Power Leads: 2 Red 14 inch leads with 1/4 Female push on connectors
• Ground Lead: 1 Green 14 inch lead with 3/16 round ground terminal.

Dimensions

Height: 2.24 in.

Width: 3.0 in.

Depth: 2.44 in.

Base Mounts Center to Center: 2.68 in.

Height at Center Divots: 1.72 in.
