2103-011 Pilot Assembly for HHT Fireplaces | Liquid Propane Gas | Standing Pilot
Out Of Stock
Part Number
2103-011
$101.28
2103-011 is a liquid propane pilot assembly that's designed to fit several HHT fireplace brands, including Quadra-Fire, Heat N Glo, Heatilator, and others.
Refer to the user's manual for your fireplace or gas stove to ensure that the 2103-011 LPG pilot assembly is compatible.

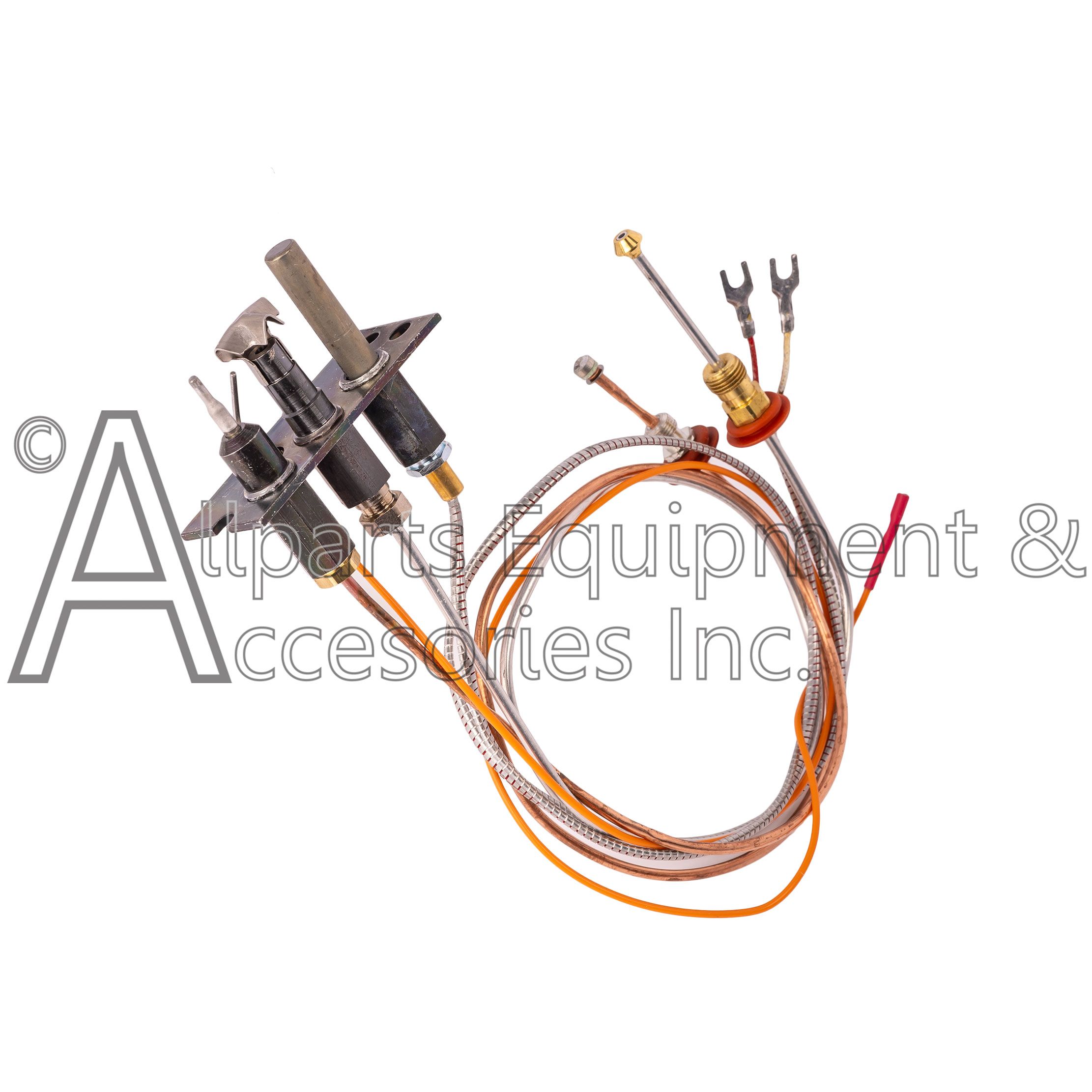

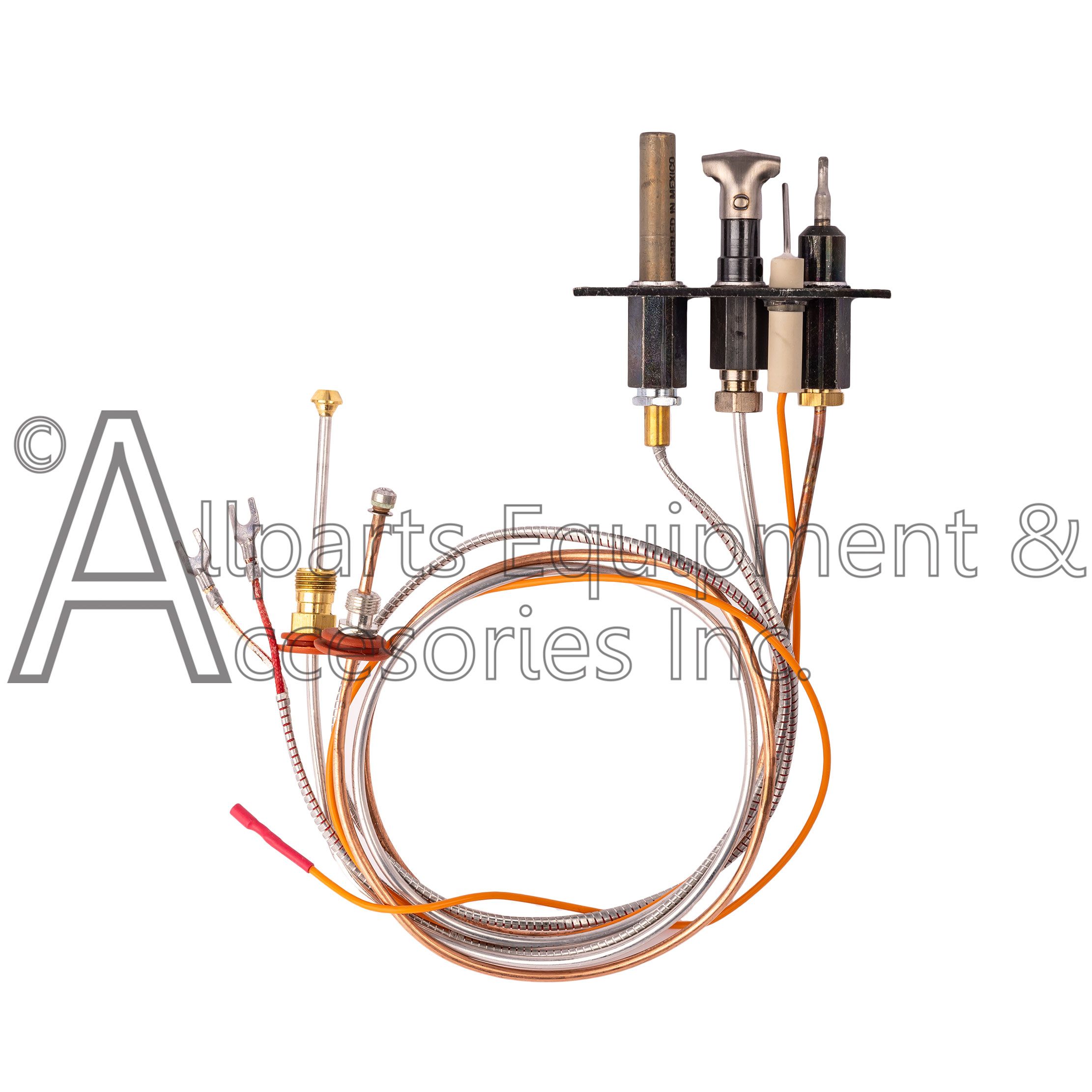

The 2103-011 pilot assembly is made up of a thermocouple, thermopile, pilot bracket, electrode, and a pilot hood.
This liquid propane pilot assembly is an OEM replacement part for Heat & Glo fireplaces. 2103-011 is a replacement for the 530-511A and 571-511A pilot assemblies.
The following partial list of HHT fireplace are known to be compatible with the 2103-011 LPG standing pilot assembly. Please note that 2103-011 is only compatible with fireplaces that use a standing pilot and will not work with DSI, IPI, or HSI fireplaces.
Quadra-Fire Fireplaces
- QV32B / QV32B-A / QV36B / QV36B-A (After serial # 0021080519)
- QV36DC-A
- QVI30S
- QVI35
- QVI-35FB-S
Heatilator Fireplaces
- ADI60S
- ADVR3428 / ADVT3428
- EDV3633
- GDFL4136
- GDST4336
- NB3630 / NB3933 / NB4842 (After serial # GA1587915)
- NBV3630
- NBV3933
- NBV4236
- NBV4842
- ND36030 / ND3630L / ND3630M / ND3933 / ND4236 / ND4842 (After serial # GA1587914)
Heatilator Gas Log Sets
- CFL-18LP-C
- CFL-24LP-C
- CFL-30LP-C
- ST-CFL-24LP-B
Heat N Glo Fireplaces
- 6000C
- 6000G
- 6000GBV
- 8000C-LP
- CFX-IN
- CFX-ZC
- FB Grand-S
- FB-IN-S
- FB-ZC-S
- Grand XTS
- HV-CDN
- Vienna I / Vienna II
- GRAND-I35-SP
- HNGINS-30-SP
- HNGINS-35-SP
