20010563 Natural Gas Control Valve for Majestic and Vermont Castings
In stock
Part Number
20010563
$179.90

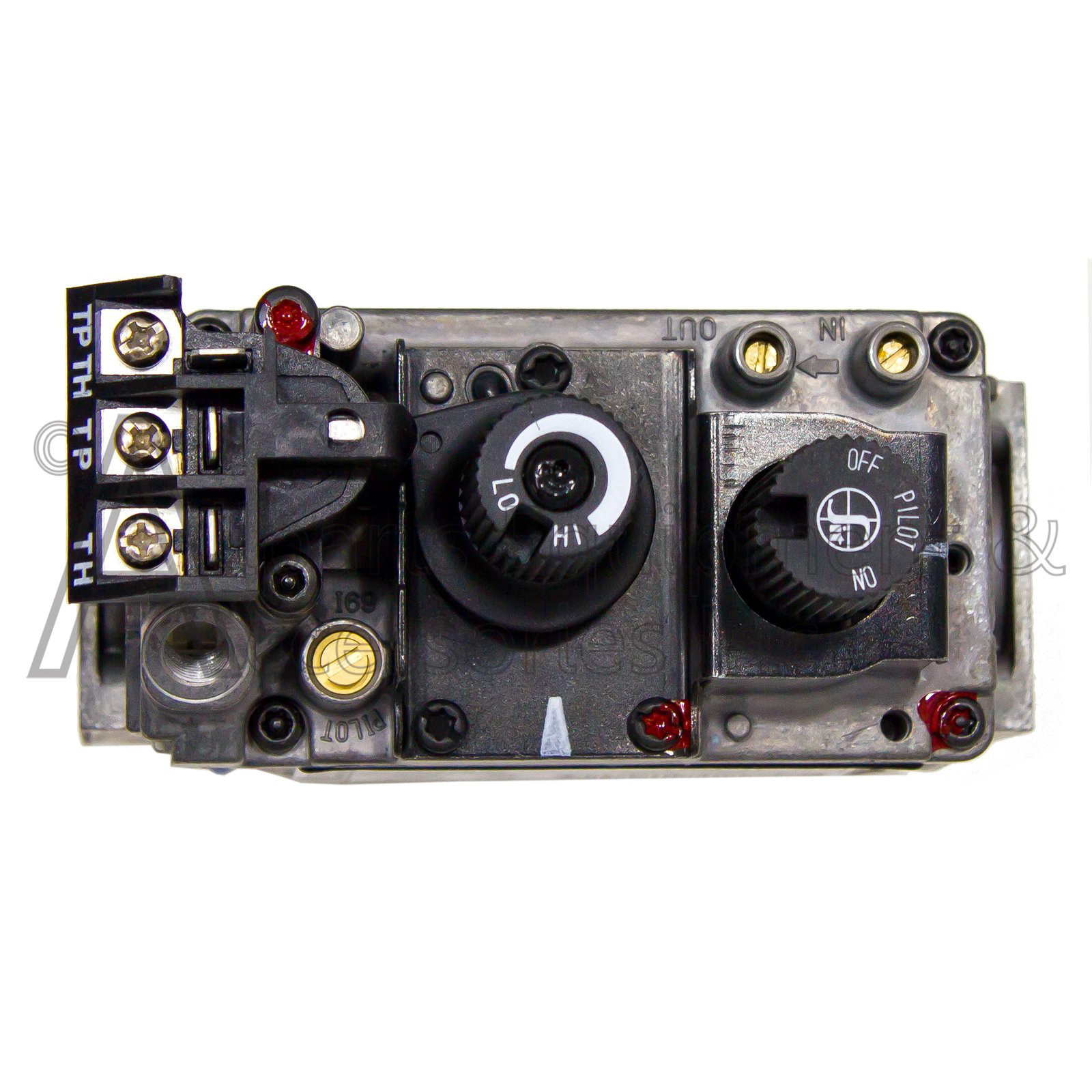

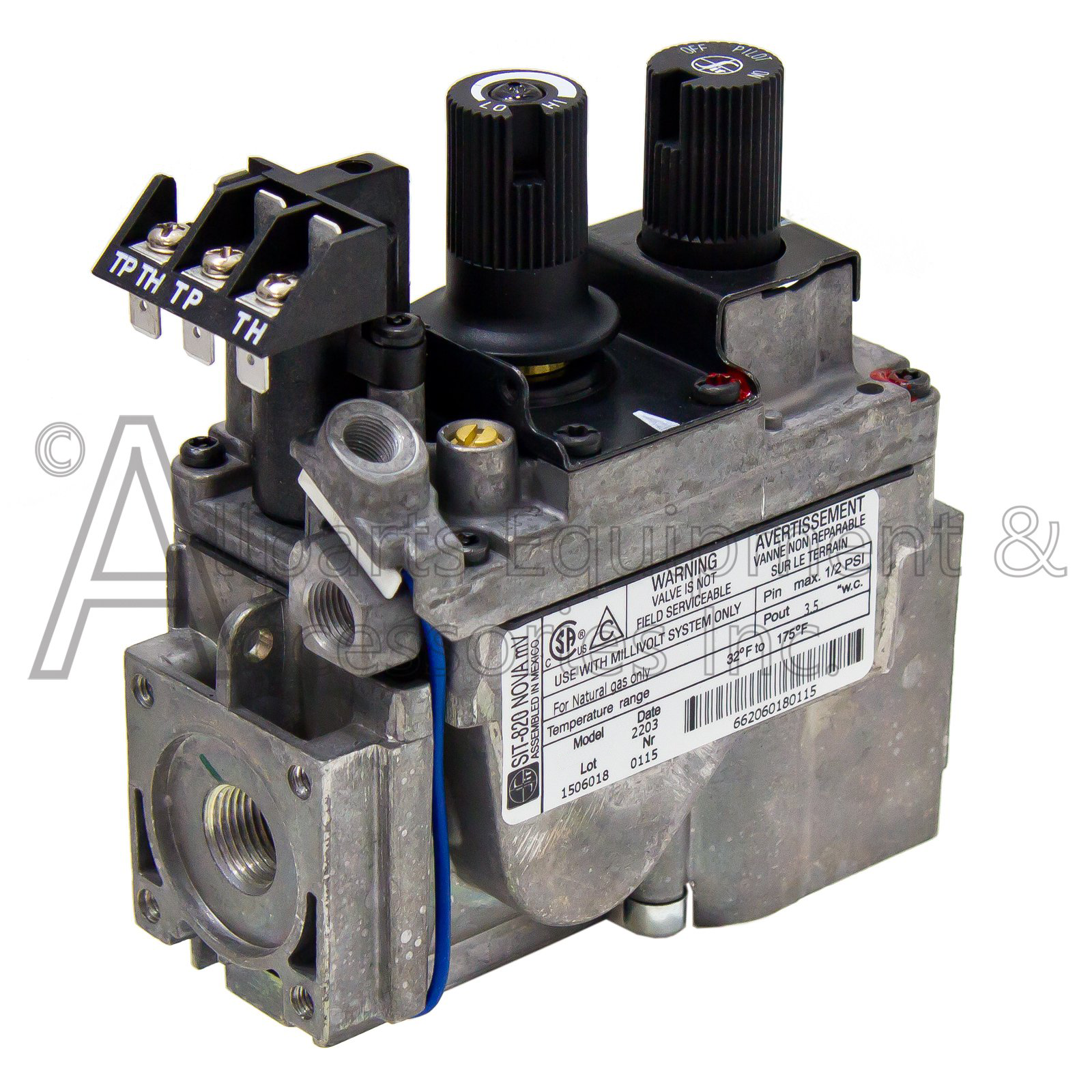

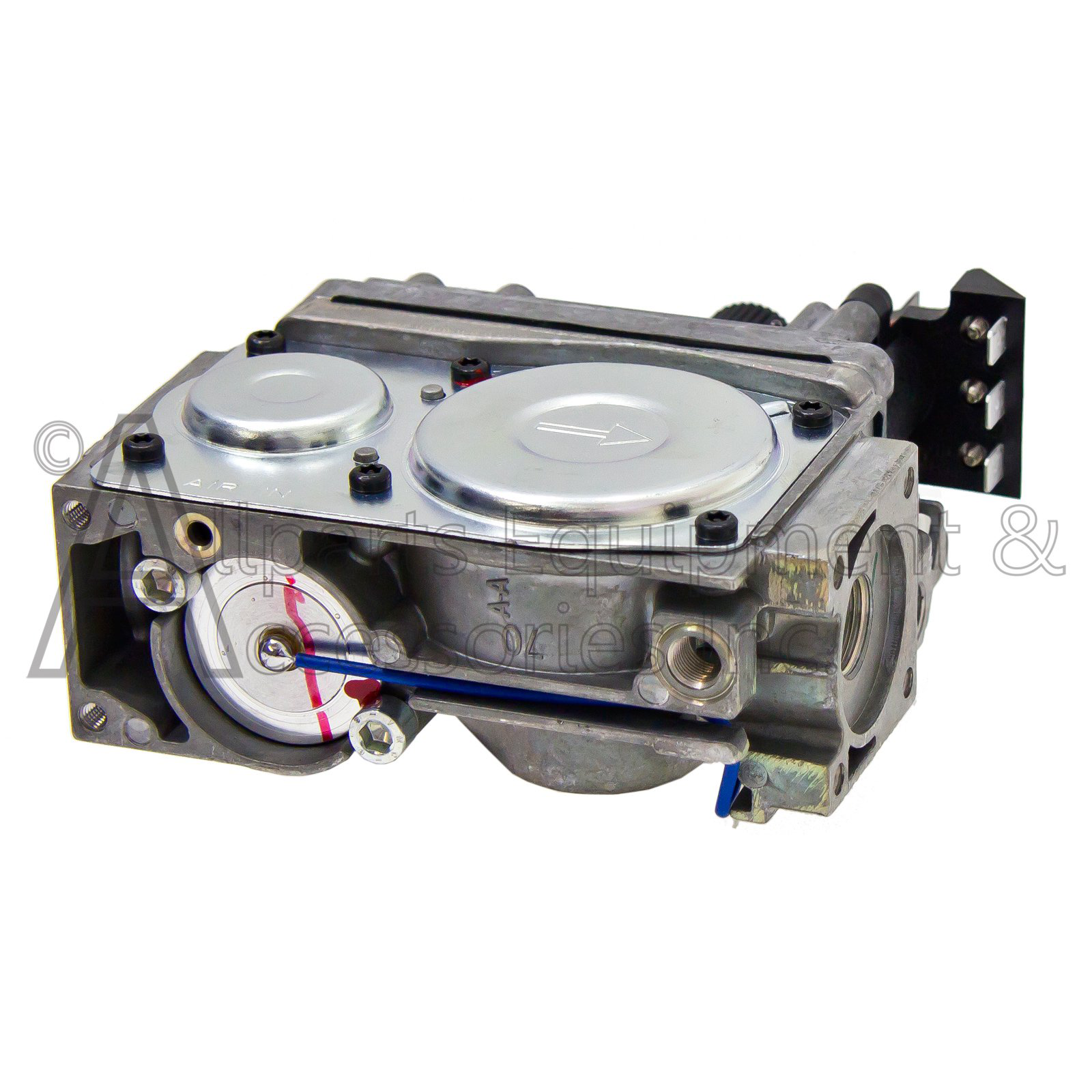

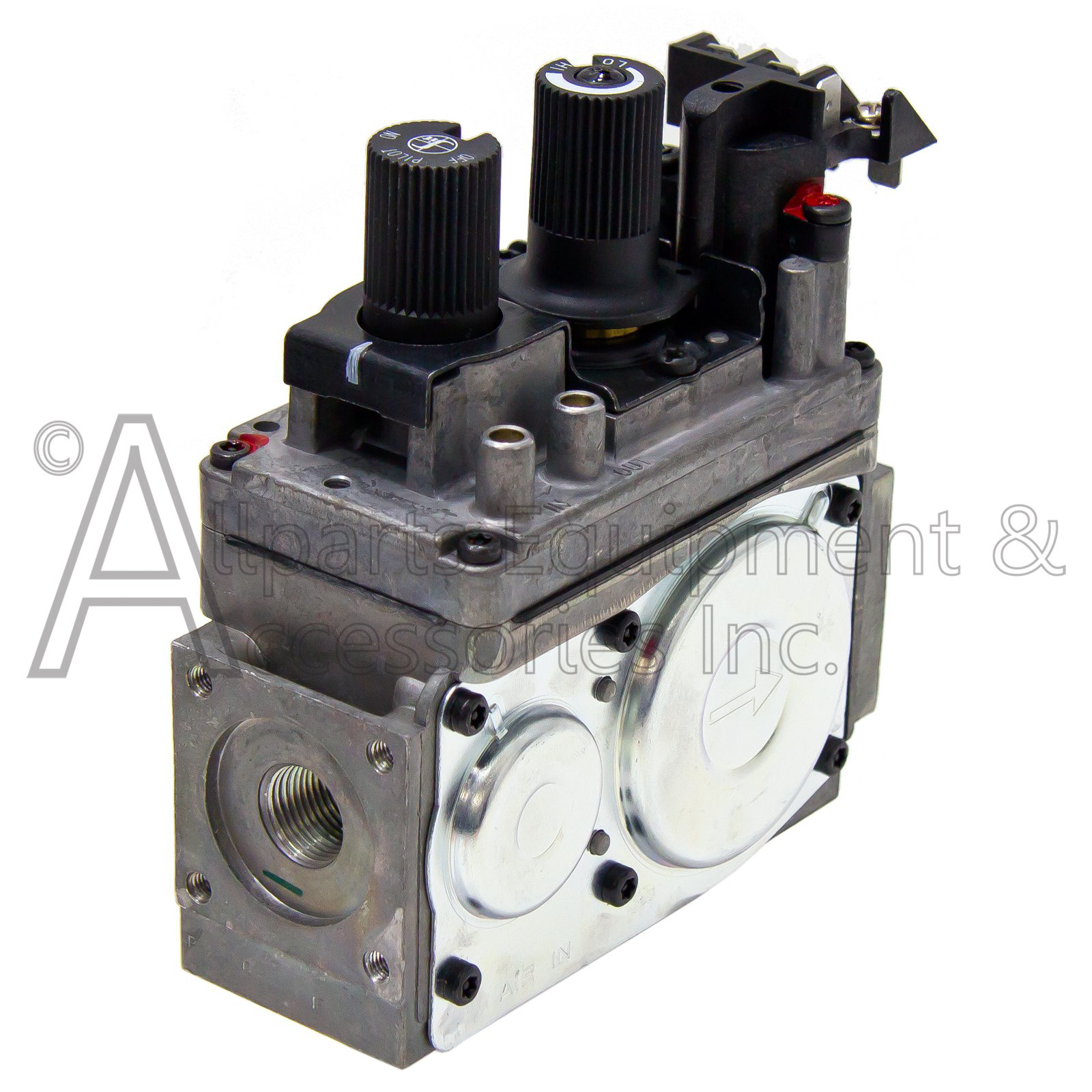

20010563 is a natural gas control valve used in several Majestic and Vermont Castings natural gas fireplaces. The 20010563 gas valve features millivolt control and a manual HI/LO adjustment knob.
This Hearth & Home Technologies OEM replacement valve should only be used with natural gas fireplaces and stoves. Using a different fuel type could lead to unexpected damage to the gas valve or to your fireplace.
Specifications of the 20010563 HHT Natural Gas Control Valve
- Gas Type: Natural Gas
- Gas Inlet Size: 3/8 in. NPT
- Gas Outlet Size: 3/8 in. NPT
- Maximum Inlet Gas Pressure: 1/2 PSIG
- Minimum Voltage Requirement: 145 mV
- Ambient Operating Temperature: 32° to 175° F
The following is a partial list of fireplaces and gas stoves that the 20010563 is known to service:
Majestic
- 33XDV (with serial number GFDE / N / L3I1)
- 36XDV (with serial number GFDE / I / N3J1 / GFDL3J0 & GFDJ5J0)
- 39XDV (with serial number GFDE / N3K1)
- DV360 (with serial number GFDE / I / N / L4L1 / 2)
- RDV4136
Vermont Castings
- Dutchwest NV 2467 and NV 2468
- Brookhaven 20DVT (with serial number GFDN4B0)
The following Vermont Castings Radiance RDVOD natural gas stove models are also compatible with the 20010563 HHT gas valve:
- 3225 - 3232
- 3350 - 3354
- 3360 - 3369
- 3390 - 3399 (with a serial number that starts with 4940)
