160217-01 Tip Switch for ProCom Heaters

Out Of Stock
Part Number
160217-01
$7.59
Part Number: 160217-01
Shipping Weight: 0.375 Lbs
This item is NOT currently in stock and will be shipped as soon as possible. Typical lead times are 5-10 business days for common stock items that are pictured and 15-25 business days for non stock and special orders. Please email customer service for specific details if required at
customerservice@allpartsinc.com
The 160217-01 Tip Switch was used on the Procom LPG propane Gas portable patio and space heaters.


Current Switch Specifications

MS4-16A

16A 125VAC

16(4) A 250V 5E4

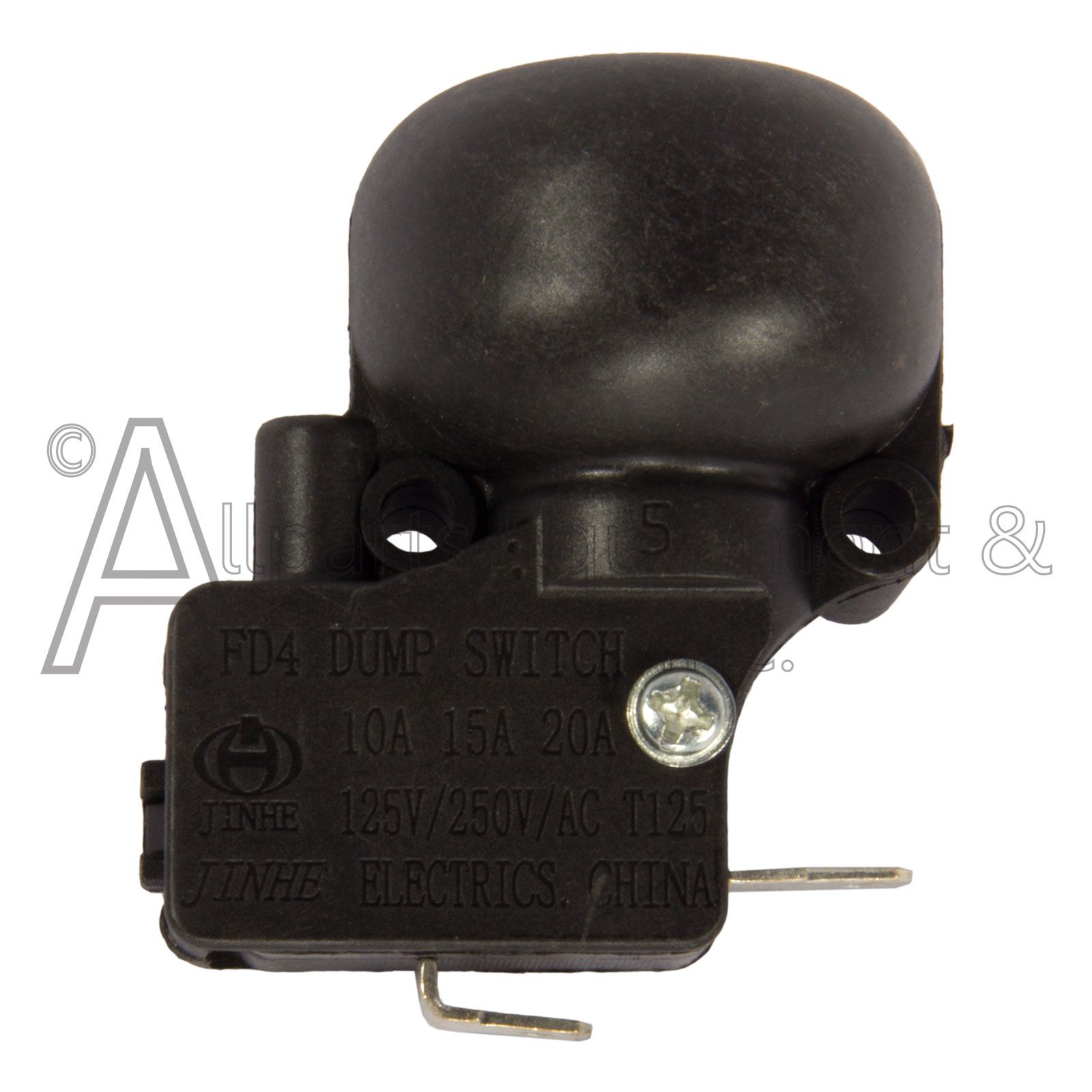

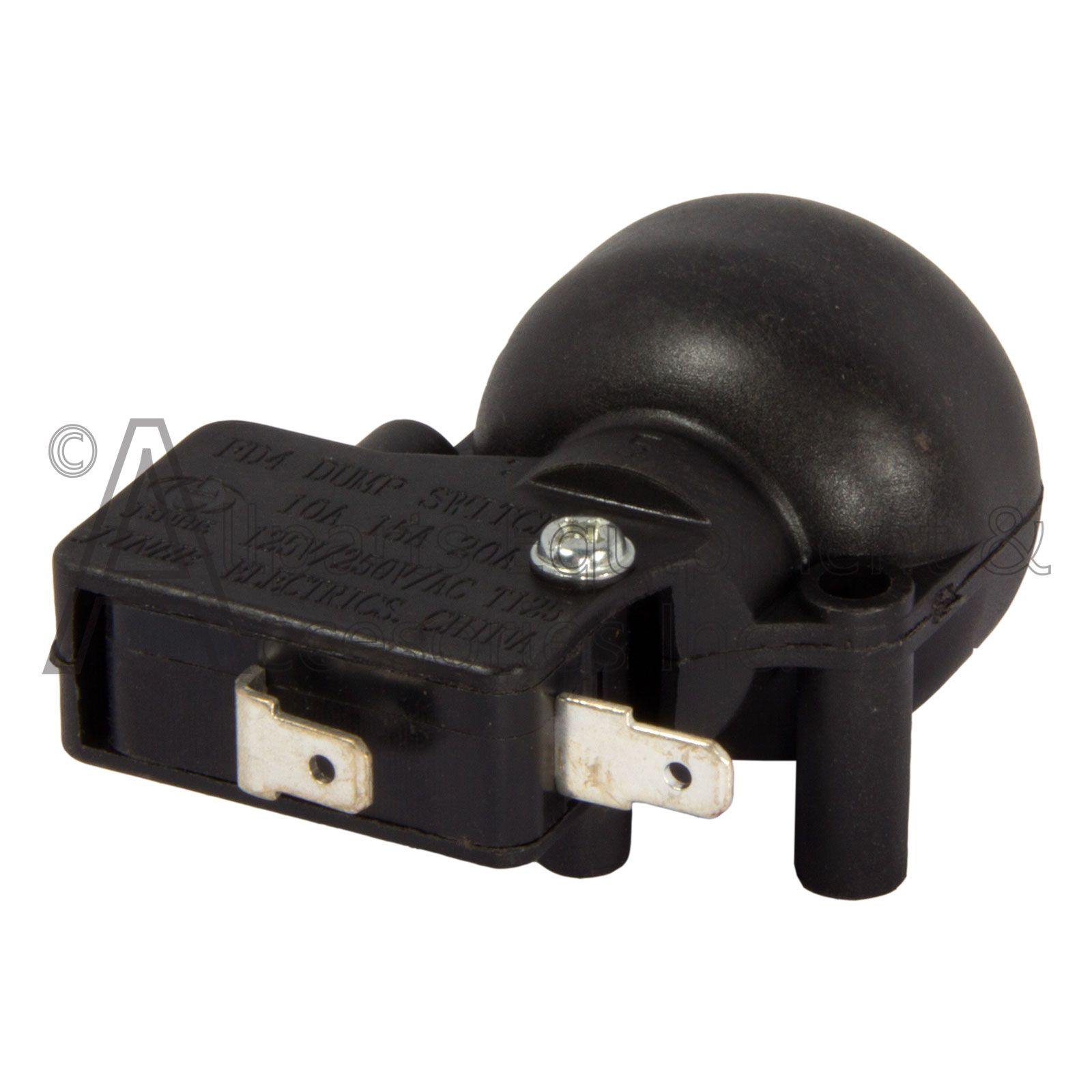

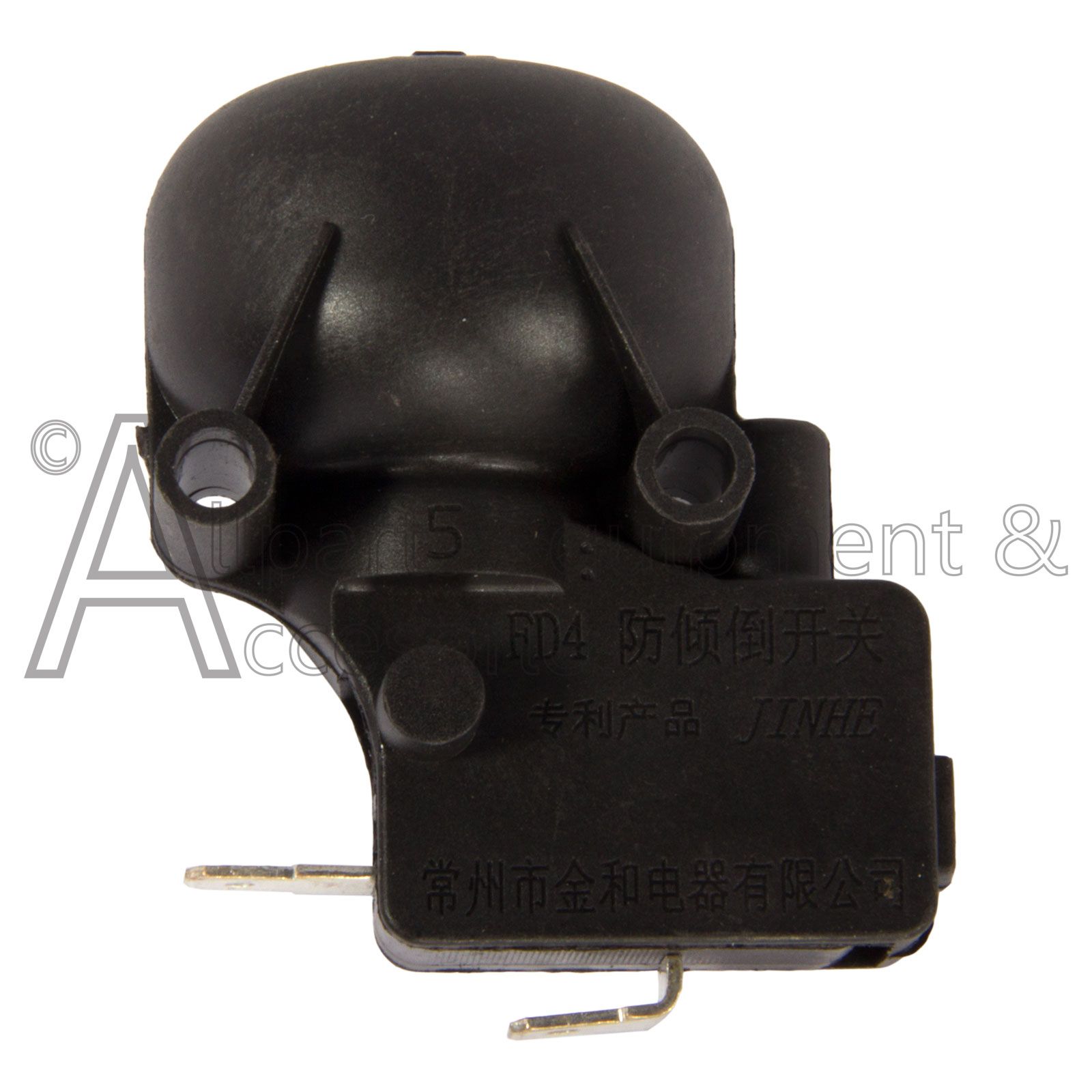

Previous Version Switch Specifications.

FD4 Dump Switch
10A 15A 20A
125V / 250V / AC125

JINHE ELECTRICS SHINA

Service Note
Amperage on these switches does not matter because they are used in a Thermocouple Millivolt Circuit of less than 1 Amp and are designed to open the millivolt circuit and stop operation on the heater in the unit exceed a specific angle.


Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account
No
Known Part Numbers:
FD4
