14D0468 Gas Valve Millivolt Propane Gas Remote Ready
In stock
Part Number
14D0468
$144.50

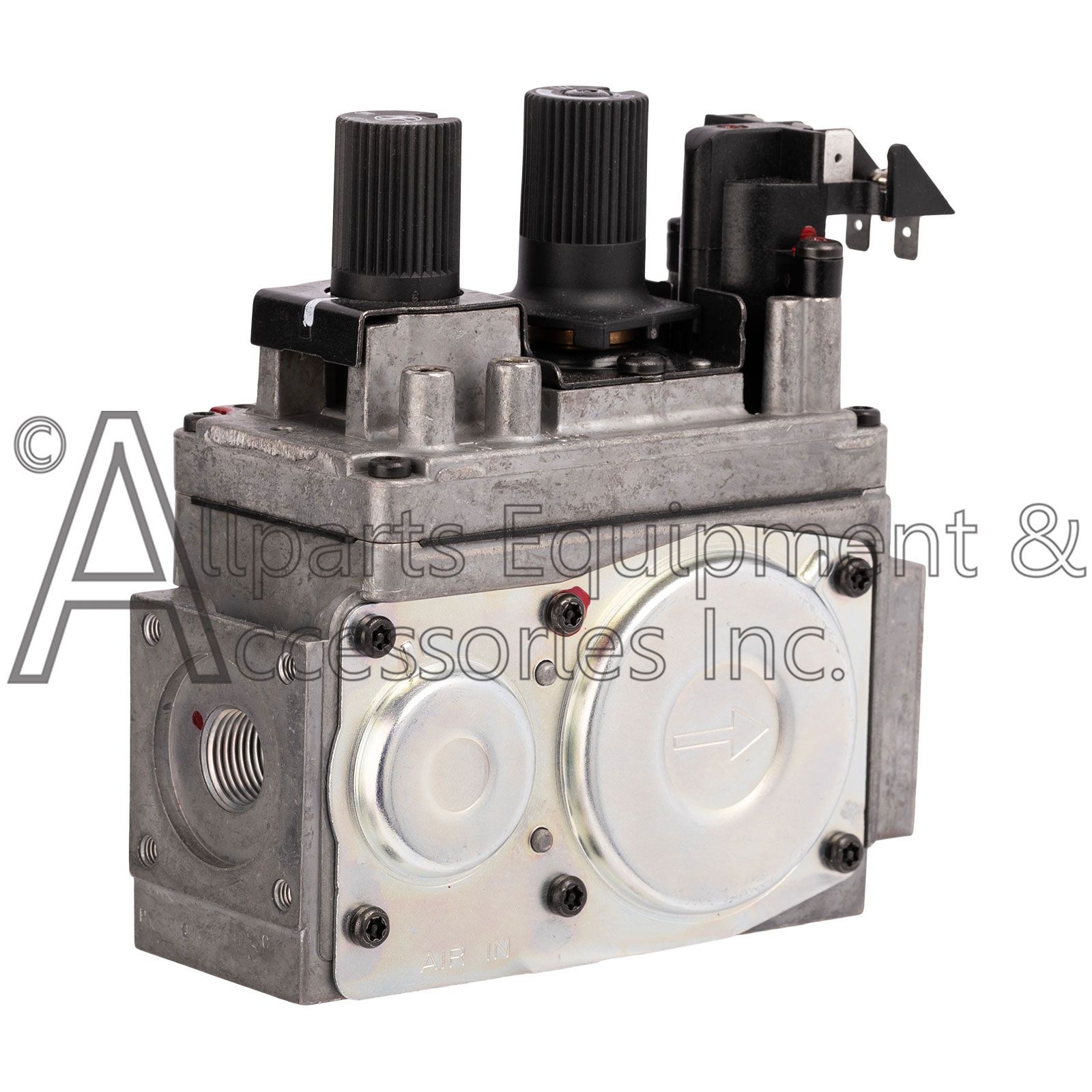

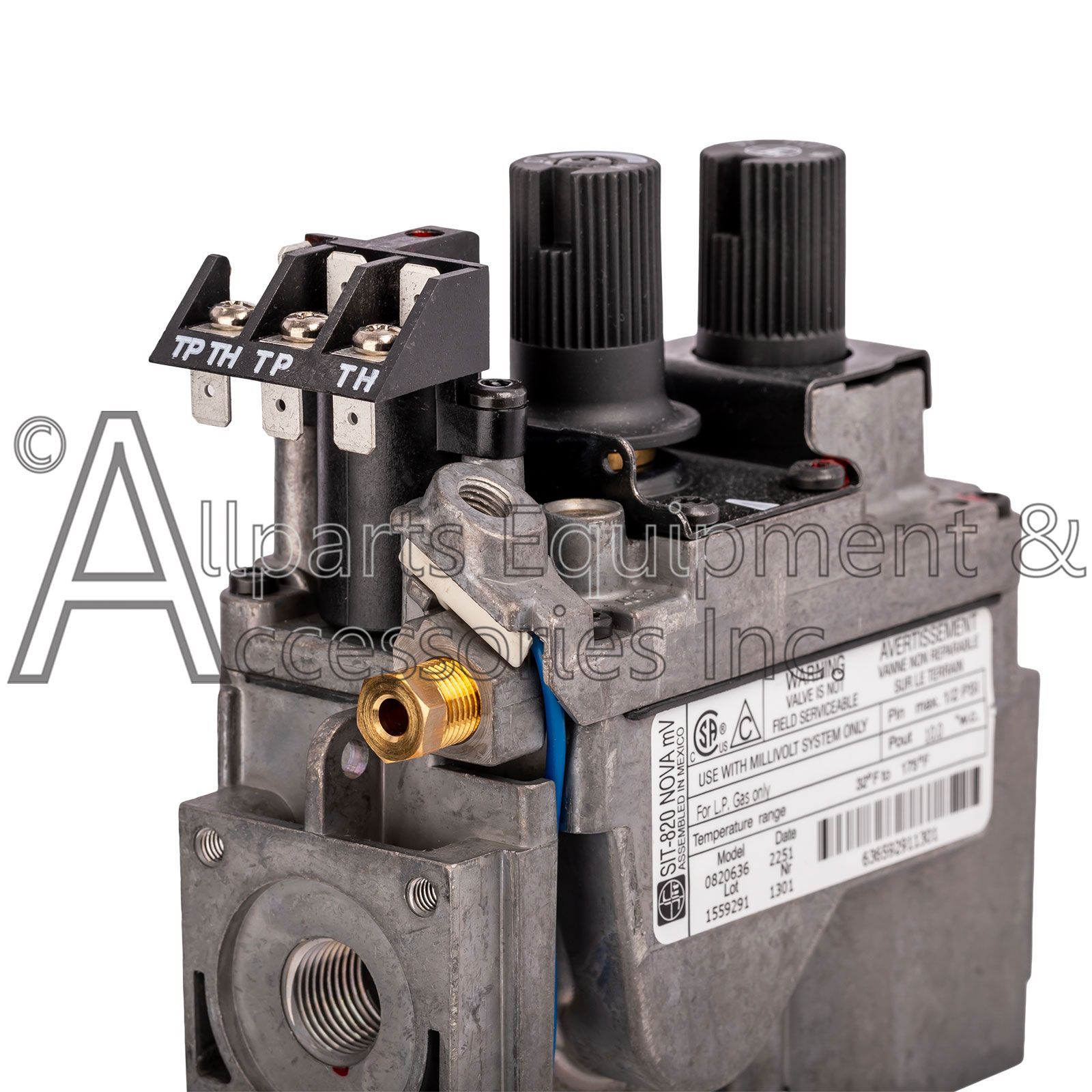

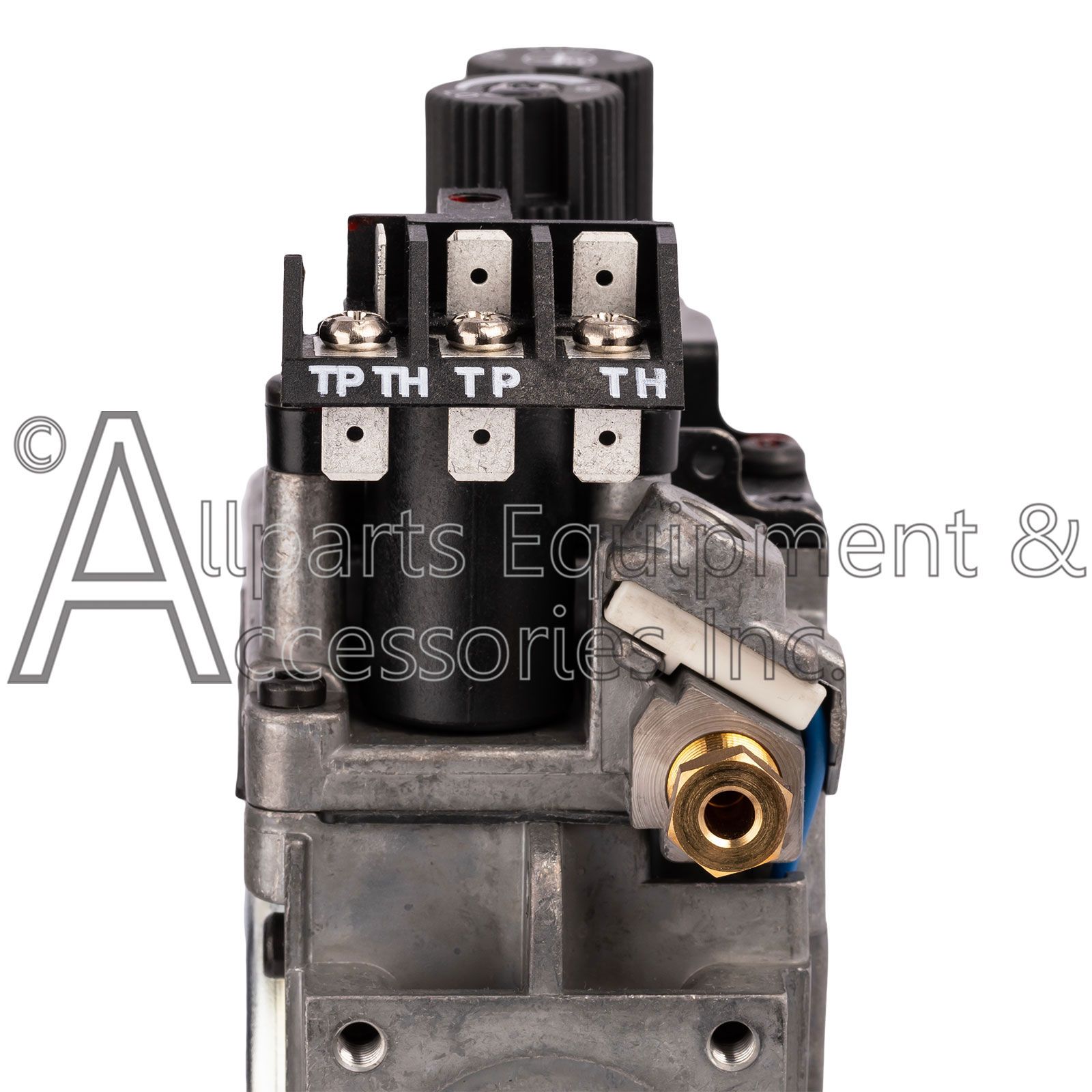

14D0468 Majestic Millivolt Propane Gas valve is a remote remote ready gas control valve for use in Monessen and Majestic ventfree gas log sets and unvented fireplaces by HHT.
The HHT 14D0468 and SRV14D0468 are the same Gas Valve from Sit Controls and were used on many different models of Vent Free fireplaces from HHT including the following partial list of models:
Monessen Vent Free Gas Fireplaces:
CSVF20SPV
CSVF20SPV
VFC24CPV
VFC24LPV
VFCS30DPV
VFF32CPV
VFF32LPV
VFF36CPV
VFF36LPV
VFI33CPV
VFI33LPV
Majestic Vent Free Gas Log Sets:
18TPB
24TPB
30TPB
Monessen Vent Free Gas Log Sets:
18HVFL
NBST27PV-B
We
recommend always verifying you model number and gas type before ordering any
replace gas components as sometime units have has conversion performed in the
field.

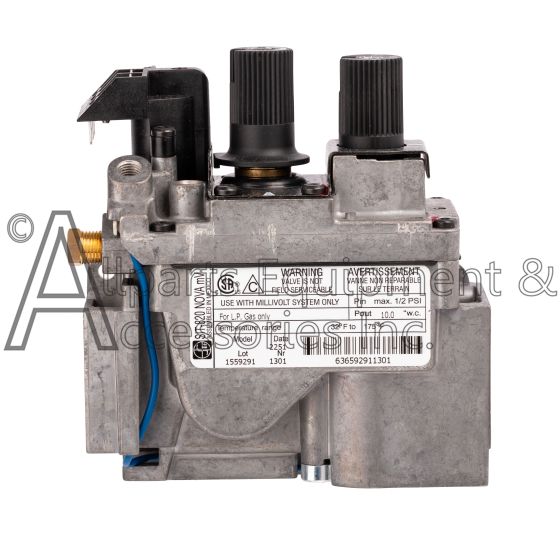

This HHT Majestic 14D0468 will have the Sit Controls Model 0.820.636 and must be replaced with the exact same gas control valve.
Split-system millivolt controlled liquid propane gas valve for use in vented appliances.
HI/LO burner adjustment with manually operated knob
Minimum voltage 145mV Coil resistance 2.25±0.5
Thermo-Electric Unit Hold-in current less than 200Ma
Drop-out current Greater than 80mA with coil resistance 0.018± 0.003
Gas type Propane Gas HI/LO action Manual Pressure set-point 10.0” w.c. ± 0.4
Range of adjustment 10.0” w.c. -6.3” w.c. Set at 30K btu/hr
Thermocouple connection M8x1
Propane "LPG" Gas Inlet 3/8 in. NPT
Propane "LPG" Gas Outlet 3/8 in. NPT
Maximum Propane Gas inlet pressure 1/2 PSIG Ambient operating
Temperature 32° to 175° F
Maximum @ 1 in. w.c. pressure drop 162,000 BTU per hour Regulation capacity 8,100 to 315,700 BTU AP per hour
Maximum Inlet Pressure 1/2 PSIG
