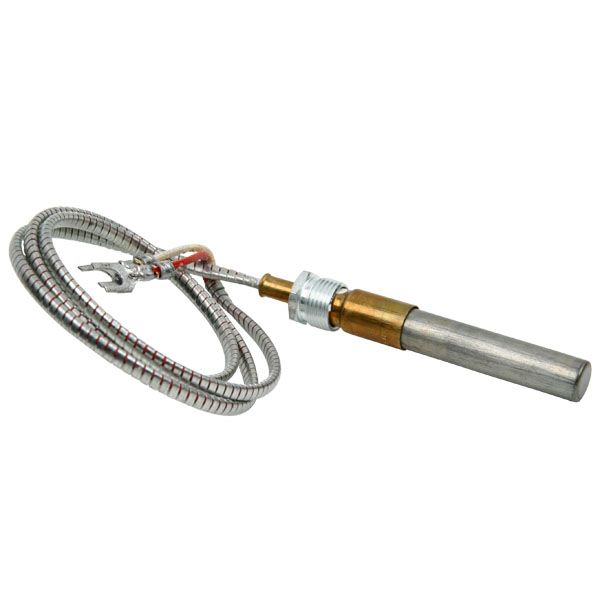

14491 THERMOPILE WITH 23 LEADS FITS DESA FIREPLACES
This 14491 Superior Fireplace Thermopile Generator Features:
Push-in clip, split nut, and adapter assembly for easy pilot burner installation.
Spade or quick-connect terminals available for millivolt gas control connections.
Male nut connector for Pilotstat® safety control power units.
The product specifications for the 14491 are as follows:
Voltage: 750 mV Connection Type:
Spade Terminals Lead Length (in.): 23 in.
Lead Length (mm):584 mm
Open Circuit Output (mV): 400 mV to 750 mV
Resistance: 2.88 ohms
Temperature Ratings (F): Hot Junction 1400 F
Temperature Ratings (C): Hot Junction 760 C
Temperature Ratings (F): Cold Junction 780 F
Temperature Ratings (C): Cold Junction 416 C
Includes:Thermopile attaching nut
