126043-01 Natural Gas Valve with Electronic IPI
In stock
Part Number
126043-01
$157.90

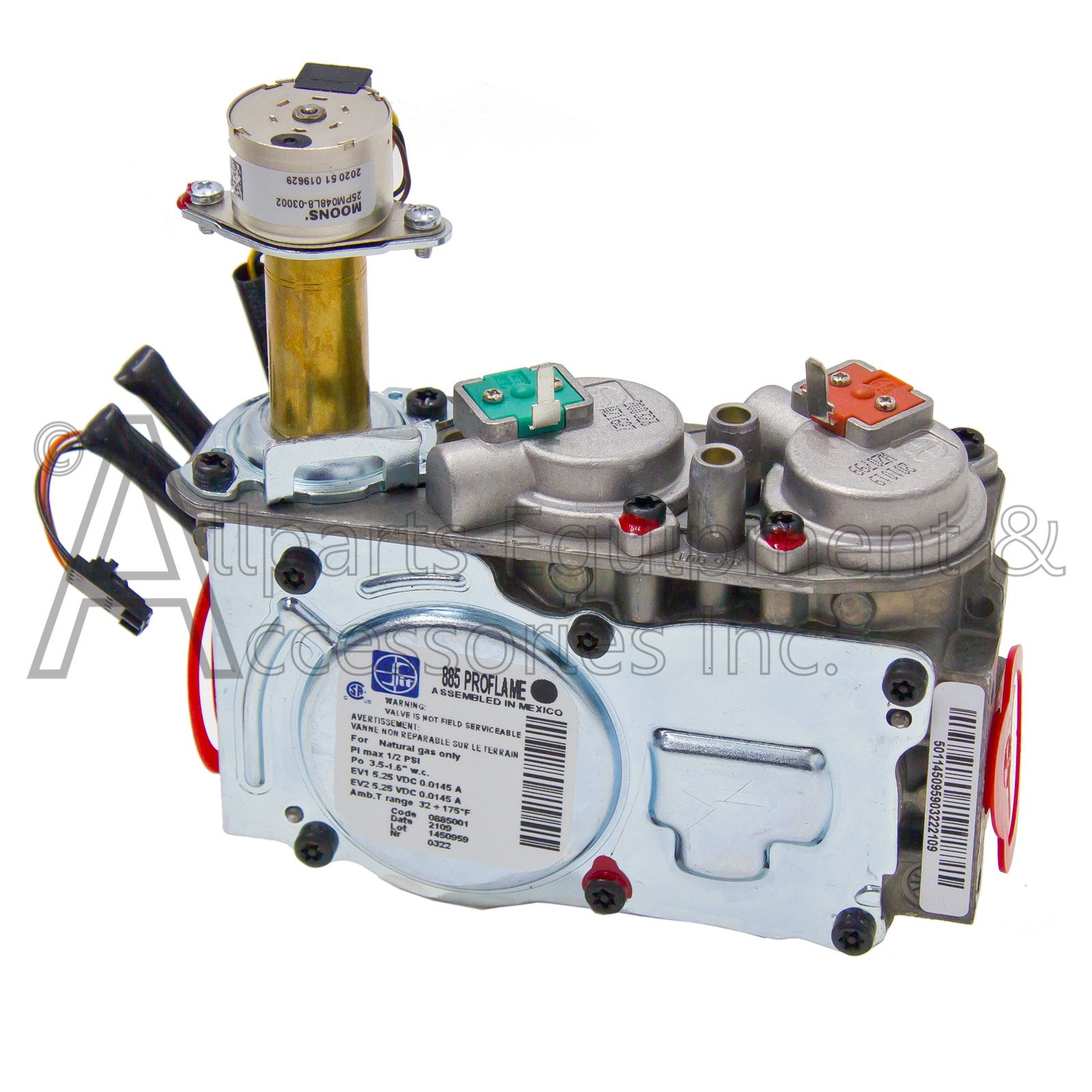

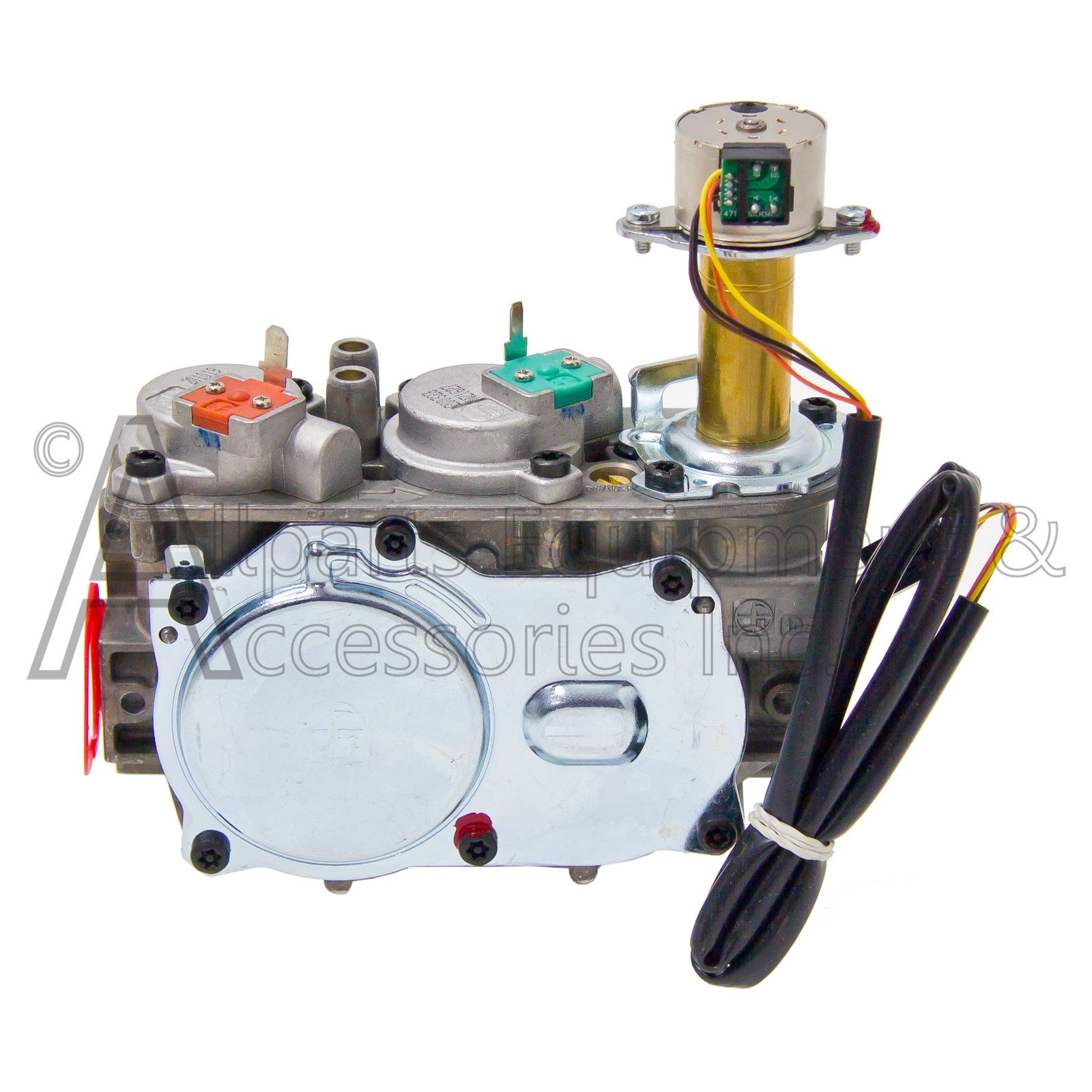

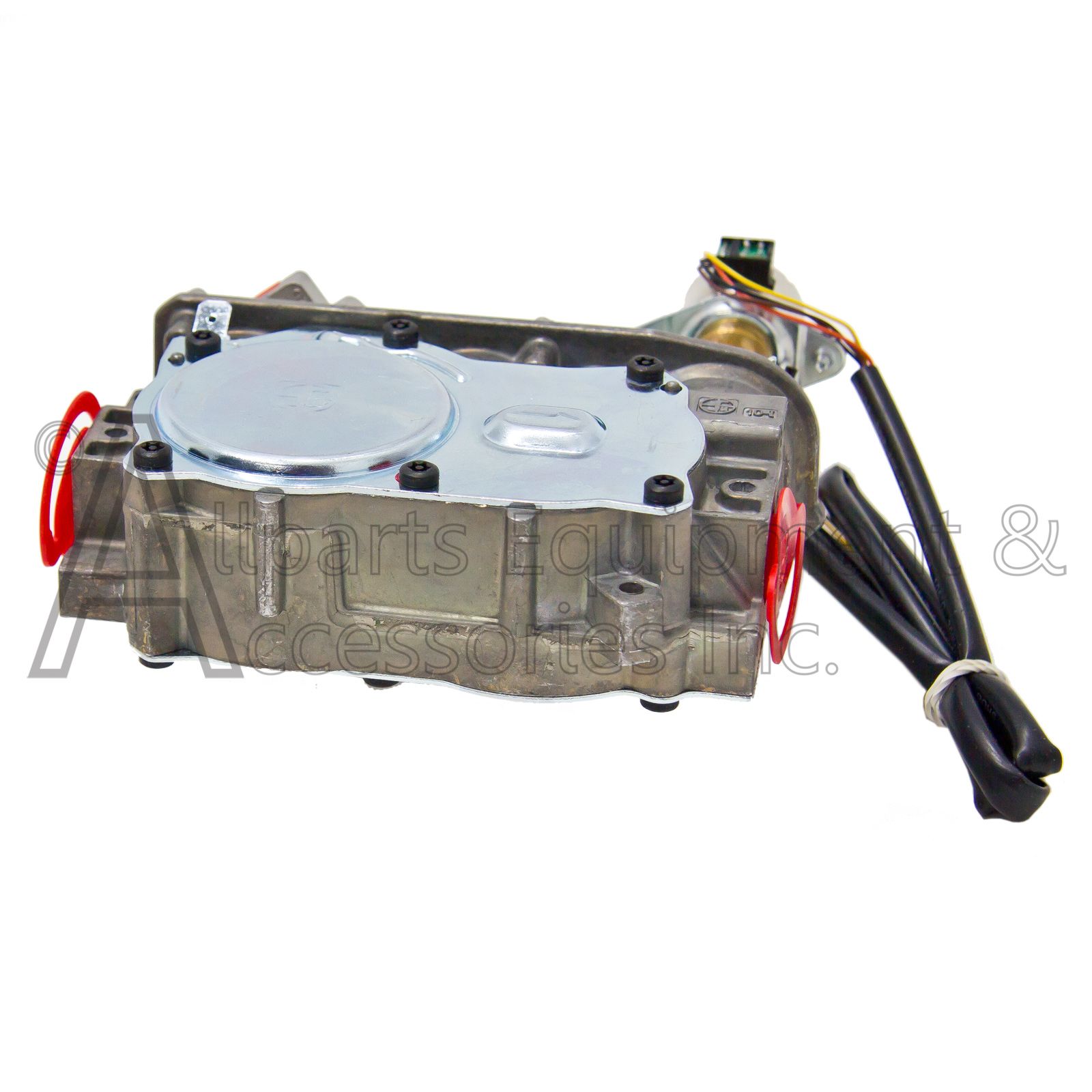

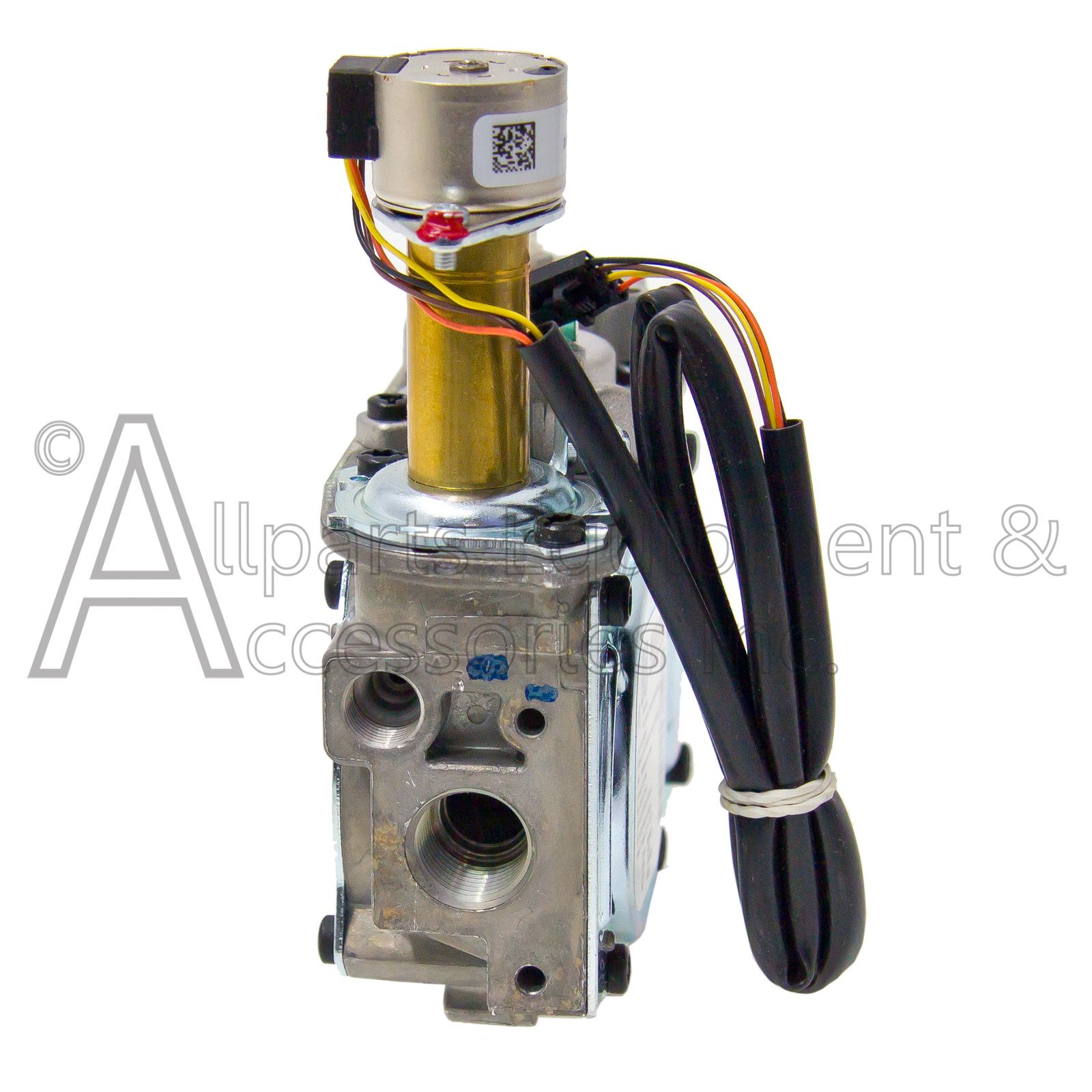

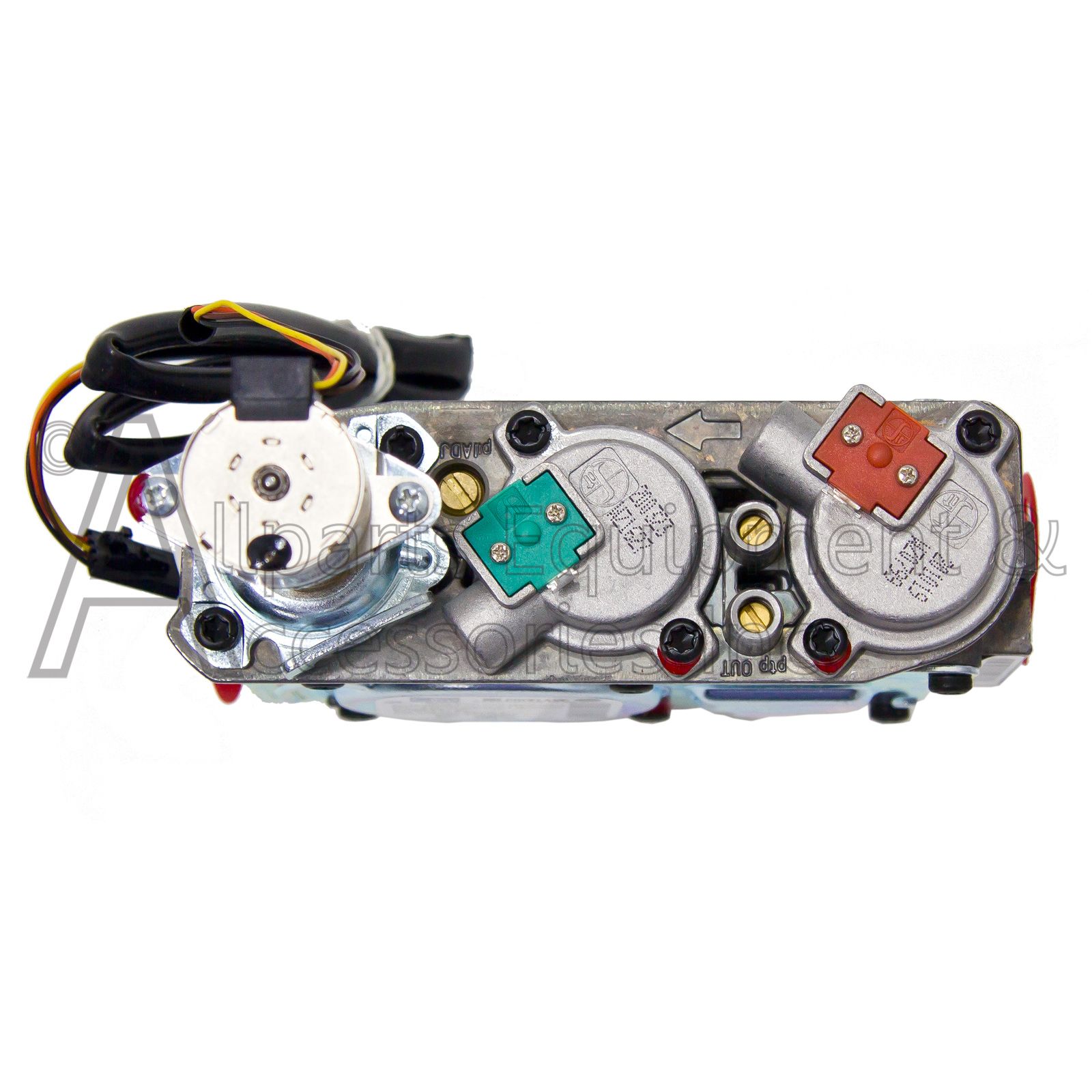

The 126043-01 is a natural gas valve that was used in natural gas hearth appliances, such as those from Superior. This gas valve is a SIT Control 885 Proflame series gas valve with an electronic IPI and an automatic Hi/Lo stepper motor.
The 126043-01 natural gas valve has been replaced by the J6728.
Specifications of the 126043-01 Gas Valve
Gas Type: Natural Gas
Max. Capacity: 60,000 BTU/Hr. @ 1 in. w.c pressure drop
Max. Pressure Setting: 3.5 in. w.c ± 0.3
Min. Pressure Setting: 1.6 in. w.c ± 0.4
Maximum Inlet Pressure: 1/2 PSIG
Ambient Operating Temperature: 32° - 175°F
Valve Connection for Pilot: 7/16 UNS x 1/4 in.
Inlet Valve: 3/8 in. NPT
Outlet Valve: 3/8 in. NPT
Electrical Information
Voltage: 5.25 V DC
Amps: 0.0145 A
Gas Valve Coil Resistance: 362 Ω ± 10% @ 68°F
Modulator Coil Resistance: 24 Ω ± 10% @ 68°F
VALVE, SIT NG 0.885.001
