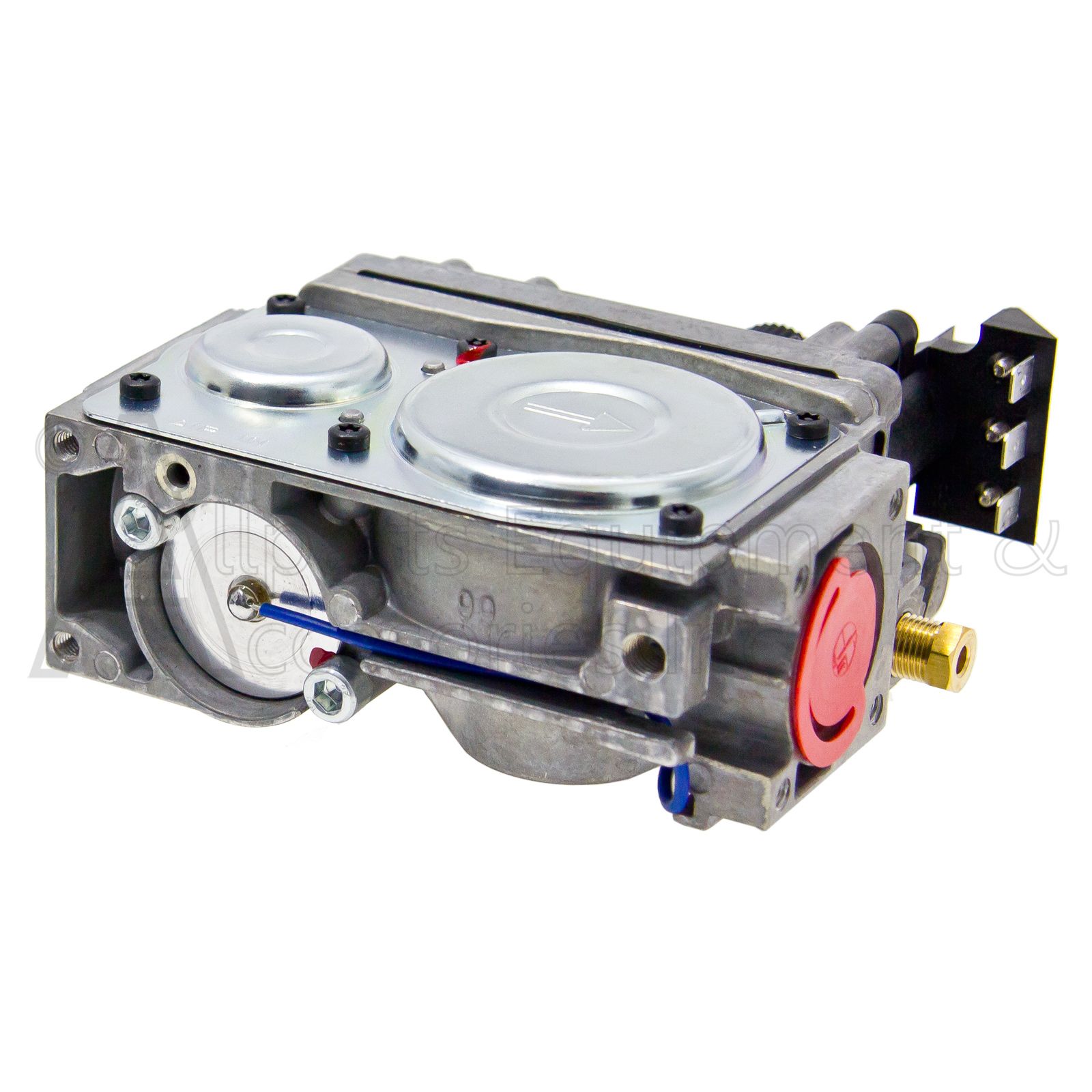

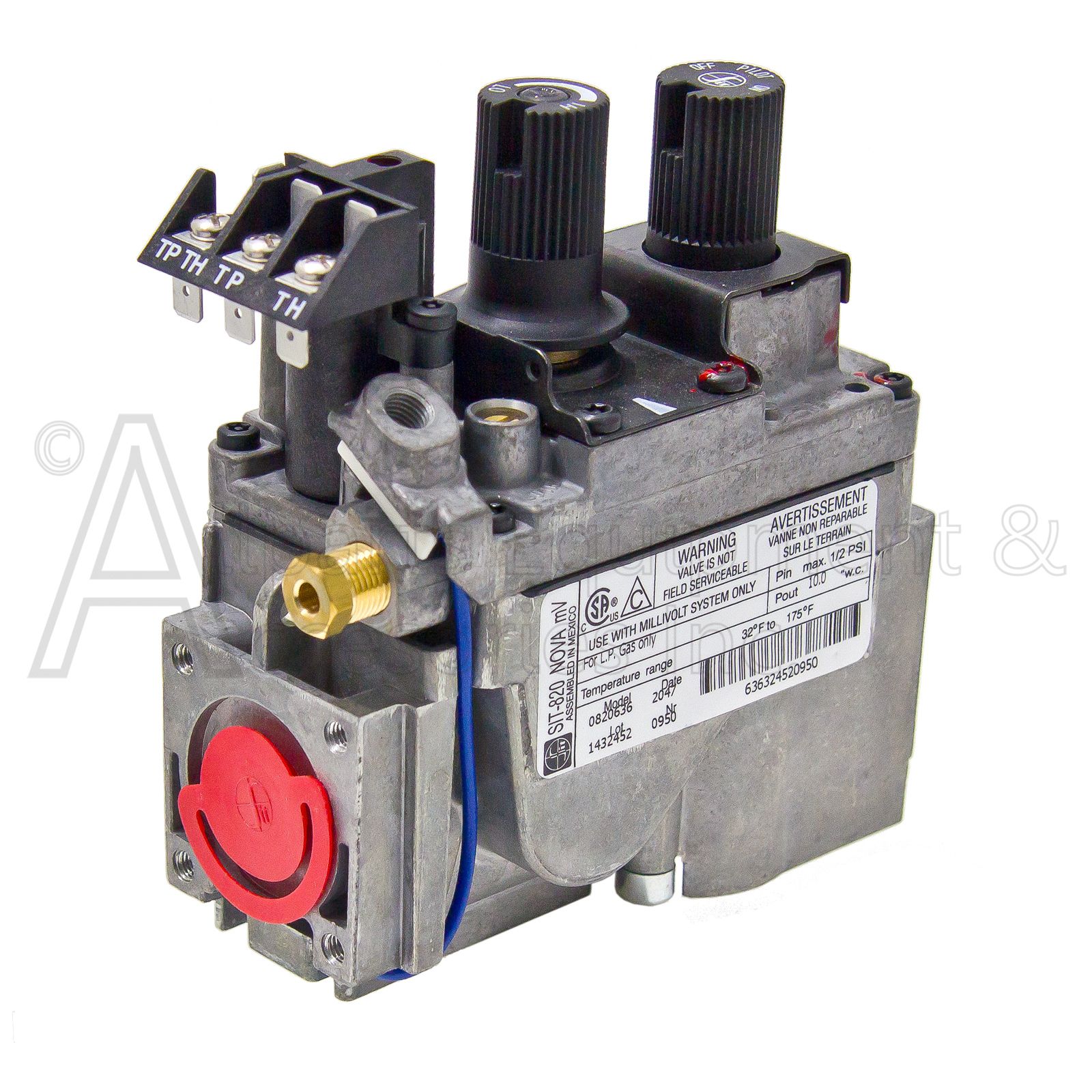

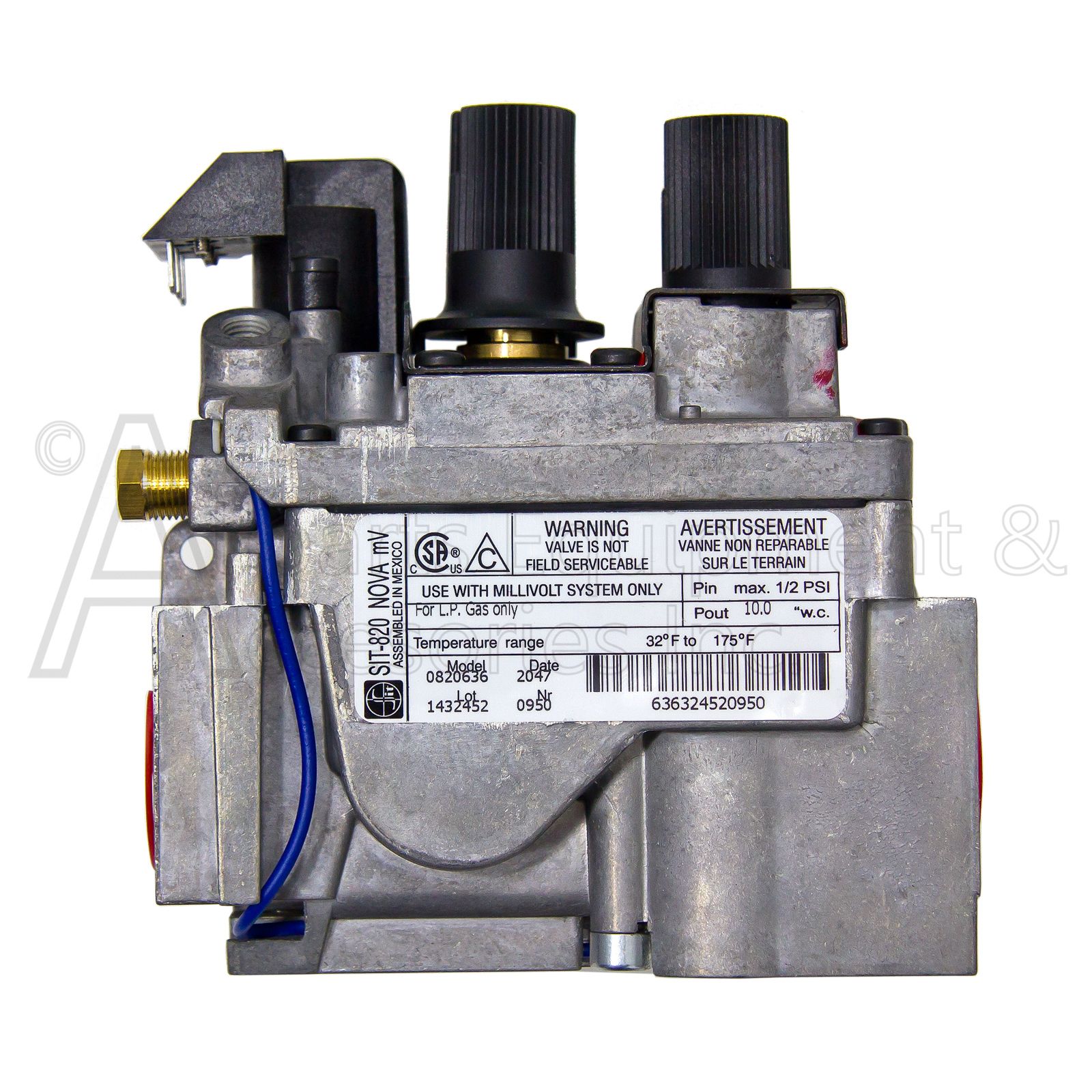

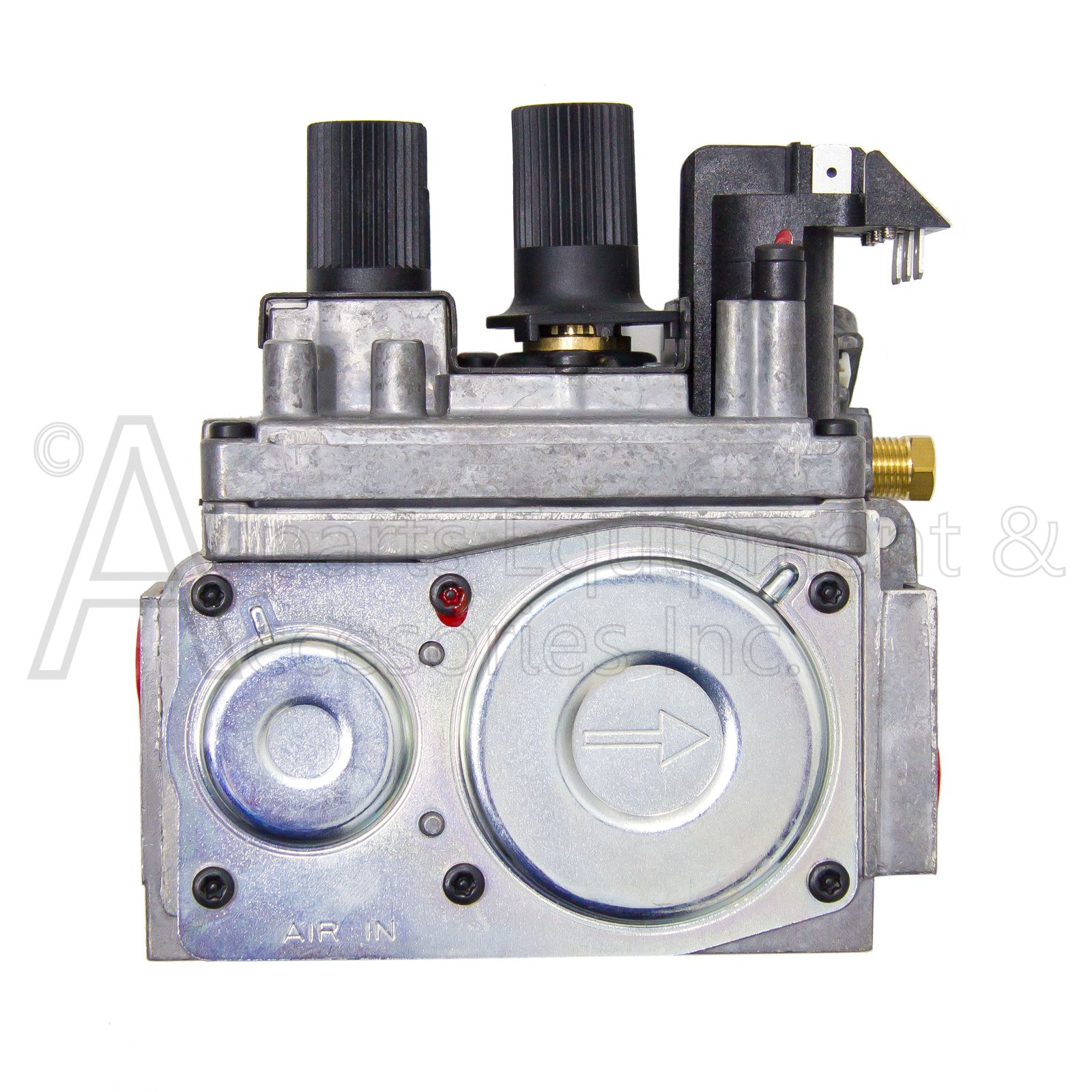

111807-02 SIT Gas Valve Propane LP Desa FMI Fireplaces
In stock
Part Number
111807-02
$144.50
111807-01 Desa FMI Propane Gas Millivolt is a Split system remote ready millivolt control for use in unvented appliances including Vent-Free Logs, Vent-free Gas Fireplaces,
and other Vent Free decorative applications.
The Desa FMI 110807-02 Gas Valv was used on many
different models of Vent Free fireplaces from FMI, Fireplace Manufactures Incorporated, Desa International, Superior and other manufacturers.
Superior Gas Fireplaces:
- CF5500CMP
- CF5-CMP
- CF6500CMP
- CF6-CMP
- CFPF-CMP
- CFST-CMP
- CGI-BAY
P
- CGI-BAY
PX
- KVF-38
RMP
- PH36P-FS
- PH-36P-IN
- PH36P-ZC
- VF4000-CMP-2
- VF4-CMP
- VF5000-CMP-2
- VF5-CMP
- VF6000-CMP-2
- VF6-CMP
- VFGL-18VSP-3
- VFGL-18VSP-4
- VFGL-24VSP-3
- VFGL-28VSP-3
- VFPF-CMP
- VFPF-CMP-2
- VFST-27MP
- VFST-CMP
- VFST-CMP-2
- VF18NPTB
This 111807-02 Sit Controls Propane Gas Valve is for use in conjunction with an ODS pilot system which includes both a thermocouple and a thermo-generator Pilot ODS.

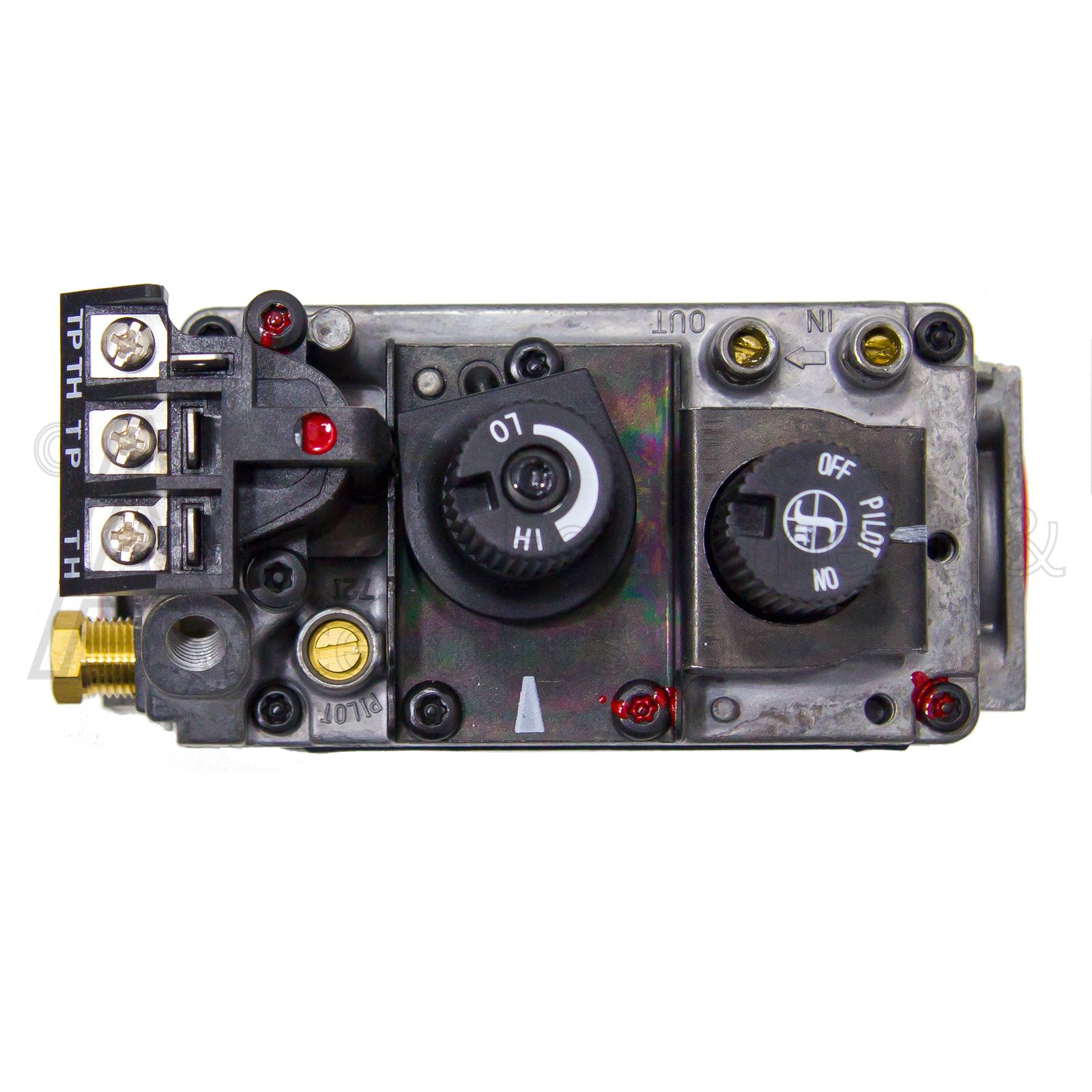

This is a remote ready gas valve and has the HI/LO burner adjustment with manually operated knob with variable flame adjustment.
The Sit Controls gas valve has the following specifications.
Split-system millivolt controlled liquid propane gas valve for use in vented appliances.
HI/LO burner adjustment with manually operated knob
Minimum voltage 145mV Coil resistance 2.25±0.5
Thermo-Electric Unit Hold-in current less than 200Ma
Drop-out current Greater than 80mA with coil resistance 0.018± 0.003
Gas type Propane Gas HI/LO action Manual Pressure set-point 10.0” w.c. ± 0.4
Range of adjustment 10.0” w.c. -6.3” w.c. Set at 30K btu/hr
Thermocouple connection M8x1
Propane "LPG" Gas Inlet 3/8 in. NPT
Propane "LPG" Gas Outlet 3/8 in. NPT
Maximum Propane Gas inlet pressure 1/2 PSIG Ambient operating
Temperature 32° to 175° F
Maximum @ 1 in. w.c. pressure drop 162,000 BTU per hour Regulation capacity 8,100 to 315,700 BTU AP per hour
Maximum Inlet Pressure 1/2 PSIG
