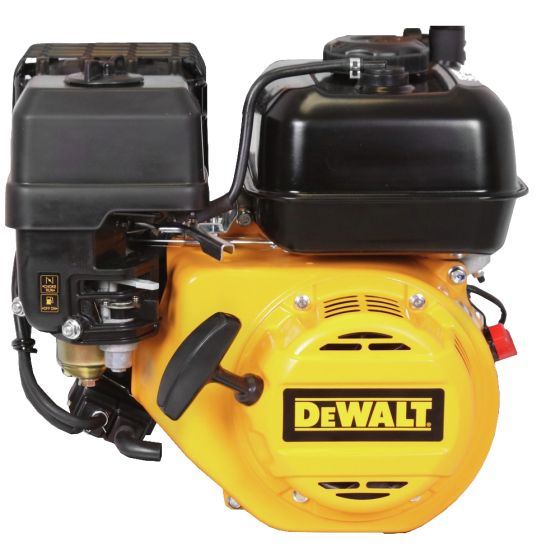

110170 DeWalt CRX210 Yellow and Black Engine, 49 State

The 110170 is a DeWalt engine rated at 5.5 HP with a displacement of 208cc. This yellow and black CRX210 engine features an air-cooled, overhead valve design with a recoil starting system.

The DeWalt 110170 engine comes with a built-in 1 gallon gasoline fuel tank and is rated for 49-State use. This engine is not for sale in California.

Features of the 110170 Engine

• Uses an efficient air cooling design with dual element air filters.
• Built with durable industrial tough mufflers, cast iron cylinders, and a forged iron crankshaft.
• Crankshaft is stabilized by heavy-duty steel ball bearings for reduced vibrational wear.
• The cast iron piston cylinders decrease frictional wear for cooler engine operation.
• Comes with a low oil automatic safety shutdown sensor.
• The engine's components are protected by heavy-duty steel blower housing.
• Comes standard with a 1-gallon fuel tank that is powder-coated for corrosion resistance.

Specifications

Net Power Output: 5.5 HP at 3600 RPM

Net Torque: 12.3 Nm at 2800 RPM

Engine Displacement: 208cc

Bore Size: 2.76 in.

Stroke Size: 2.13 in.

Fuel Tank Capacity: 1.0 gal.

Engine Oil Capacity: 20.5 fl. oz.

Compression Ratio: 8.6:1

Dimensions:

Length: 14.25 in.

Width: 12.75 in.

Height: 13.75 in.

Dry Weight: 33 lbs.
