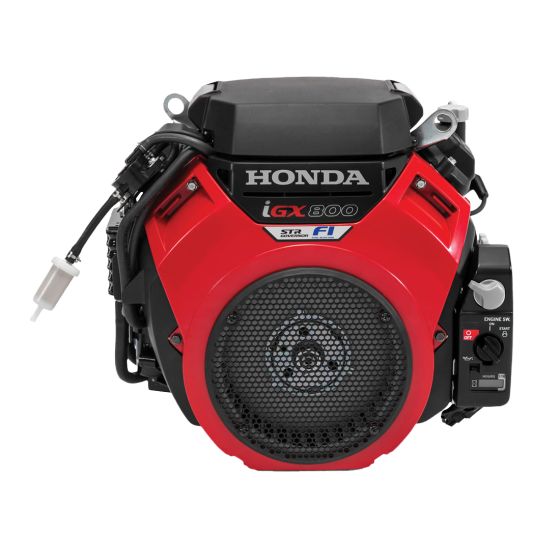

110168 Honda V-Twin iGX800 Engine, E-Start System

The 110168 is a Honda GX800IRH-VXE2 V-Twin engine with a horizontal crankshaft. This heavy-duty engine delivers a high 24.9 HP power output while maintaining high fuel and oil efficiency.

This engine is designed for use in commercial and industrial small engine applications, such as with pressure washers, generators, mowers, pumps, and more.

The Honda 110168 engine uses a high-capacity electronic starting system that's easy to use. The iGX800 110168 also supports electronically-controlled RPM programming and an automatic de-compression system.

This 110168 engine is also under Honda model number GX800IRH-VXE2.

This 49-State engine is not available for sale in California.

Features of the 110168 iGX800 Engine

• Maintains a high fuel efficiency with an electronic fuel injection system.
• The high-capacity oil pump ensures consistent oil delivery throughout the engine.
• The head and cylinder are fully integrated, creating better airflow through the engine.
• Dual air filters and a 36 blade cooling fan help maintain a steady engine temperature.
• Features an LED error code diagnostic screen on the front of the engine.
• Engine controls are located next to the LED error code screen on the front of the engine.
• Allows for application-specific electronic RPM programming.
• Uses an electronic ignition.

Specifications

Net Power: 24.9 HP

Engine Displacement: 779cc

Bore Size: 3.27 in.

Stroke Size: 2.83 in.

Stroke Count: 4-Stroke

Oil Capacity: 60.9 fl. oz.

Compression Ratio: 9.1:1

Dimensions:

Length: 16.9 in.

Width: 19.4 in.

Height: 17.2 in.

Weight: 103.8 lbs.
