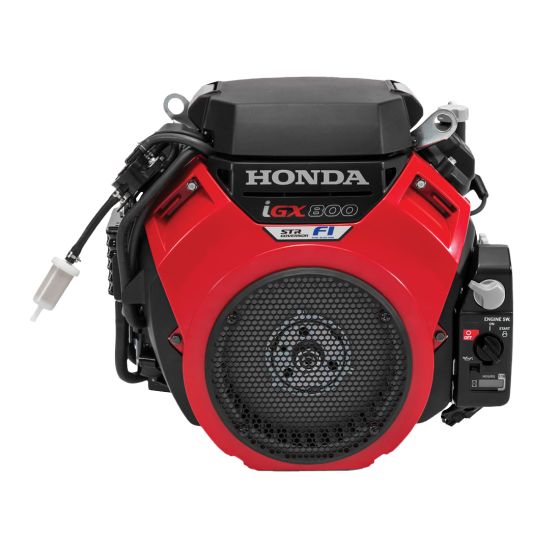

110149 Honda IGX800 Engine with Overhead Valve and E-Start

The 110149 is a Honda IGX800 series engine built for long-lasting performance in small-engine applications. Honda GX engines are common choices in pressure washers, generators, pumps, and more.

Designed for heavy-duty use, the 110149 IGX800 engine is built from durable components that keep it at top performance.

Dual air filters help prevent clogging in the air intake, a high-capacity 36-blade fan keeps the engine cool, and the 110149’s overall V-Twin engine design allows for more airflow.

This 110149 engine is also under the Honda model number IGX800IRH-VXE2.

The 110149 Honda IGX800 engine is certified for use in all 50 states.

Features of the 110149 GX800 Engine:

• An electronic fuel injection system enhances the engine’s fuel efficiency.
• The V-Twin integrated cylinder head and engine block design improves airflow and enhances combustion efficiency.
• A high-performance 36-blade cooling fan regulates the engine temperature to prevent overheating.
• An overhead valve (OHV) design keeps engine weight low and minimizes vibrations to reduce wear on the engine.
• A high-capacity oil pump maintains consistent engine lubrication.
• The LED error code diagnostic indicator simplifies the troubleshooting process.
• Allows for application-specific electronic RPM programming.
• Uses an electronic ignition.

Specifications

Net Power: 24.9 HP / 3,600 RPM

Engine Displacement: 779cc

Bore Size: 3.27 in.

Stroke Size: 2.83 in.

Stroke Count: 4-Stroke

Oil Capacity: 60.9 fl. oz.

Compression Ratio: 9.1:1

Dimensions:

Length: 16.9 in.

Width: 19.4 in.

Height: 17.2 in.

Weight: 103.8 lbs.
