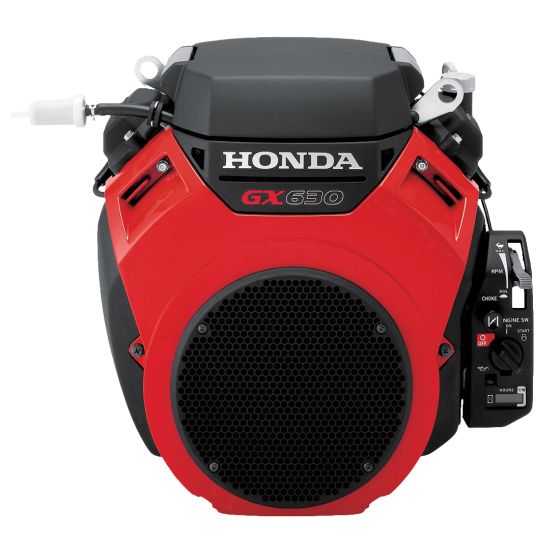

110146 Honda V-Twin OHV Engine with Horizontal Shaft, 50-State

The 110146 is a Honda GX630 series engine that is designed for heavy-duty small engine use. This powerful V-Twin engine delivers a net power output of 20.8 HP.

Built to hold up to heavy-duty use, the 110146 uses a forged steel crankshaft and steel-tipped aluminum push rods. The push rods reduce the engine's vibrations while running, reducing friction between components.

The controls for the 110146 engine are located on an easy-to-access panel directly on the engine's front. These controls may vary in configuration between engines.

This fuel-efficient and powerful 110146 Honda engine is the perfect choice for industrial applications, including pressure washers, generators, water pumps, and more.

The 110146 engine is also under the Honda model number GX630RH-VXE2.

Features of the 110146 Honda Engine

• Runs smooth with vibration-dampening push rods and an integrated pump cylinder.
• Uses an efficient 36-blade cooling fan that runs quiet.
• Delivers reliable performance with a dual cylindrical air filter and a large air intake.
• The dual cylindrical air intake filters help protect the engine from dusty worksites.
• Starts easily with the digital CDI ignition system, which builds up a starting charge until ignition is required.
• Uses a horizontal tapered shaft.
• Certified for sale in all 50-States.

Specifications

Engine Displacement: 688cc

Net Power Output: 20.8 HP

Compression Ratio: 9.3:1

Oil Capacity: 67.2 fl. oz.

Bore: 3.07 in.

Stroke: 2.8 in.

Dimensions:

Length: 15.9 in.

Width: 16.1 in.

Height: 17.2 in.

Dry Weight: 96.8 lbs.
