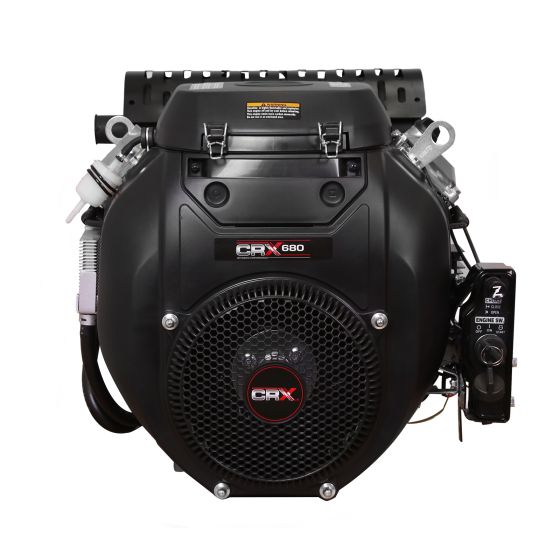

110138 CRX680 V-Twin Engine with Electronic Key Start and 1.125 Shaft.

The 110138 is a CRX680 series V-Twin engine that features a 1.125-inch engine shaft. The 110138 is rated at a net power of 19.4 HP at 3600 RPM.

This V-Twin CRX engine features an electric key starter and a 20A alternator. It is designed for industrial and commercial use with pressure washers, pumps, generators, lawn equipment, gardening equipment, and more.

The 110138 is a 49-State engine that is not available for purchase in California.

Features of the 110138 Engine

• Dual air filters keep the engine running even on dusty job sites.
• A heavy-duty muffler keeps the engine running quiet.
• The crankcase is stabilized with oversized ball bearings, reducing wear.
• Comes with an integrated oil cooler and oil filter.
• Features full pressure lubrication.

Specifications

Net Power: 19.4 HP @ 3600 RPM

Net Torque: 42 Nm @ 2600 RPM

Engine Displacement: 678cc

Compression Ratio: 8.5:1

Shaft Size: 1 in.

Bore x Stroke: 3.07 in. X 1.77 in.

Alternator Output: 12 volts, 20 Amps, 240 Watts

Engine Oil Capacity: 47.36 fl. oz.

Dimensions:

Length: 20 in.

Width: 20 in.

Height: 19 in.

Dry Weight: 109 lbs.
