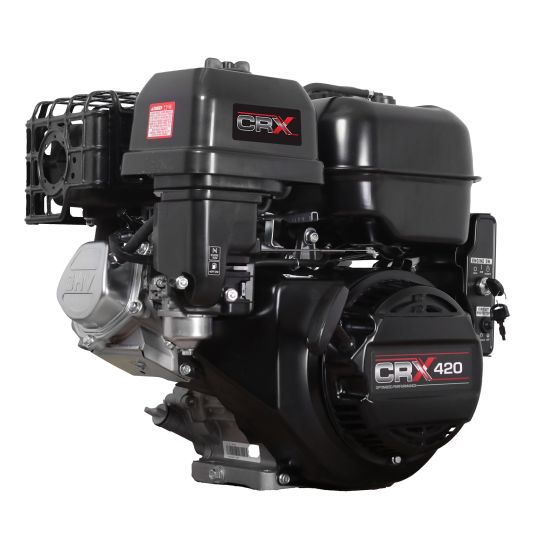

110136 CRX420 Electronic Key Start Engine, 49-State

The 110136 is a CRX420 series engine that is designed for 49-State use with industrial and commercial outdoor equipment. This engine has a net power of 12 HP at 3600 RPM. It uses a transistor magneto ignition system, also called a transistorized ignition system.

This variant of the CRX420 engine has an electronic key start. It also features an on-board 2-gallon fuel tank, a dual-element air filtration system, and a low oil automatic safety shutdown.

The 110136 engine is a 49-State engine, and is not available for purchase in California.

Features of the 110136 Engine

• Built with industrial tough mufflers that keep engine noise low.
• A cast iron engine cylinder and ball bearing stabilized crankshaft reduce vibrational wear.
• Comes with a 2.0 gallon steel fuel tank.
• The fuel tank is powder-coated for corrosion resistance.
• Built-in safety features include a low-oil shutdown.
• The engine's blower is protected by heavy-duty steel housing.

Specifications

Net Power Rating: 12 HP @ 3600 RPM

Engine Displacement: 420cc

Net Torque: 27 Nm @ 2800 RPM

Compression Ratio: 8.3:1

Oil Capacity: 37.12 fl. oz.

Fuel Tank Capacity: 2 gal.

Bore X Stroke: 3.54 in. X 2.60 in.

Dimensions:

Length: 17.25 in.

Width: 16 in.

Height: 17.9 in.

Dry Weight: 67 lbs.
