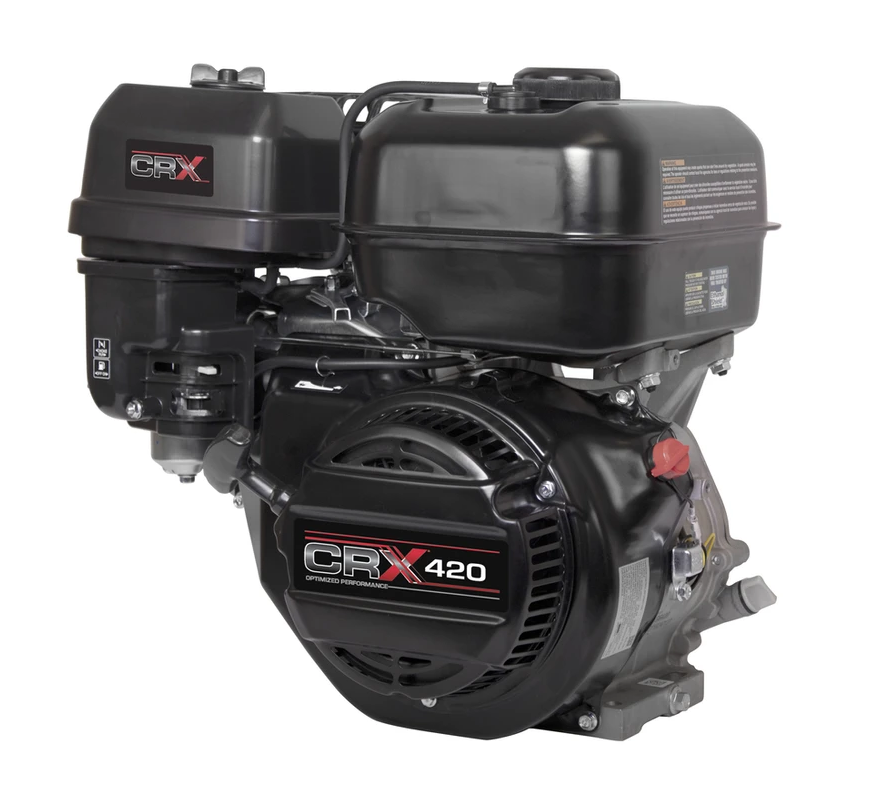

110086 Single-Cylinder CRX420 Engine

The 110086 is a single-cylinder 420cc engine with a net power of 9.0 kW @ 3600 rpm.

This is a durable and versatile engine that features an adjustable throttle and a recoil start starting system.

110086 is used in a wide range of applications, including pressure washers, water pumps, garden equipment, industrial equipment, and others.

Features of the 110086 Engine

• Dual-element air filtration system helps keep the engine running cool, even on dusty jobsites.
• Low-friction cast iron cylinders prevent heat from building up.
• Runs quiet with industrial-strength mufflers and shields for low-noise operation.
• Comes standard with a low-oil safety shutdown that prevents operation when oil levels are low.
• Integrated fuel filter housing conveniently located for easy maintenance.

Specifications

Engine Displacement: 420cc

Bore x Stroke: 3.54 in. x 2.6 in. (90 x 66mm)

Net Power: 9.0 kW @ 3600 rpm

Net Torque: 27 Nm @ 2800 rpm

Oil Tank Capacity: 37.12 fl. oz.

Fuel Tank Size: 2.0 gal.

Dimensions:

Length: 17.25 in.

Width: 16 in.

Height: 17.9 in.

Dry Weight: 67 lbs.
