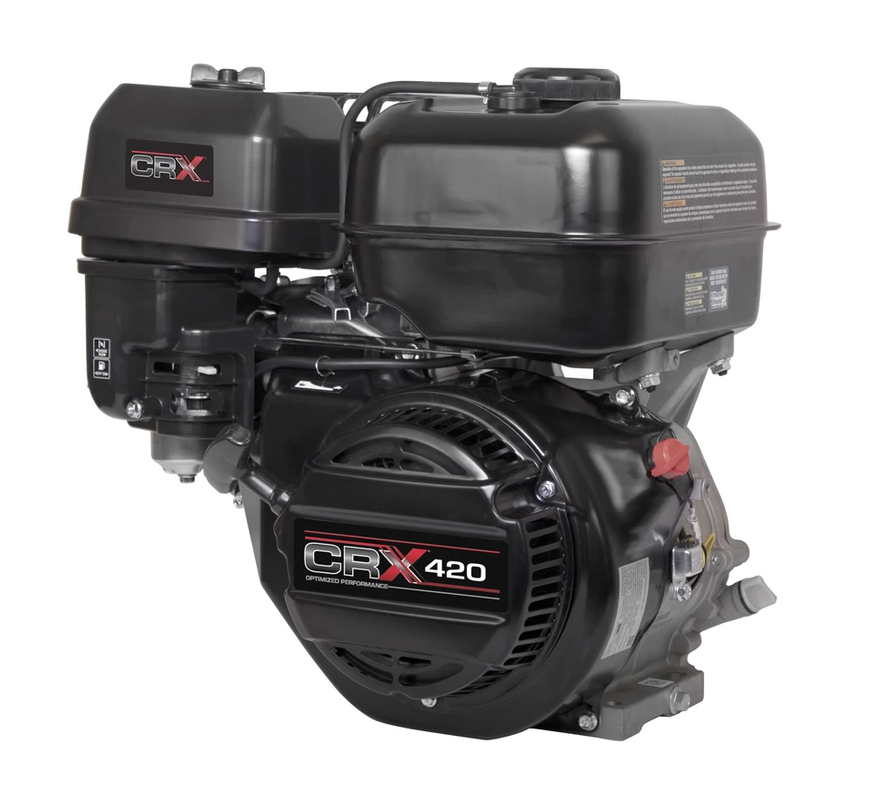

110071 Single-Cylinder CRX420 Engine - 50 State

The 110071 is a CRX 50-State engine that is rated at 420cc.

Engine 110071 is a variation of the CRX420 series of large single-cylinder engines, providing durability and performance to a wide range of applications.

This 50-State CRX engine is air cooled and comes equipped with a dual-element air filtration system that keeps the engine up to performance at dusty jobsites.

Features of the 110071 CRX420 Engine

• Utilizes industrial-strength mufflers and shields to keep the engine's operation sound low.
• Built to last with durable and heavy-duty steel parts.
• Protected from dust and debris by a dual-element air filtration system.
• Runs cool even during extreme applications thanks to the low-friction cast iron engine cylinder.
• Includes a durable steel fuel tank that is powder-coated for corrosion resistance.
• Integrated forged-iron crankshaft and heavy-duty steel ball bearings keep vibrations while operating low.
• Features an automatic low-oil safety shutoff system that detects when the oil is low and prevents operation to protect the engine.

Specifications

Engine Displacement: 420cc

Net Power Rating: 9.0 kW @ 3600 RPM

Net Torque Rating: 27 Nm @ 2800 RPM

Bore x Stroke Size: 3.5 in. x 2.6 in.

PTO Size: 1 in.

PTO Rotation: Counterclockwise

Fuel Tank Capacity: 2.0 gal. (256 fl. oz.)

Oil Capacity: 37.12 fl. oz.

Exhaust Emissions: 50-State

Dimensions:

• Height: 17.9 in.

• Width: 16 in.

• Length: 17.25 in.

• Weight: 67 lbs. (Dry Weight)
