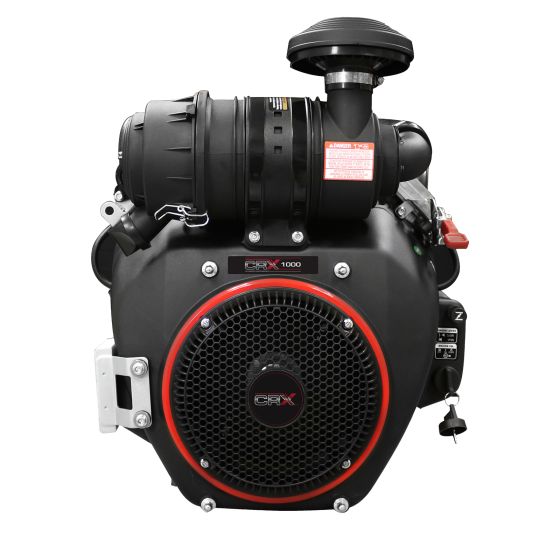

110060 CRX1000 49-State V-Twin Engine with 20 Amp Alternator

The 110060 is a 49-State CRX1000 engine rated at 32 HP. This CRX V-Twin engine's design is built to deliver the power and durability needed for commercial and industrial applications.

This engine is commonly used in commercial garden equipment, trailer-mounted pressure washers, water pumps, agricultural equipment, and more.

Features of the 110060 CRX1000

• Built with full pressure lubrication for smooth operation.
• The oil filter and external oil cooler extends oil lifespan while reducing wear.
• Cyclonic air filiation systems prevent dust and other particulars from clogging the air intake.
• Cast iron cylinders and stabilizing ball bearings reduce friction wear and tear.
• Low oil automatic shutdown prevents damage to the engine.
• Industrial-strength mufflers and shields keep sound quality high and sound volume low.

Specifications of the 110060 Engine

Net Power: 32 HP @ 3600 RPM

Net Torque: 71 Nm @ 2800 RPM

Alternator Output: 12V, 20A, 240W

Compression Ratio: 9.0:1

Engine Displacement: 999cc

Bore Size: 3.54 in.

Stroke Size: 3.09 in.

Oil Capacity: 84.48 fl. oz.

Dimensions:

Length: 22.5 in.

Width: 19.5 in.

Height: 20.5 in.

Dry Weight: 135 lbs.
