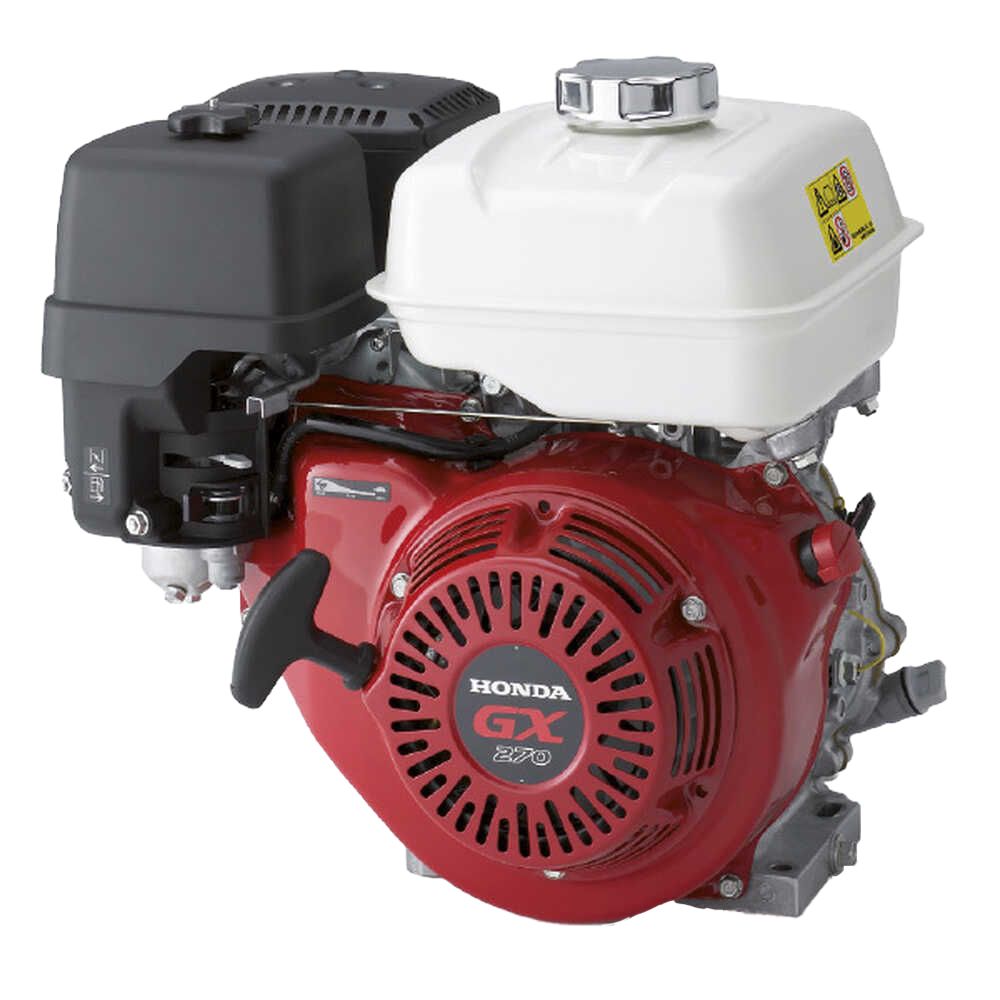

109974 GX270 Honda Engine With Pull-Cord Starter

The 109974 is a GX270 series Honda engine designed with a focus on durability, reliability, and combustion efficiency. It uses an overhead valve design that boosts emissions performance and keeps fuel use low.

Honda's 109974 engine is built for heavy-duty applications, like in commercial pressure washers, gardening equipment, generators, pumps, and more.

Features of the 109974 GX270

• OHV design delivers boosted combustion efficiency.
• Comes equipped with a variable ignition timer (digital CDI) for a high power output.
• Easy to start using the engine's ergonomic pull-cord handle.
• Meets environmental legislation requirements, certifying it for 50-State use.
• Features a ball-bearing stabilized crankshaft for low-vibration operation, reducing wear.
• Uses a horizontal engine shaft.

Specifications of the 109974 Engine

Net Power: 8.4 HP @ 3600 RPM

Max. Net Torque: 1.94 kgfm @ 2500 RPM

Compression Ratio: 8.5:1

Engine Displacement: 270cc

Fuel Tank Capacity: 1.4 gal.

Engine Oil Capacity: 37.19 fl. oz.

Dimensions:

Length: 15 in.

Width: 16.8 in.

Height: 16.6 in.

Weight: 56.87 lbs.
