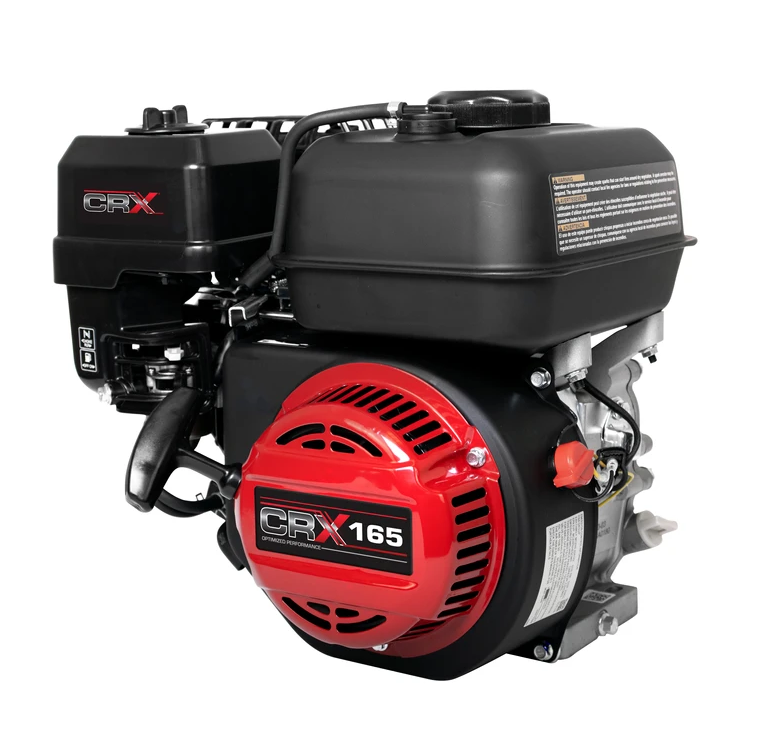

109966 Red & Black 163cc Engine Rated at 3200 Watts, 50-State

The 109966 is a 163cc 50-State single-cylinder engine. Part of the CRX165 line of engines, the 109966 features an industrial-strength design and a dual-element air filtration system for improved airflow.

These engines have a wide range of applications, though the 109966 is most commonly used as a pressure washer engine.

This CRX engine also features a forged iron crankshaft, steel ball bearings, and a low oil safety shutdown feature.

Features of the 109966 50-State Engine

• Industrial mufflers and shields reduce noise while the engine is in operation.
• The choke and fuel shut-off valve have integrated fuel filter housing.
• Heat-reducing and efficient cast iron piston cylinders reduce friction and extend the engine's life.
• Built to survive tough conditions with a heavy-duty blower, a steel fuel tank, and heavy steel ball bearings.

Specifications

Engine Displacement: 163cc

Engine Wattage: 3200 watts

Bore x Stroke: 2.68 in. x 1.77 in.

Fuel Tank Size: 1.0 gallon

Net Power: 3.4 kW @ 3600 RPM

Net Torque: 8.9 Nm @ 2600

Oil Capacity: 0.64 qt.

Shaft Rotation: Counterclockwise
