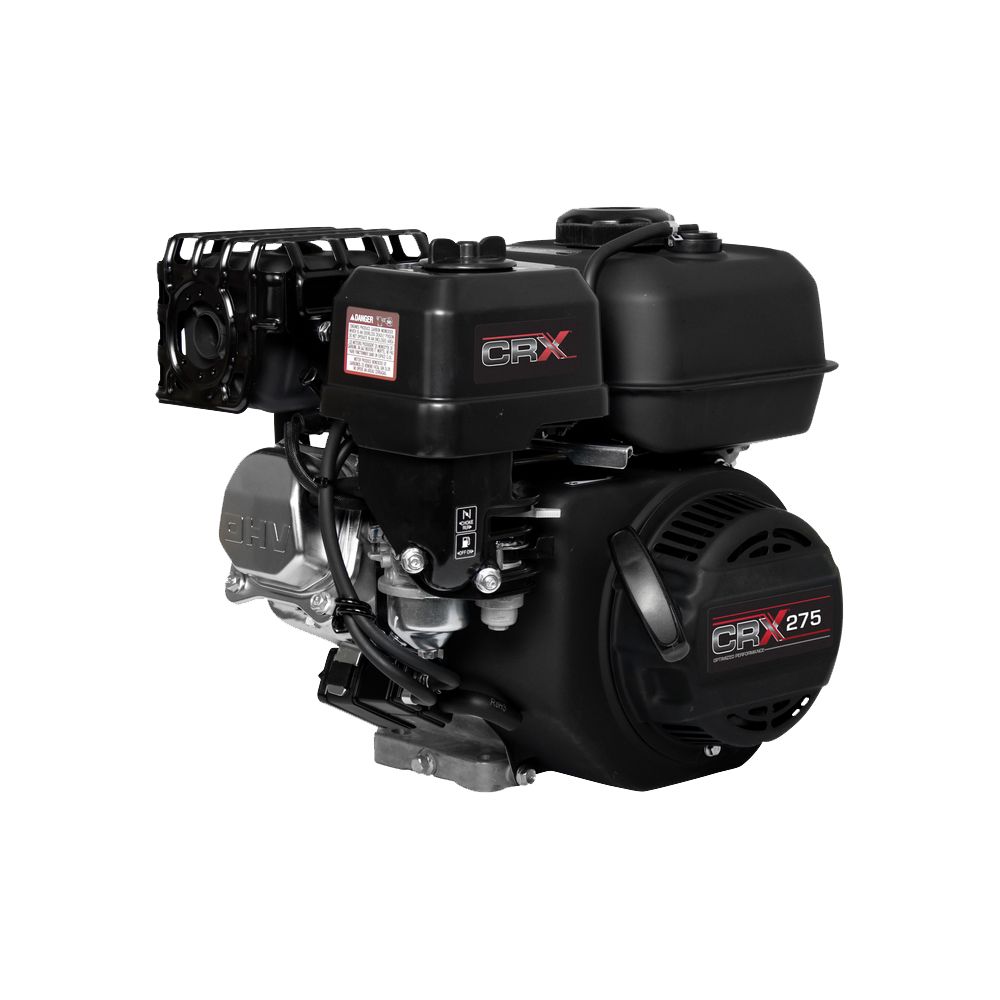

100845 Single-Cylinder CRX275 Engine with Horizontal Shaft

The 100845 is a single-cylinder engine from CRX, designed to deliver reliable performance with heavy-duty outdoor equipment.

This engine is a 50-State variation on the CRX275 engine model. It features industrial-strength mufflers and shields, a dual-element air filtration system, and a heavy-duty steel fuel tank.

Features of the 100845 CRX Engine

• Built for long-lasting performance with low-friction cast iron cylinders and air filters.
• Includes a low-oil shutdown system that prevents engine operation when oil levels are low.
• The forged iron crankshaft and steel ball bearings reduce engine vibrations, even on the toughest jobs.
• Runs quiet thanks to heavy-duty mufflers and shields.
• Starts using a pull-cord recoil starter with black recoil housing.
• Used in a wide range of applications, such as pressure washers, water pumps, industrial equipment, and more.

Specifications

Displacement: 272cc

Net Power: 5.8kW @ 3600 RPM

Net Torque: 15.5 Nm @ 2800 RPM

Fuel Tank Size: 1.2 gal.

Oil Capacity: 26.88 fl. oz.

Bore x Stroke: 2.95 in. X 2.42 in.

Dimensions:

Height: 15 in.

Width: 14 3/4 in.

Depth: 14 in.

Approx. Dry Weight: 41 lbs.
