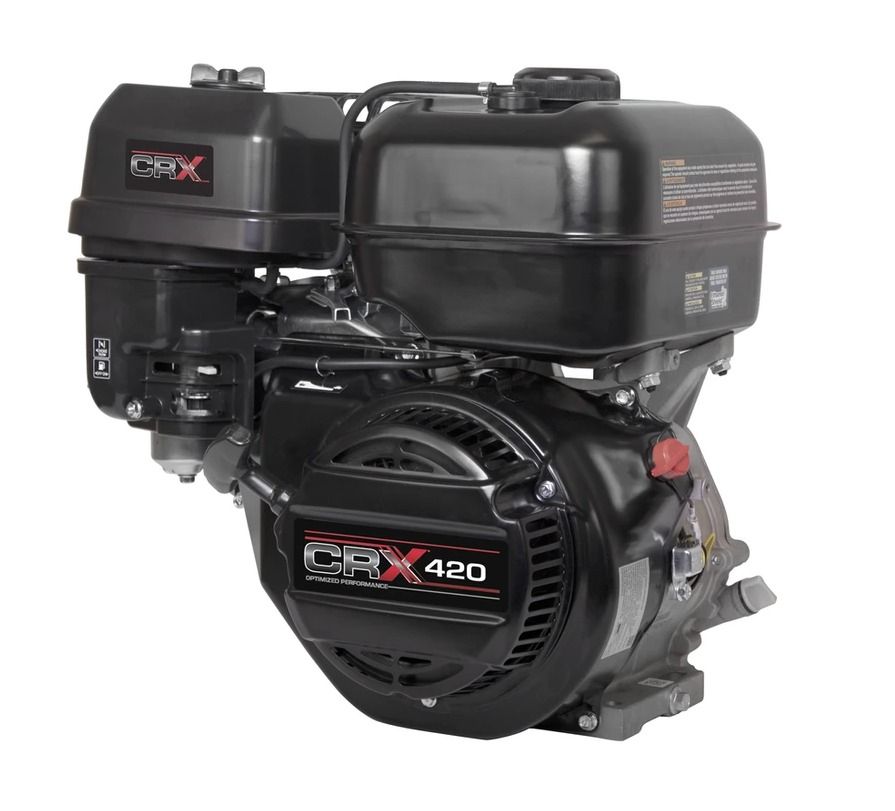

100702 CRX 420cc Horizontal Shaft Engine, 49-State, Black
Out Of Stock
Part Number
100702
$469.99
The 100702 is a Simpson CRX420 engine designed for commercial use in various outdoor equipment, including log splitters, agricultural equipment, and woodchippers, but is most commonly used in pressure washers.
This engine is the largest in Simpson’s single-cylinder line of engines and was built with high-quality, premium materials.
The 100702 features a low-oil shutdown sensor, pull-cord recoil starter, dual air filtration system, and a 2-gallon fuel tank.
Note: The 100702 CRX420 is a 49-State engine - not available for sale in California.
Features Of The CRX420 100702 Engine:
- Equipped with a dual-element air filter design that prevents dust from clogging the engine’s air intake.
- Highly durable steel fuel tank that’s powder-coated for added corrosion resistance.
- Heavy-duty steel housing protects the engine’s blower and recoil assembly.
- Built-to-last industrial mufflers and shields for low operating noise levels.
- Easy air flow throughout the engine with the high-quality air-cooled design.
- Operates exceptionally under demanding conditions with the forged iron crankshaft and heavy-duty steel ball bearings designed for low vibration.
100702 CRX420 Specifications:
Net Power Rating: 12 HP at 3600 RPM
Net Torque: 27 Nm at 2800 RPM
Engine Displacement: 420cc
Engine Oil Capacity: 37.12 fl. oz.
Fuel Tank Capacity: 2 gal.
Bore x Stroke: 3.54" x 2.60" (90 x 66mm)
Compression Ratio: 8.3:1
Dimensions: L 17.25" x W 16" x H 17.9"
