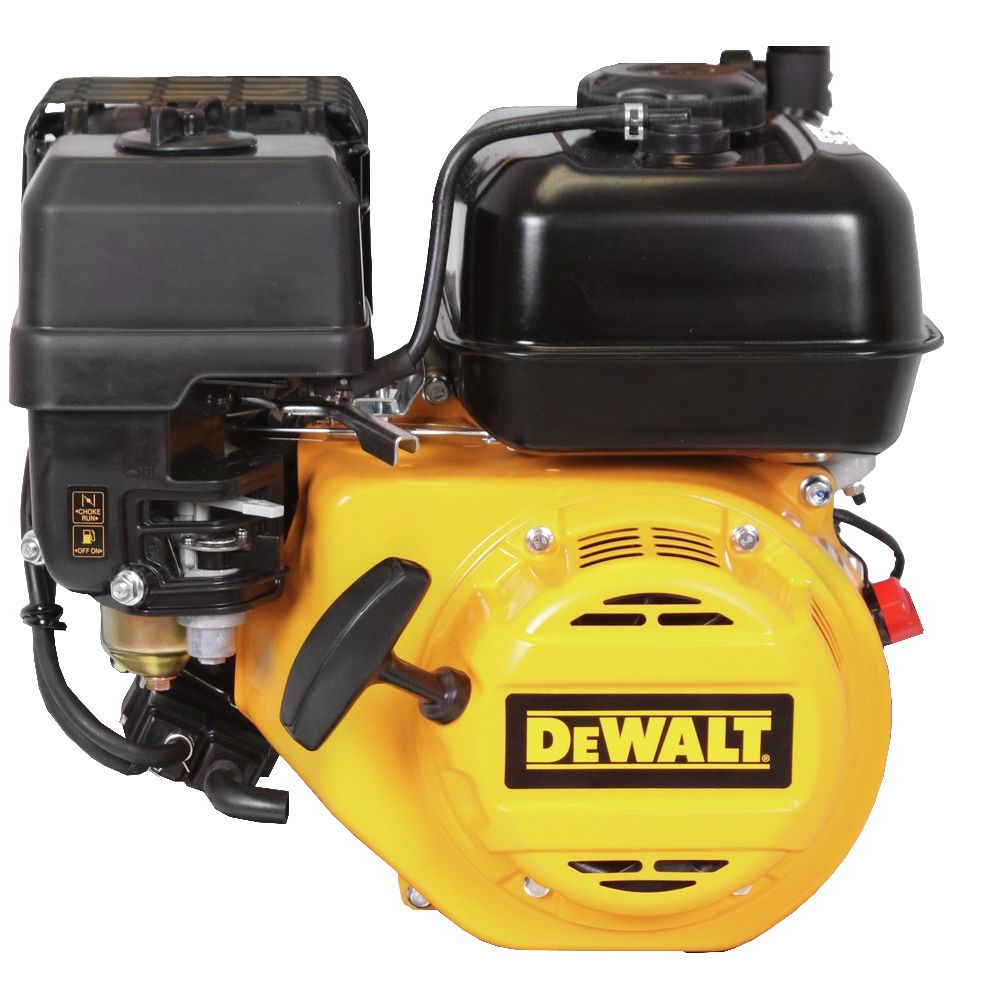

100690 DeWalt CRX210 49-State Engine with Yellow Housing, 4100 Watts

The 100690 is an air-cooled CRX210 series engine with a rating of 4100 watts. This engine features a heavy-duty steel fuel tank and a low oil safety shutdown, allowing for long-term industrial use with a wide range of applications.

This engine has a ball bearing stabilized crankshaft that prevents vibrational wear and dual air filters that help keep the 100690 at peak performance, even on dusty jobsites.

Note: The 100690 is a 49-State engine that is not for sale in the State of California.

Features of the 100690 Engine

• Built with industrial tough mufflers and shields, keeping sound levels low.
• Heavy-duty ball bearings keep the crankshaft stabilized, reducing noise and vibrational wear.
• Low oil automatic shutdown sensors automatically shut down the engine when oil levels are low.
• Internal components are protected by a heavy-duty steel blower housing.
• Cast iron cylinder decreases friction, reducing wear over time.
• Uses a commercial-style dual air filtration system to keep the air intake clear.

Specifications of the 100690 CRX210 Engine

Net Power Rating: 5.5 HP at 3600 RPM

Net Torque: 12.3 Nm @ 2800 RPM

Compression Ratio: 8.6:1

Gasoline Fuel Tank Size: 1.0 gal.

Engine Oil Capacity: 20.48 fl. oz.

Engine Displacement: 208cc

Bore x Stroke Size: 2.76 in. x 2.13 in.

Dimensions:

Length: 14.25 in.

Width: 12.75 in.

Height: 13.75 in.

Dry Weight: 33 lbs.
