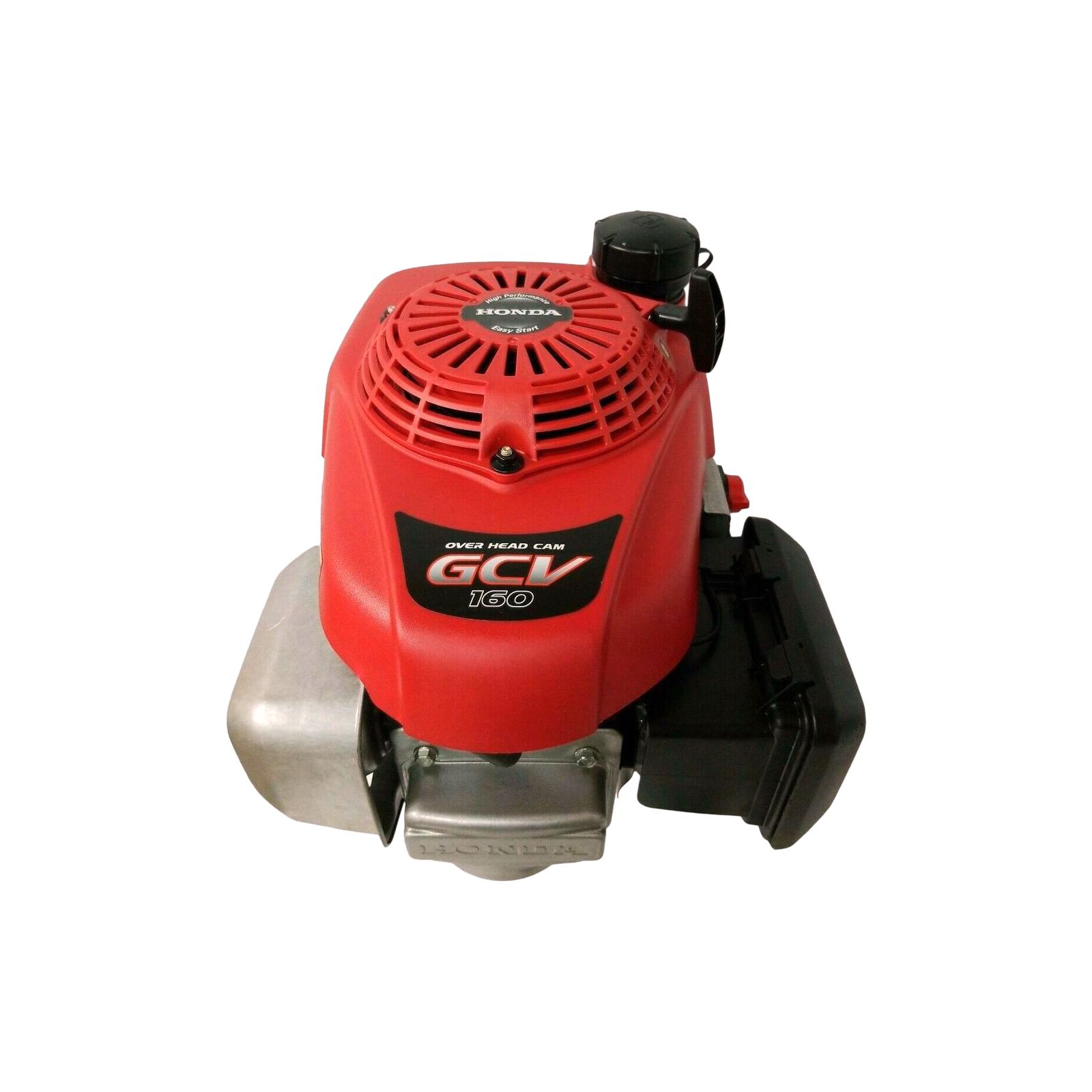

100308 GCV160 Honda Engine With Red Recoil Starter, OHC
Out of Stock
Out of Stock
The 100308 is a Honda 4-stroke gasoline engine with an overhead valve design and a red recoil starter. With a lightweight and compact build, the 100308 is perfect for use in pressure washers, trash pumps, water pumps, and many other small engine applications.
Honda's 100308 GCV160 engine has several features that enhance reliability and longevity, including a ball-bearing stabilized overhead camshaft, and an easy-to-access oil drain and spark plug.
This GCV160 Honda engine is rated for a net power output of 4.4 horsepower and has a displacement of 160cc.
Features of the 100308 Honda Engine
- Internal components are fully lubricated for long-lasting performance.
- Built from high-quality, precision-engineered components.
- Uses a pull-cord recoil engine starter for simple operation.
- Comes equipped with a single-element air filtration system.
- Precision-engineered components reduce wear over time from vibrations.
- Oil drain and spark plug are easily accessible for maintenance.
- A charcoal canister comes built into the gas cap, reducing engine emissions.
- Features a unique general-purpose internal timing belt, reducing engine noise.
Specifications of the 100308
Net Power Output: 4.4 HP at 3600 RPM
Net Torque: 6.9 lb-ft. at 2500 RPM
Compression Ratio: 8.5:1
Engine Displacement: 160cc
Engine Oil Capacity: 31.36 fl. oz.
Engine Fuel Tank Capacity: 18.56 fl. oz.
Bore Size: 2.5 in.
Stroke Size: 2.0 in.
Approx. Engine Dimensions:
Length: 14.4 in.
Width: 13 in.
Height: 13.8 in.
Dry Weight: 23.1 lbs.
Related Items
No Reviews Yet
Alternate Part Numbers
Honda Engine Model: GCV160LA0-N5R
Honda Engine Series: GCV160
Part Number: 100308
