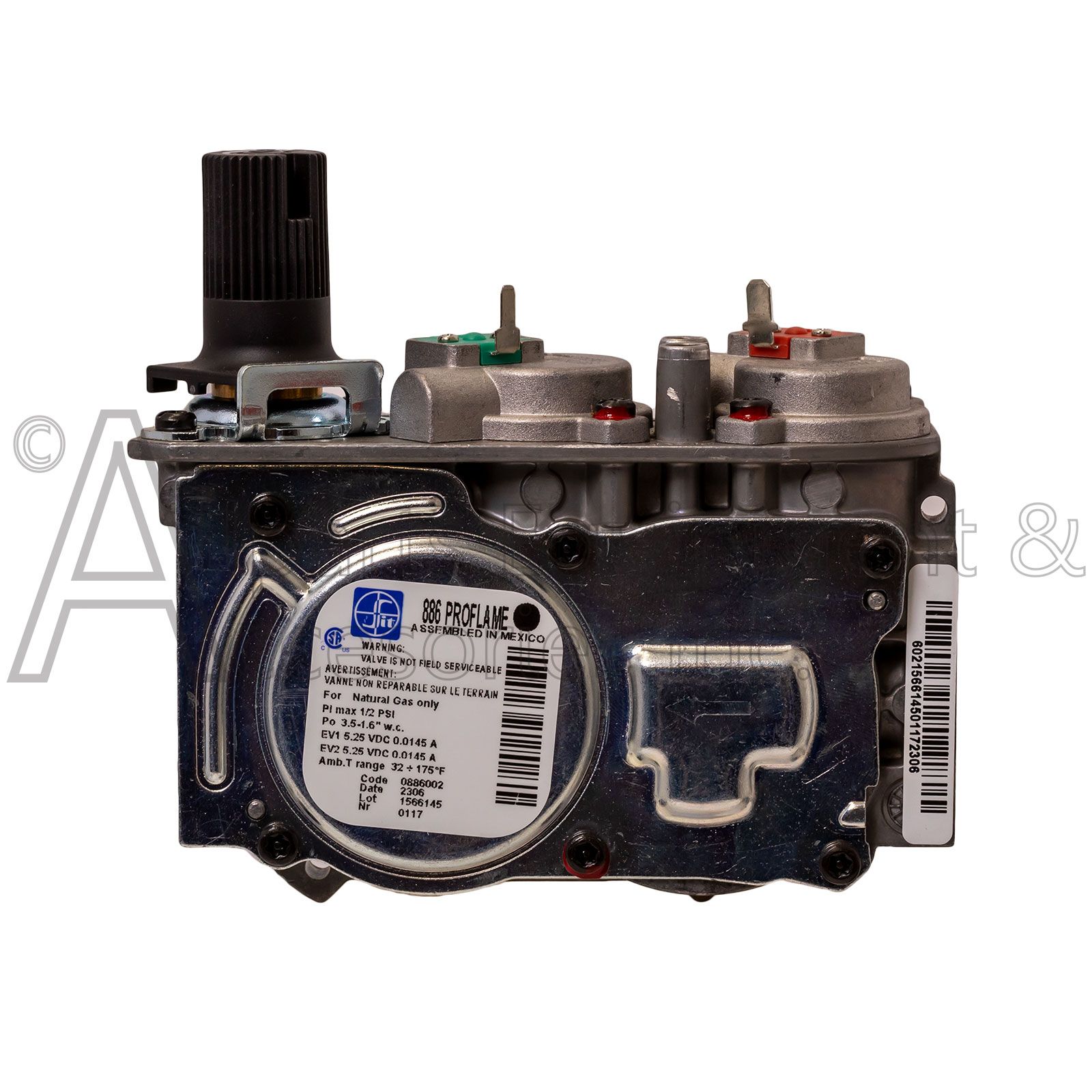

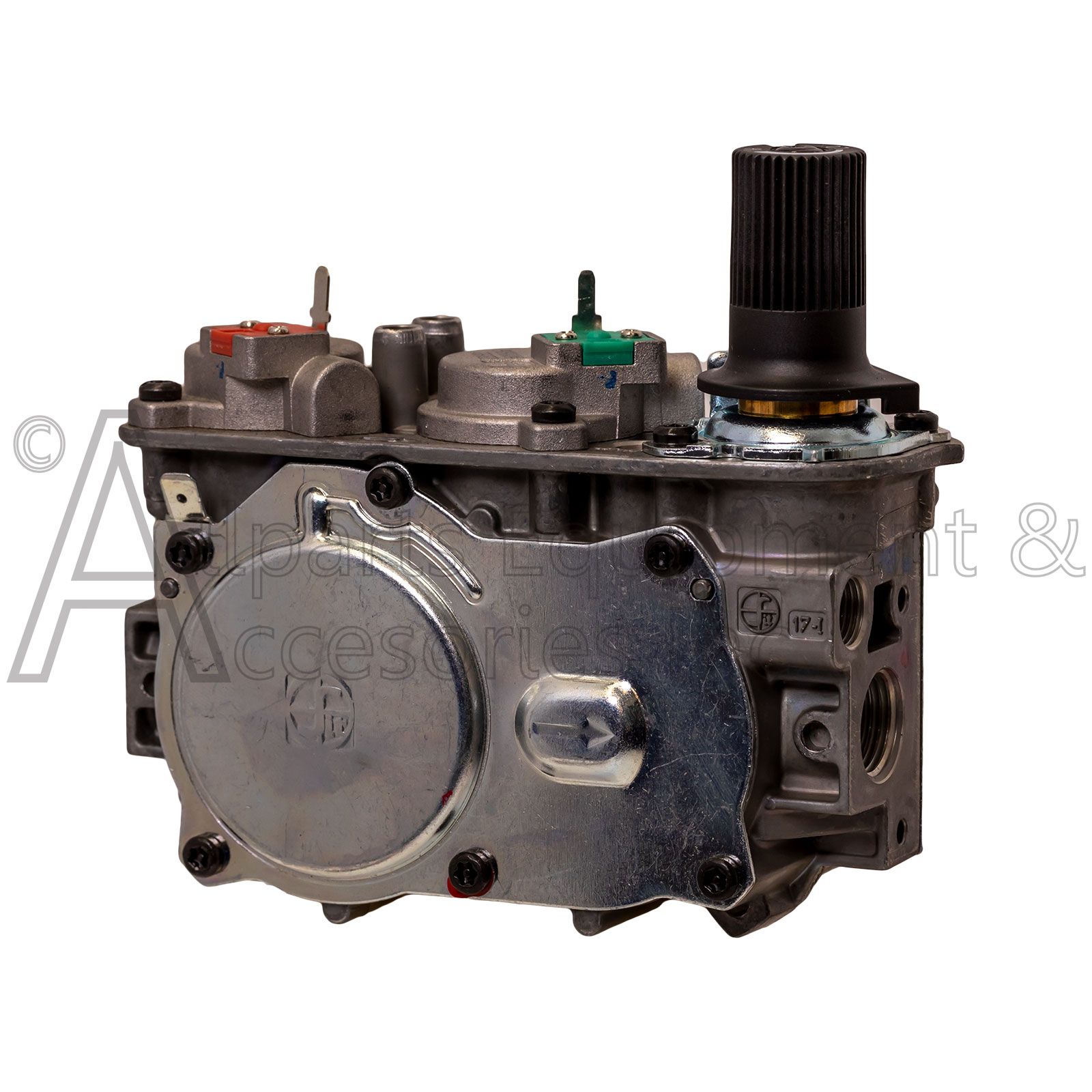

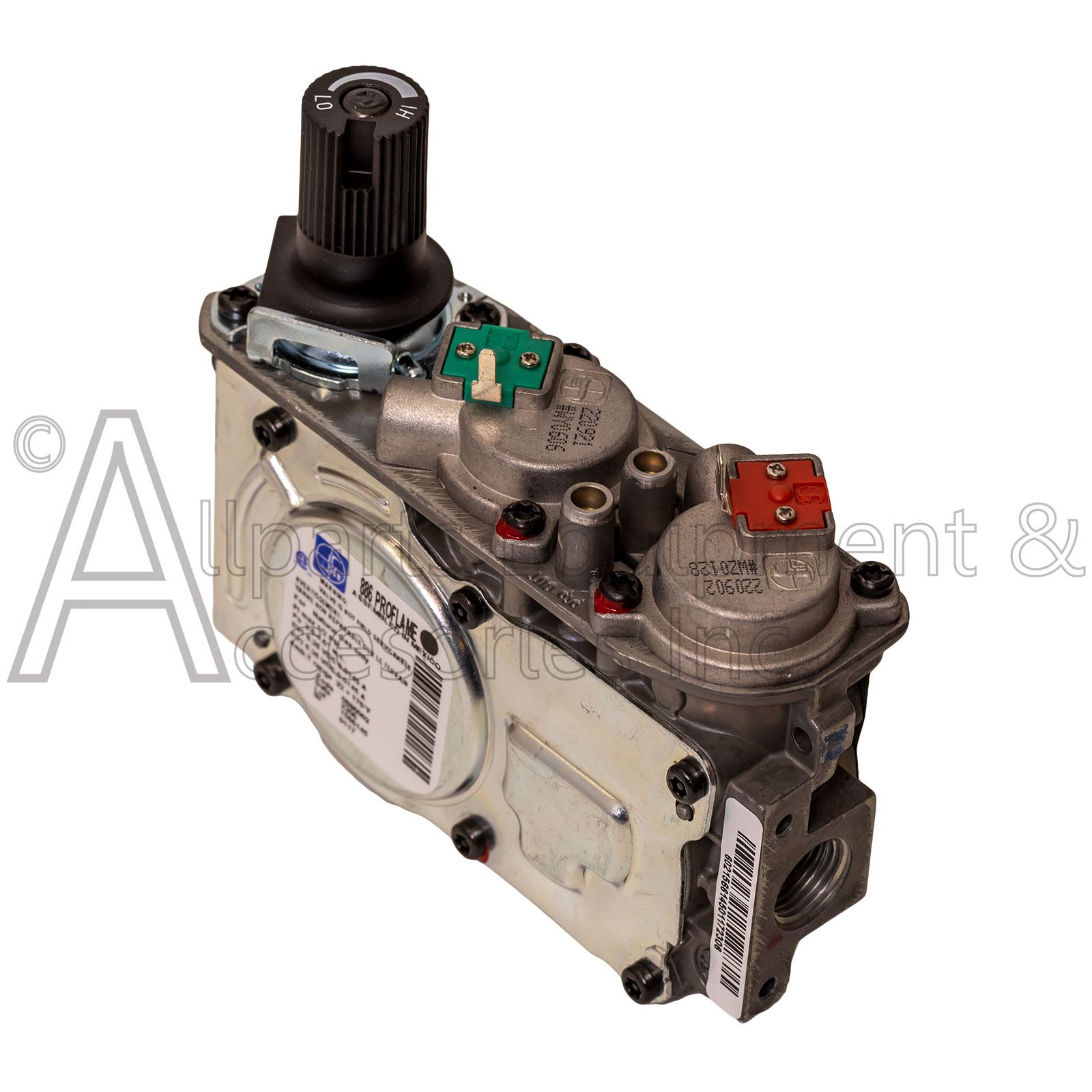

0886002 Sit Proflame 886 Series Natural Gas Valve with Manually Adjusted Hi/Lo Knob

The 0886002 is an 886 series SIT Proflame natural gas valve with a manual Hi-Lo 1.6 to 3.5 flame adjustment knob.

This electronic gas valve is designed for use with natural gas heating appliances that use an IPI ignition with a back-up battery.

The SIT Controls 886 Series Proflame gas valve fits multiple fireplaces, gas log sets, stoves, and other natural gas direct vent appliances.

Specifications for the 0.886.002 Gas Valve

Gas Type: Natural Gas

Max. Capacity: 60,000 BTU/Hr. @ 1 in. w.c pressure drop

Max. Pressure Setting: 3.5 in. w.c ± 0.3

Min. Pressure Setting: 1.6 in. w.c ± 0.4

Maximum Inlet Pressure: 1/2 PSIG

Ambient Operating Temperature: 35° - 175°F

Valve Connection for Pilot: 7/16 UNS x 1/4 in.

Inlet Valve: 3/8 in. NPT

Outlet Valve: 3/8 in. NPT

Electrical Information

Voltage: 5.25 V DC

Amps: 0.0145 A

Coil Resistance: 362 Ω ± 10% @ 68°F
