0.199.050 Pilot Assembly Electronic Ignition SYM Natural Gas 2 Flame Hood Top Mount
In stock
Part Number
0.199.050
$65.90
0199050 Pilot Assembly is a SIT Controls for SYM IPI electronic ignition natural gas pilot assembly.
This 0199050 Natural Gas NG IPI Electronic Ignition pilot assembly is used on many different manufactures' direct vent fireplaces including Lennox IHP, Empire Comfort Systems, Travis Industries, Napoleon, and multiple other manufacturers of direct vent appliances.

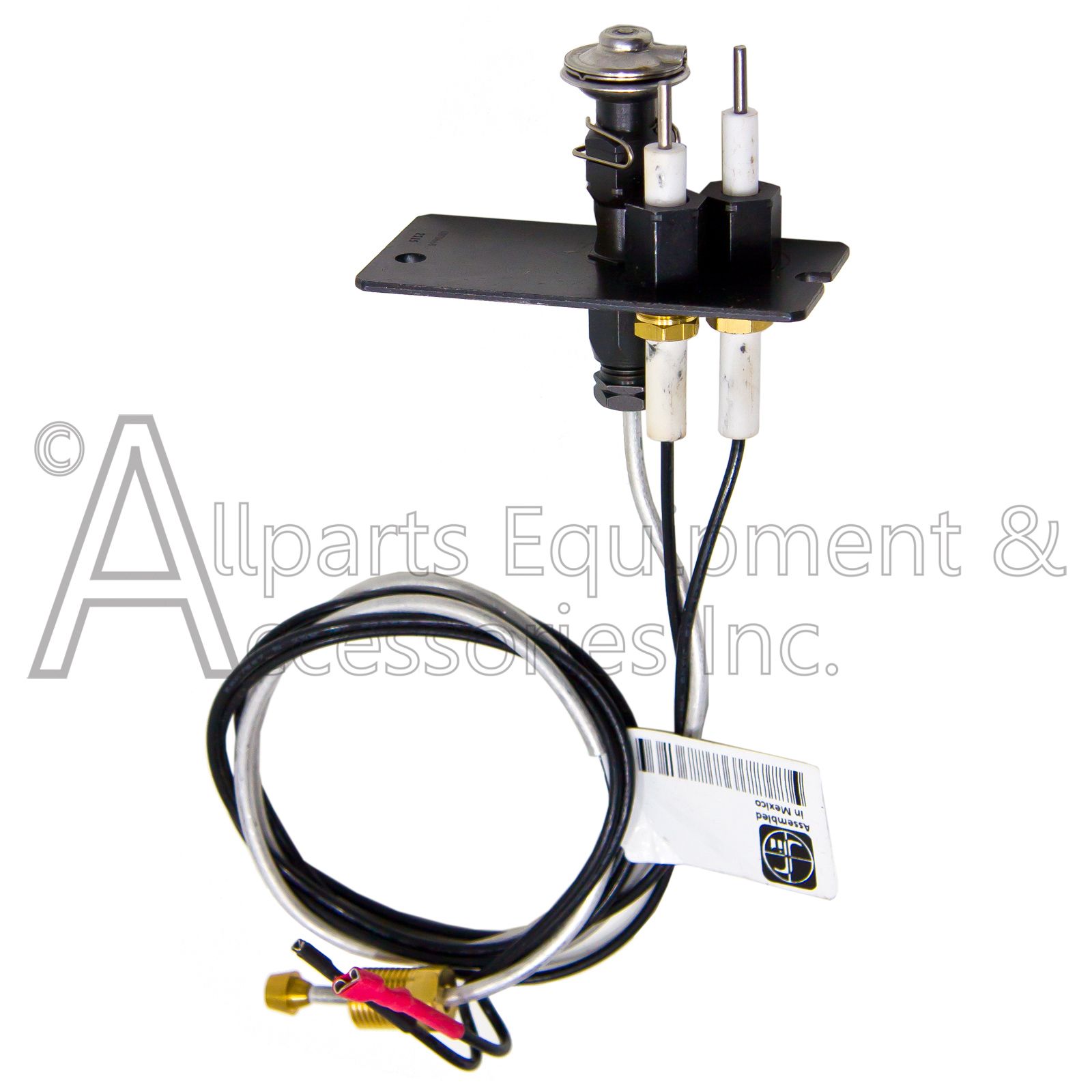

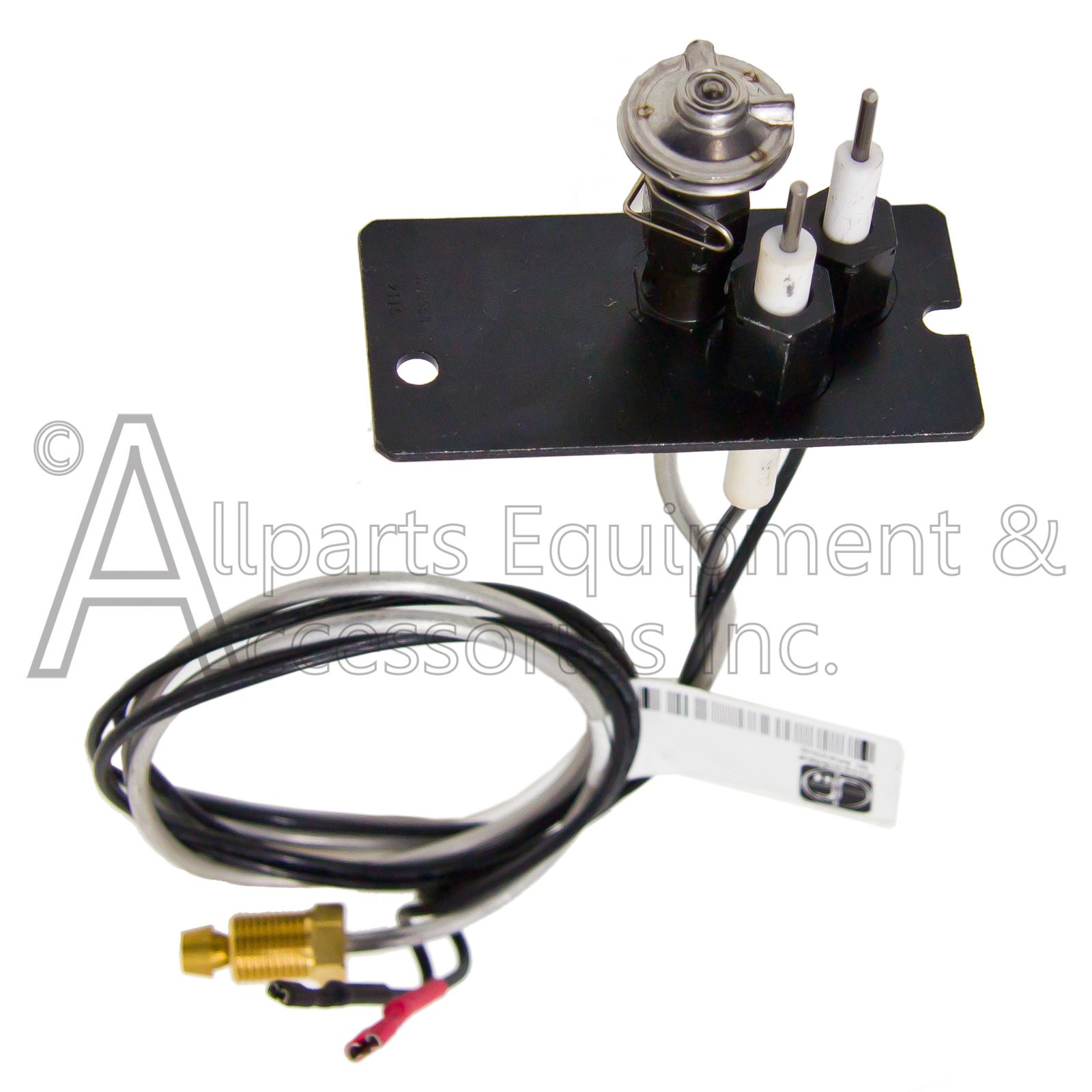

The SIT Controls 0199050 Pilot consist of the following components:
Top-convertible side mount pilot with the primary air hole located below the bracket
Pilot Hood with Top-convertible 2-flame (IPI orientation)
Injector with #62 orifice

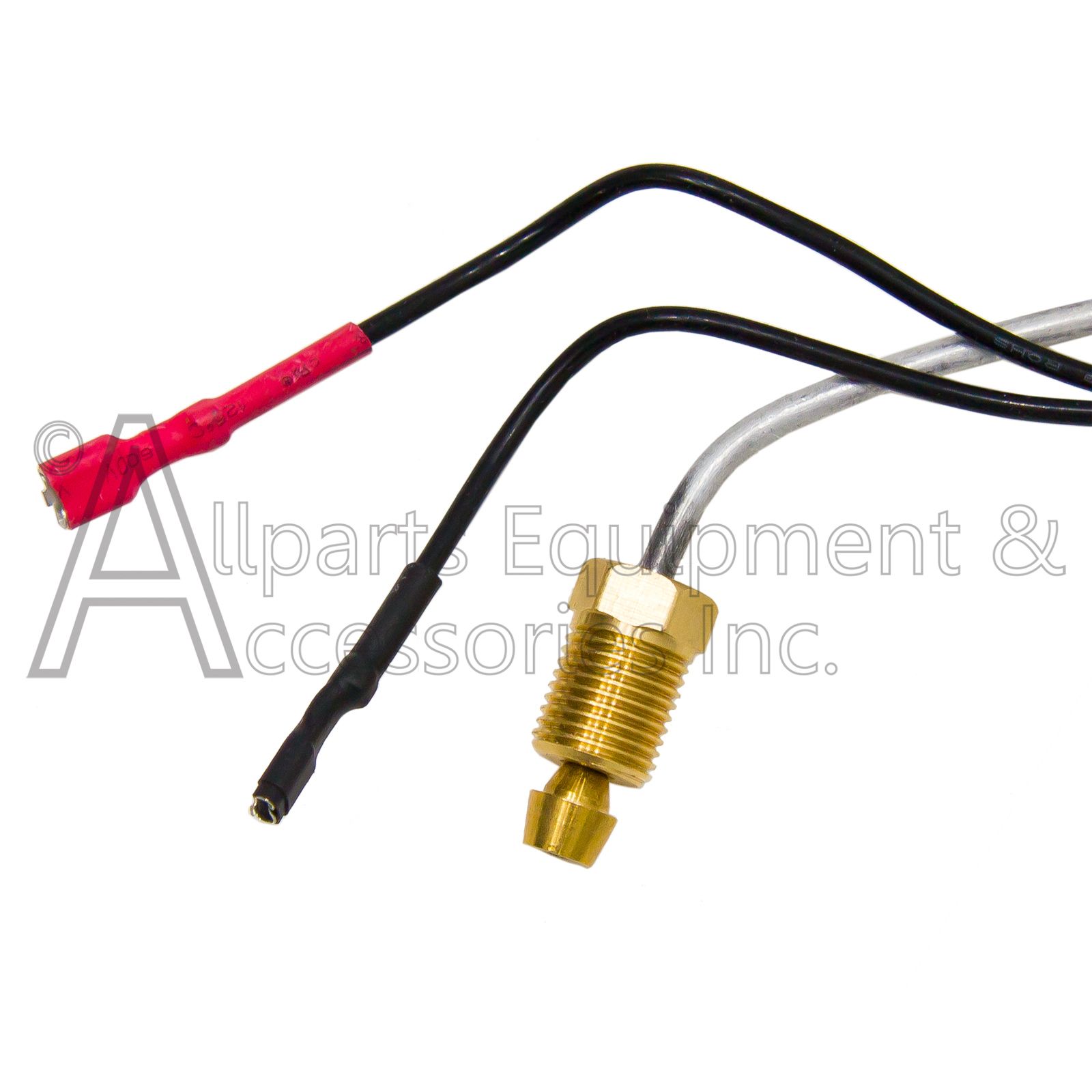

Spark Electrode and Cable for target style electrode/long ceramic with .125” female terminal 600mm long.
Sensing Electrode &Cable for sensing electrode/long ceramic with Teflon coated cable rated to 250°C and insulated pre-tinned brass 3/16” female fast-on connector Length = 610mm;
Electrode Fixing Nut for attaching electrode to pilot bracket
Pilot tube 1/8” diameter aluminum tubing with 24” overall length, with attached mild steel ferrule and 7/16” – 24 UNS- 2B valve fixing nut
