0.584.302 SIT Digital Fireplace Burner Control for Proflame Series Components
In stock
Part Number
0.584.302
$102.10

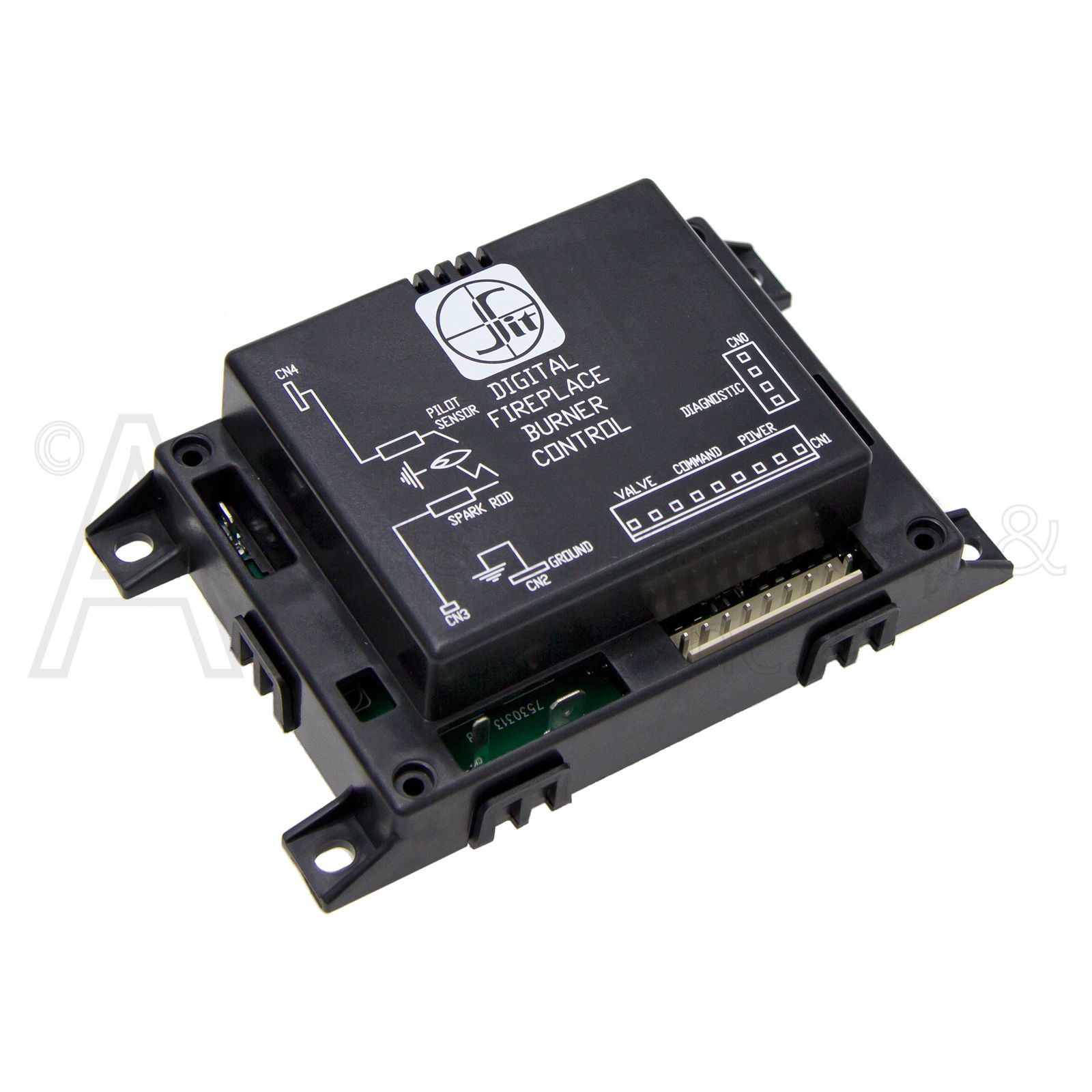

The 0.584.302 DFC is a digital fireplace burner control from Sit Controls and is used in conjunction with other Sit Proflame electronic ignition components for Natural Gas and LPG Propane direct vent fireplaces, gas logs sets, and direct vent stoves.
This SIT Digital Fireplace Burner Control has the following features:
This SIT Digital Fireplace Burner Control has the following features:
- Measures approximately 5 3/16 x 3 3/16 total width x total height.

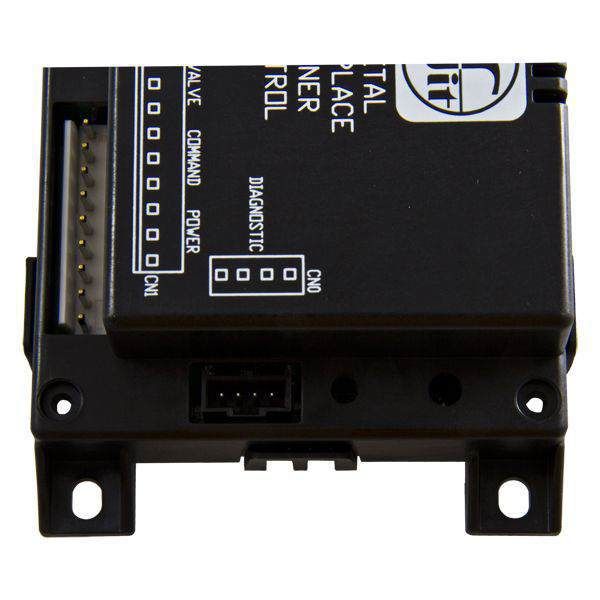

- CN0 4 Pin Diagnostic connection
- CN1 9 Pin Wire harness connector for Valve, Command, and Power.

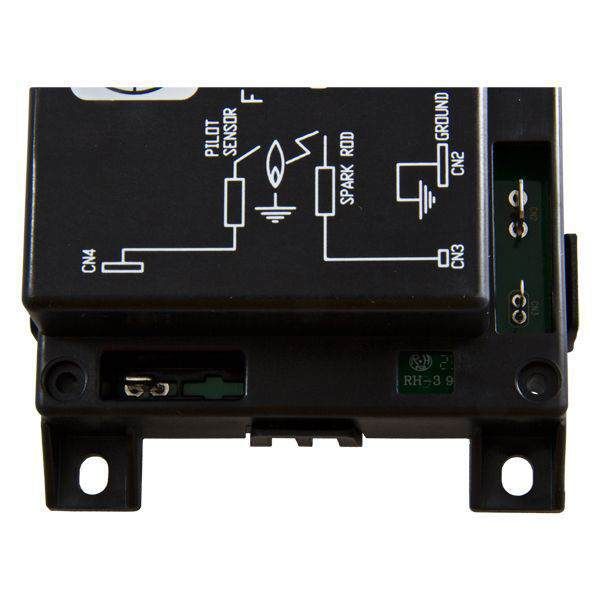

- CN2 1/4 Male tab ground spade connector.
- CN3 1/8 Male tab Ignition Spark Rod Connector
- CN4 1/4 Male tab Pilot Senor spade connector.
- DC IN: 7Vdc-200Ma max.
- BB IN: 6Vdc-200mA max.
- Preset FFR to .08 Seconds.

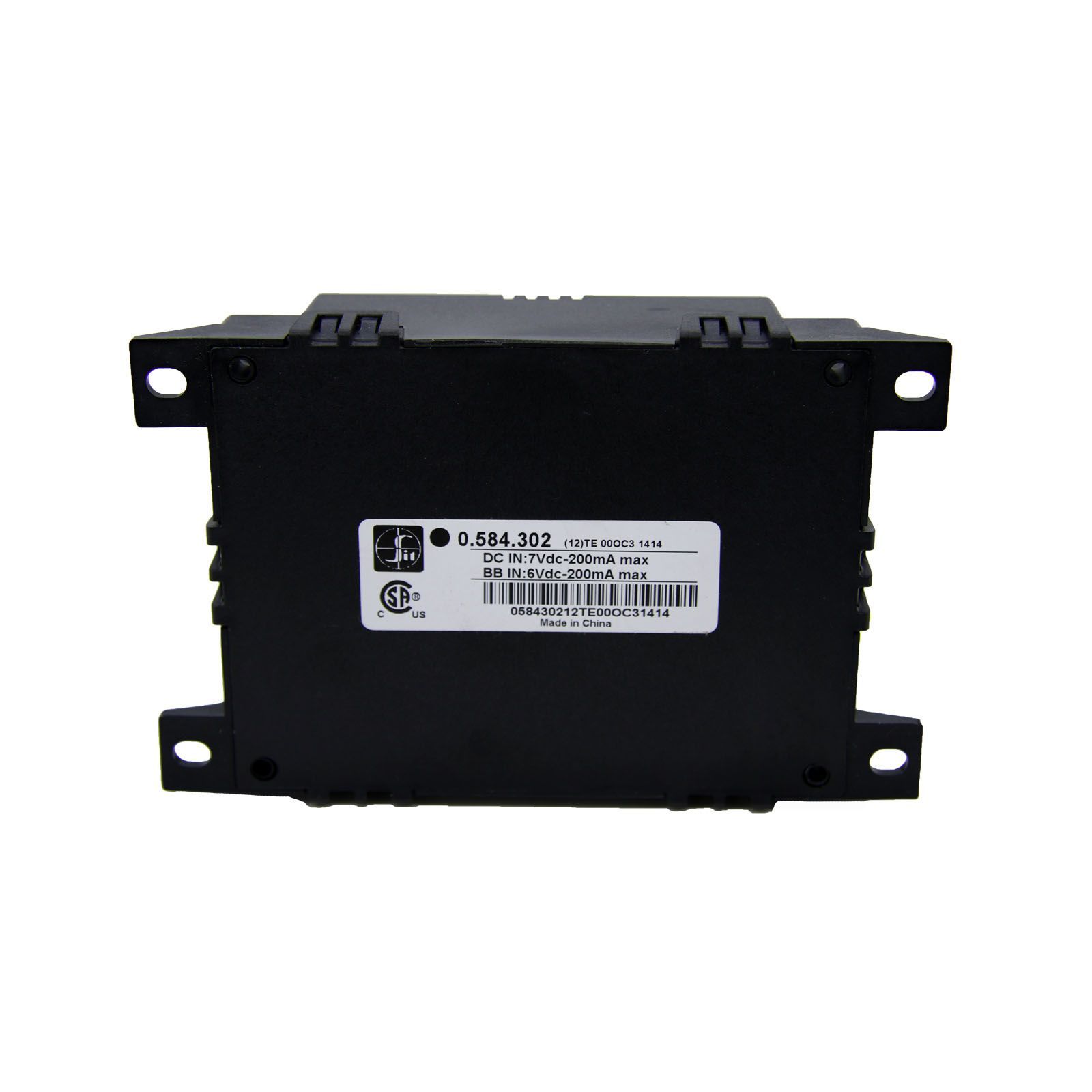

- 0.584.302 Labeling
This item was used by IHP, Lennox, Regency, Superior, Empire Comfort Systems, Hearthstone, Mendota, Travis Industries direct vent fireplaces, direct vent stoves, direct vent gas log sets, and other gas appliances.
Known Cross References for the 0.584.302 and 0584302 DFC Digital Fireplace Burner Control Module are as follows:
Enviro: 50-2781
Hampton: 911-012
Hearthstone: 7211-101
Jotul: 222924
Kingsman Fireplaces: 1002-P302si
Marquis Fireplaces: 1002-P302si
Regency: 911-012
Mendota 05-02-00352 DFC Control
Hearthstone 7211-101, 72111010 DFC Control
Kozy-Heat 700-552 DFC Control
We are sorry, but the Digital Fireplace Burner Control are NOT RETURNABLE for refunds after the package has been opened.
These items come with a 90-day warranty for exchange only.
Please look at all pictures carefully and study your manual before purchasing this item because no returns for refunds will be accepted on any electrical components.
This Sit 0.584.302 Digital Fireplace Burner Control Module in the Sit Controls Proflame series IPI DFC controller with internal FFR preset to .08 seconds and was used for various fireplaces and gas log systems with electronic ignitions system.
Here is a more detailed description of some of the features of the 0.584.302 DFC:
Electronic ignition:
The Digital Fireplace Burner Control electronic ignition system provides a quick and easy way to start your fireplace.
Simply press the button on the remote control, and the fireplace will be up and running in seconds.
Adjustable flame height:
The 0.584.302 Digital Fireplace Burner Control allows you to adjust the flame height of your fireplace to suit your needs.
Whether you want a low, cozy flame or a high, roaring flame, you can easily achieve the desired effect.
Safety features:
The 0.584.302 Digital Fireplace Burner Control has a number of safety features to prevent accidental ignition and carbon monoxide poisoning.
For example, the fireplace will not ignite if the door is open or if there is a problem with the gas supply.
Remote control operation:
The 0.584.302 Digital Fireplace Burner Control is compatible with an optional remote control that allows you to operate the fireplace from anywhere in the room.
This is a great feature for convenience and safety.
Overall, the 0.584.302 DFC is a reliable and easy-to-use fireplace control that offers a variety of features to make your fireplace experience more enjoyable.
