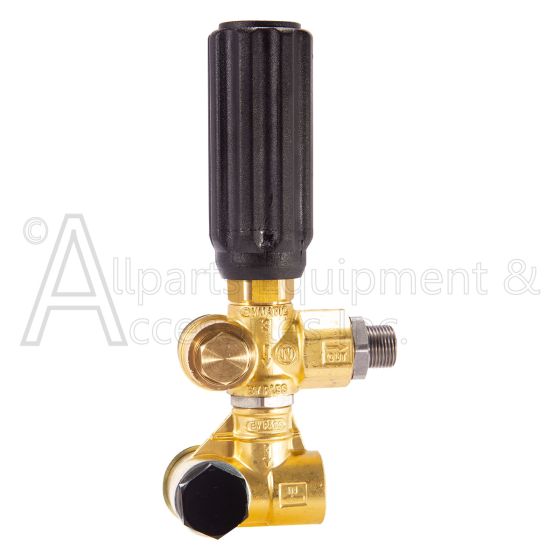

AR20242 UNLOADER VALVE GYMATIC 3B 1/2" FEMALE INLET, 3/8" MALE OUTLET
In stock
Part Number
AR20242
$109.14
The AR20242 Unloader Valve is a bolt on Regulating Valve from AR Annovi- Reverberi.
This is the AR Gymatic 3/B Series Unloader valve for RK, RKV, XT and XM Series AR Annovi-Reverberi high pressure pumps and was also used by Mi-T-M under the part number 8-0456.
The AR20242 Unloader Valve comes with the following standard features:
Fits RK,RKV, XM, XMV,XMA, Series Pumps
Max PSI: 3650
Inlet Port: 1/2" Female
Outlet Port: 3/8 Male
Max GPM: 3- 5.5GPM
By-Pass: Brass Built In By-Pass AR1540020
Steel Inlet Mounting Bolt AR1540090
Steel High Pressure Outlet Bolt AR1540080
The Gymatic 3/B Bolt on unloader was used and various models or pressure washers throughout the industry and can be found on most major brands of pressure washers.
You can also tell if you have a Gymatic Unloader valve by looking at the brass by-pass adaptor this brass piece will have GYMATIC 3 stamped into the brass housing.
This is the AR Gymatic 3/B Series Unloader valve for RK, RKV, XT and XM Series AR Annovi-Reverberi high pressure pumps and was also used by Mi-T-M under the part number 8-0456.
The AR20242 Unloader Valve comes with the following standard features:
Fits RK,RKV, XM, XMV,XMA, Series Pumps
Max PSI: 3650
Inlet Port: 1/2" Female
Outlet Port: 3/8 Male
Max GPM: 3- 5.5GPM
By-Pass: Brass Built In By-Pass AR1540020
Steel Inlet Mounting Bolt AR1540090
Steel High Pressure Outlet Bolt AR1540080
The Gymatic 3/B Bolt on unloader was used and various models or pressure washers throughout the industry and can be found on most major brands of pressure washers.
You can also tell if you have a Gymatic Unloader valve by looking at the brass by-pass adaptor this brass piece will have GYMATIC 3 stamped into the brass housing.
Service Tip
When installing this unloader valve make sure to torque the mounting bolts to the correct specs. The top outlet bolt should be torqued to 265in/lbs, and the bottom inlet bolt should be torqued to 354in/lbs.
Your typical regulating unloader valve functions as a safety device in which the regulating unloader valves control the direction of the flow of water exiting the pump. A positive displacement pump always delivers water, regardless of whether the spray gun attachment is in the open or closed position. When the spray gun is in the closed position the regulating unloader valve redirects the flow of water back through the By-Pass of the unloader and back to the inlet side of the pump. This prevents the excess buildup of high pressure and guards against the failure of component parts. Most pressure washers and carpet cleaners are installed with either a Trapped Pressure Unloader or a Flow Actuated Unloader.
