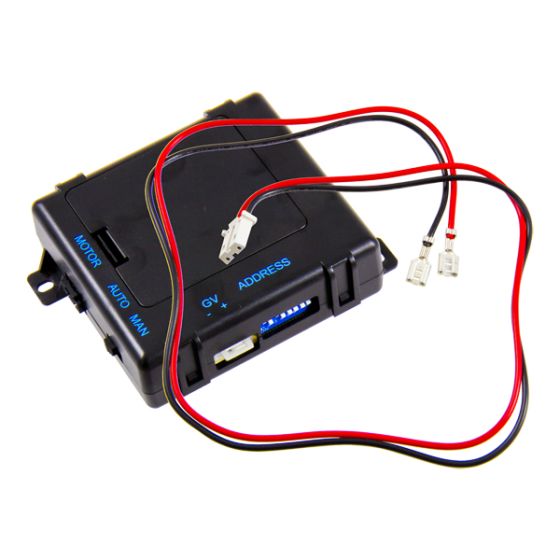

0.584.211-01 RECEIVER PROFLAME PLUS SERIES 0.584.211

Please note a new Stepper Motor will need to be order and installed by a certified installer if you are replacing the old style proflame receiver.

The new 0.584.211-01 will not work with the old style stepper motor and Red 6 Pin ribbon wire harness.

This part is considered an electrical part and cannot be returned after the item has been opened.

Below information is for reference purposes only.

How to Program Remote Receiver?

DIP SWITCH SETTINGS STOCK
(1) UP (2) DOWN (3) UP (4) DOWN (5) DOWN (6) DOWN (7) DOWN (8) DOWN

Remote on Frequency 5

Turn Remote on then scroll down to the Timer:

Press the Minus button - 10 times...you are now in the frequency section.

Now use your up and down keys to get frequency 005

NOTE: The + Key will change your temp from C to F...pay attention.

Press Minus- again to exit and your remote is now set.
