111441-01 RECEIVER MODULE 0.584.201 OLD STYLE

The SIT remote receiver module 111441-01 and the 0.584.201 has been discontinued and must be upgraded to the new SIT remote receiver control module part number 0.584.211-01

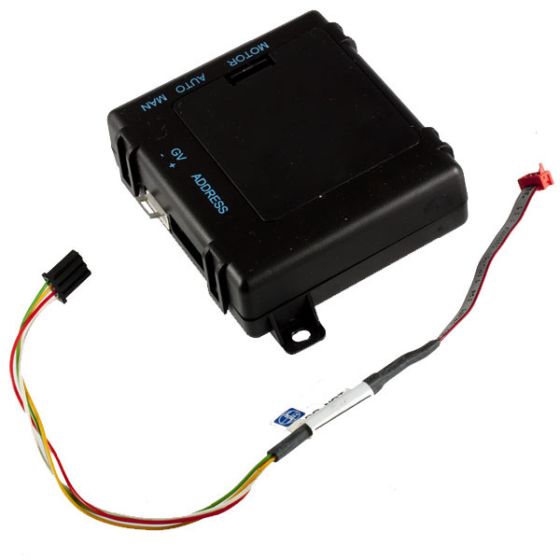

The older style remote receiver used a grey wire harness with a red 6 pin connector.

Please look at the pictures of the remote to know if you have the old style remote or the new 0.584.211-01 remote transmitter.

This new series remote receiver control module will not hook up to the old stepper motor wire harness and must be replaced with a new stepper motor that is designed for LPG Propane Gas or NG Natural gas applications.

How to Program Remote Receiver?

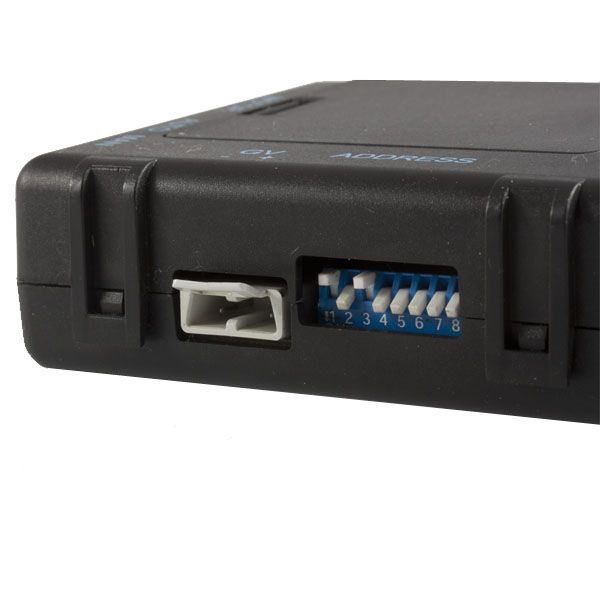

DIP SWITCH SETTINGS STOCK:

(1) UP (2) DOWN (3) UP (4) DOWN (5) DOWN (6) DOWN (7) DOWN (8) DOWN

Remote on Frequency 5

Turn Remote on then scroll down to the Timer:

Press the Minus button - 10 times...you are now in the frequency section.

Now use your up and down keys to get frequency 005

NOTE: The + Key will change your temp from C to F...pay attention.

Press Minus- again to exit and your remote is now set.
