R7611 Pilot Assembly for Empire Direct Vent Propane Fireplaces Systems
In stock
Part Number
R7611
$76.00
The Empire R7611 Pilot is an OEM Liquid Propane Gas pilot assembly used in various Empire Comfort Systems direct vent gas fireplaces.
This Pilot ODS Assembly should only be ordered if this is the exact replacement part for your heater, as listed in your owner’s manual.
All appliance repairs should be made by a qualified certified HVAC technician with proper testing equipment.
This original equipment pilot assembly is used in Empire brands, including American Hearth, Plaza, and White Mountain Hearth fireplaces.
It is a tri-flame pilot, meaning it has three flames coming out simultaneously to heat the thermocouple, thermopile, and ignite the burner.

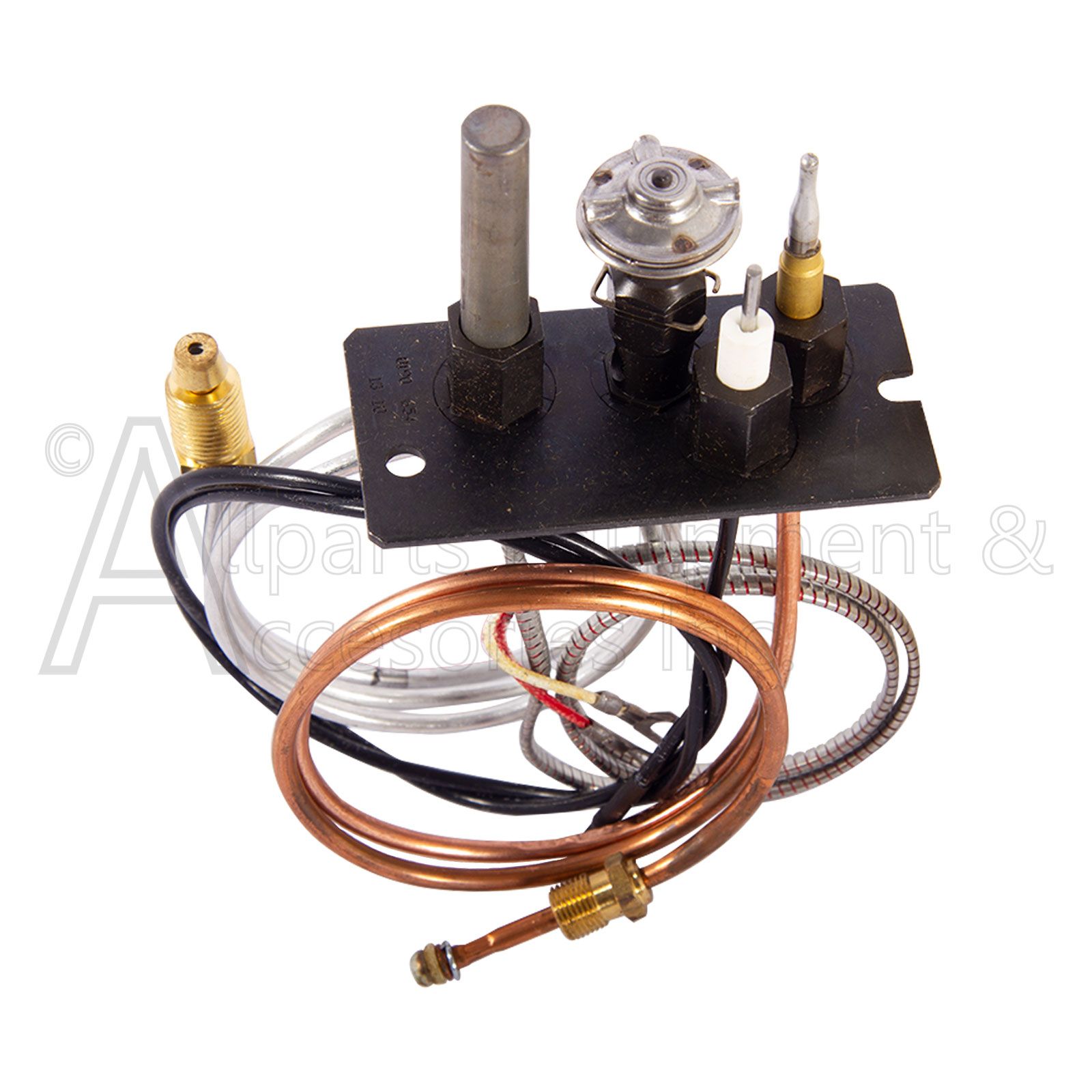

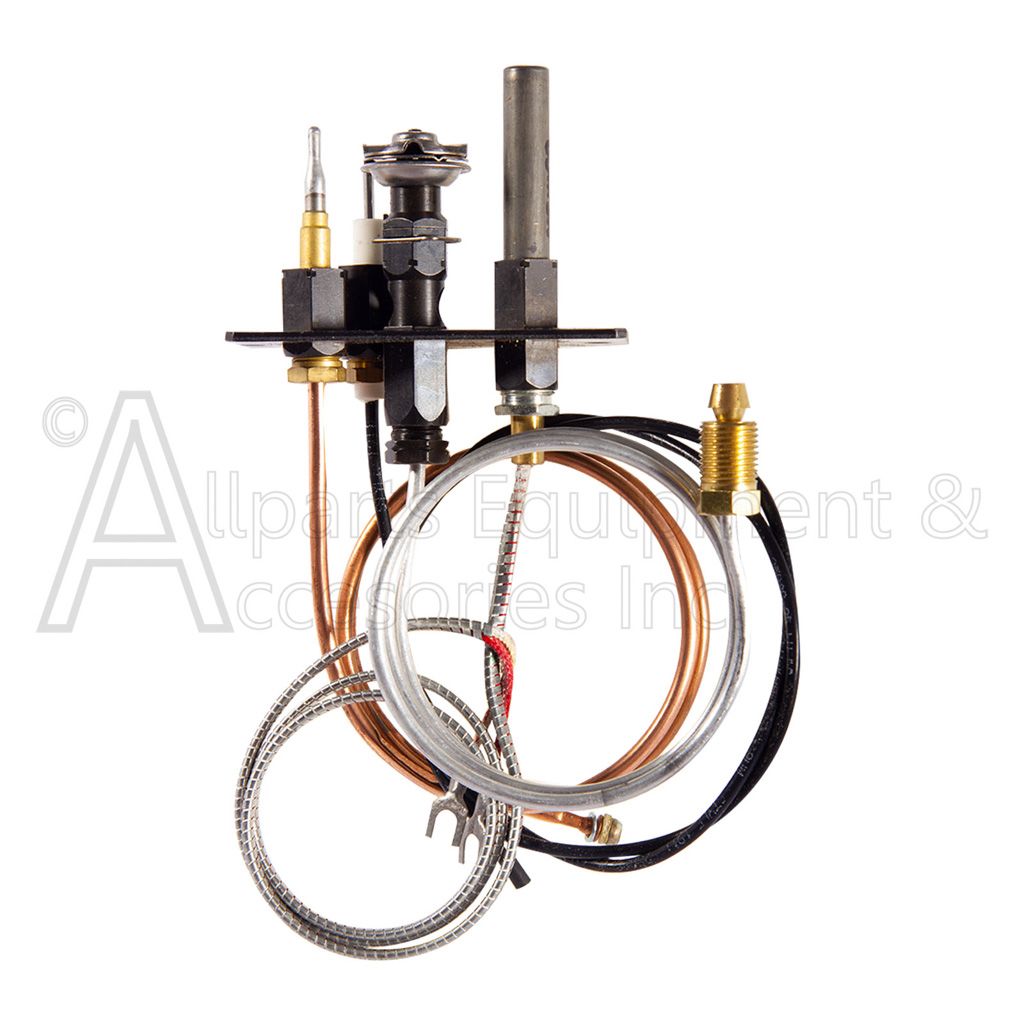

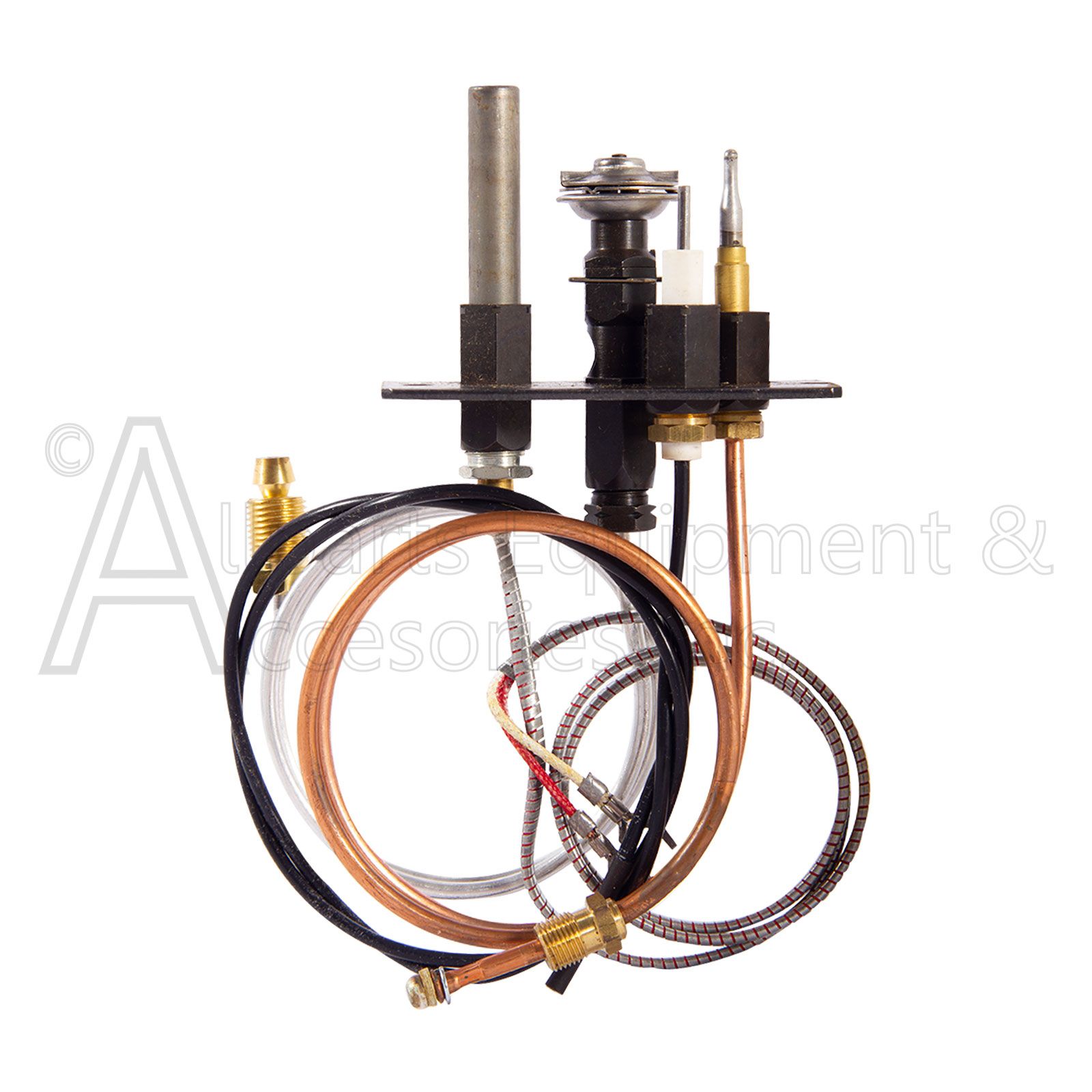

The R7611 pilot assembly includes the pilot burner, R9823 thermocouple, R9824 thermopile generator, R9825 spark igniter electrode, and R9826 Pilot tubing.
This is the replacement part for the following partial list of direct vent fireplaces that use the R7611 pilot assembly.
- DVC20IN31KN-2
- DVC26IN31KN-2
- DVC28IN31KN-2
- DVCC32BP30KN-4
- DVCC36BP30KN-4
- More Listings
The Empire R7611 OEM Pilot is made to the highest standard of Sit Controls Group and features:
- Sit Controls Pilot with SIT Bracket Reference 654.
- Sit Controls Thermo-Generator Thermopile 750Mv.
- Sit Controls Pilot Tube with Fittings.
- Sit Controls Electrode and Ceramic Cable.
- Sit Controls Thermocouple.
- Sit Controls Propane Gas Pilot Orifice Injector
This Pilot ODS Assembly should only be ordered if this is the exact replacement part for your heater, as listed in your owner’s manual.
All appliance repairs should be made by a qualified certified HVAC technician with proper testing equipment.
If you are having problems with your fireplace’s pilot assembly, it is essential to consult a qualified technician. They can diagnose the problem and replace the assembly if necessary.
The R7611 Empire Propane gas Pilot will work on the following models:
American Hearth Gas Fireplaces:
- Cast Iron Stove DV AH (DVP(20,30)CC(30,70))
- Deluxe DV AH DVD(32,36,42,48)
- Deluxe DV Clean Face AH DVCD(32,36,42)FP(30,50N)
- Empire Cast Iron Stove Direct-Vent
- Fireplace DV Insert AH DV(25,33,35)IN
- Franklin Direct-Vent Clean-Face Traditional Fireplace Insert (DVC(20,26,28)IN)
- Luxury DV AH (DVX(36,42)FP(3,5,7,9)
- Luxury DV Gallery DVX(36,42)DP(51N, 91)
- Madison Clean Face Premium See-Through (DVCP36SP)
- Madison Clean-Face Premium Peninsula (DVCP36PP)
- Madison Deluxe (DVD32FP, DVD36FP, DVD42FP, & DVD48FP)
- Madison Luxury Fireplace (DVX36FP & DVX42FP)
- Madison Multi-Sided DV Fireplace DVP36(PP,SP)
- Madison Premium Clean-Face Contemporary Fireplace (DVCC_BP)
- Madison Premium Clean-Face Traditional Fireplace (DVCP_BP)
- Madison Premium Fireplace (DVP36FP)
- Madison Premium Fireplace (DVP42FP & DVP48FP)
- Premium Contemporary Clean Face AH (DVCC 32,36, 42)BP
- Premium DV 36 AH DVP36FP(3,5,7,9)
- Premium DV 42/48 AH DVP(42,48)FP(3,5,7,9)
- Premium Traditional Clean Face AH (DVCP 32,36,42)BP
Empire Gas Fireplaces:
- DVCD32FP30N-1
- DVCD32FP30P-1
- DVCD32FP50N-1
- DVCD36FP30N-1
- DVCD36FP30P-1
- DVCD36FP50N-1
- DVCD42FP30N-1
- DVD36FP52N-3
- DVCD42FP50N-1
- DVCD42FP30P-1
White Mountain Hearth Gas Fireplaces:
- Deluxe Clean Face WMH DVCD(32,36,42)FP(30,50N)
- Deluxe Traditional WMH DVD(32,36,42,48)FP
- DVX36FP93CLN-1
- Empire Cast Iron Stove Direct-Vent (DVP_CC)
- Fireplace DV Insert WMH DV(25,33,35)IN(33L,73L)
- Innsbrook Direct-Vent Clean-Face Traditional Fireplace Inserts
- Luxury DV Studio DVX(36,42)DP(31,51,71,91)
- Premium Contemporary Clean Face WMH (DVCC 32,36)BP
- Premium Traditional Clean Face WMH (DVCP 32,36,42)BP
- Premium Traditional WMH DVP(42,48)FP(3,5,9)
- Premium Traditional WMH DVP36FP(3,5,7,9)
- Tahoe Clean-Face Premium Peninsula (DVCP36PP)
- Tahoe Deluxe (DVD32FP, DVD36FP, DVD42FP, DVD48FP)
- Tahoe Deluxe Clean-Face Fireplace (DVCD_FP)
- Tahoe Luxury Fireplace (DVX36FP & DVX42FP)
- Tahoe Multi-Sided DV Fireplace DVP36(PP,SP)32E(N,P)
- Tahoe Premium Clean-Face Contemporary Fireplace
- Tahoe Premium Clean-Face Traditional Fireplace (DVCP_BP)
- Tahoe Premium Fireplace (DVP36FP)
- Tahoe Premium Fireplace (DVP42FP & DVP48FP)
Write Your Own Review
The R7611 pilot assembly works by first igniting the pilot burner tri-directional hood. The thermocouple then generates a voltage that opens the gas valve safety circuit, allowing the pilot to stay on, This allows for the pilot control knob to be turned to the on position of the gas valve. After 3 minutes of the pilot running, the thermopile generates enough voltage to power the gas valve primary circuit, allowing gas to flow into the main burner and ignite the appliance.
