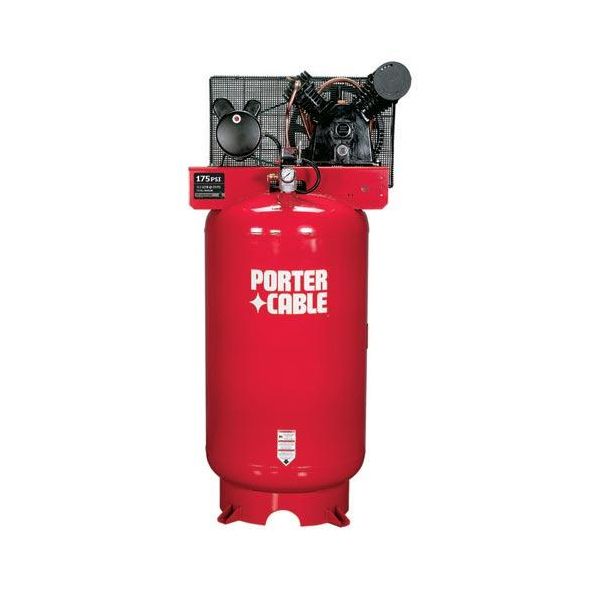

C7550 PORTER CABLE AIR COMPRESSOR
Reference Item Only
Part Number
C7550
C7550 is a Porter-Cable oil lube two stage air compressor.
Specifications:
Horsepower Peak: 7.0
Voltage-Single Phase: 240V
Minimum Branch Circuit Requirement: 30 amps
*Fuse Type: Time Delay
Air Tank Capacity, Gallons: 80 ASME, Vertical
Approximate Cut-in Pressure: 140 PSIG
Approximate Cut-out Pressure: 175 PSIG
SCFM @ 100 psig: 15.6
SCFM @ 175 psig: 15.2
Specifications:
Horsepower Peak: 7.0
Voltage-Single Phase: 240V
Minimum Branch Circuit Requirement: 30 amps
*Fuse Type: Time Delay
Air Tank Capacity, Gallons: 80 ASME, Vertical
Approximate Cut-in Pressure: 140 PSIG
Approximate Cut-out Pressure: 175 PSIG
SCFM @ 100 psig: 15.6
SCFM @ 175 psig: 15.2
THIS MODEL NUMBER IS FOR REFERENCE PURPOSES ONLY. THIS UNIT IS NO LONGER BEING SOLD AS A NEW UNIT. SEE ASSOCIATED PDF MANUALS FOR REPLACEMENT PARTS.
