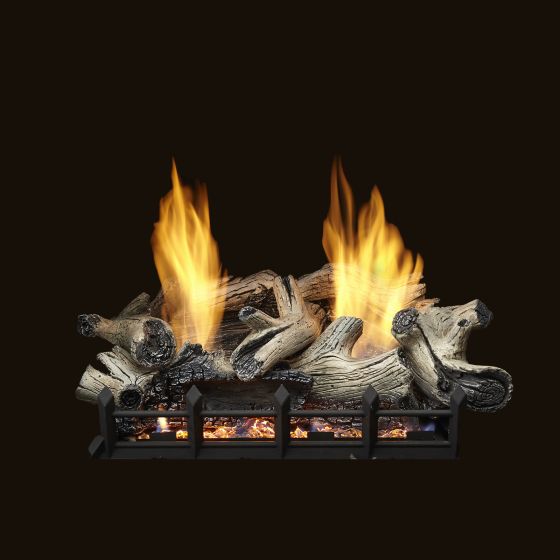

NB24NIF Natural Blaze 24 in. Vent Free NG Log Set w/ Intellifire Plus
Reference Item Only
Part Number
NB24NIF
NB24NIF is a 24-inch natural gas log set from the Natural Blaze series of Monessen of log sets. This ventless log burner set requires no outdoor air venting for its intake or exhaust systems.
This Natural Blaze burner requires a 24 in. or 30 in. Monessen display log set and a vent free firebox for proper operation. The firebox must meet the minimum size requirements listed in the NB24NIF's user manual.
The pilot used in the NB24NIF features an electronic ignition. The pilot can be toggled between both standing pilot mode or intermittent pilot mode as desired, though it is set by the manufacturer for intermittent pilot mode by default.
Three-stage variable flame adjustment is supported by the remote included wit the NB24NIF.
Specifications of the Natural Blaze NB24NIF Natural Gas Log Set
- Gas Type: Natural Gas
- Ignition Type: Millivolt (Remote-Ready)
- Max. BTU Input: 37,000 BTU/h.
- Orifice Type: 3.00 mm. NG
- Gas Connection Size: 3/8 in.
- Min. Gas Inlet Pressure: 5.0 in. W.C.
- Max. Gas Inlet Pressure: 10.5 in. W.C.
- Manifold Pressure: 3.5 in. W.C.
Firebox Size Requirements for the Natural Blaze NB24NIF Gas Log Set
With a 24 in. Monessen Display Log Set:
- Front Width: 31 in.
- Back Width: 25.25 in.
- Height: 17 in.
- Length: 13 in.
With a 30 in. Monessen Display Log Set:
- Front Width: 35 in.
- Back Width: 25.25 in.
- Height: 17 in.
- Length: 13 in.
For specific clearance and air flow requirements, please refer to the user's manual for the NB24NIF.
