D20659 MOTOR WITH OVERLOAD PIVOT MOUNT 220 VOLT ONLY
Reference Item Only
Part Number
D20659
This motor has been discontinued with no current replacement.

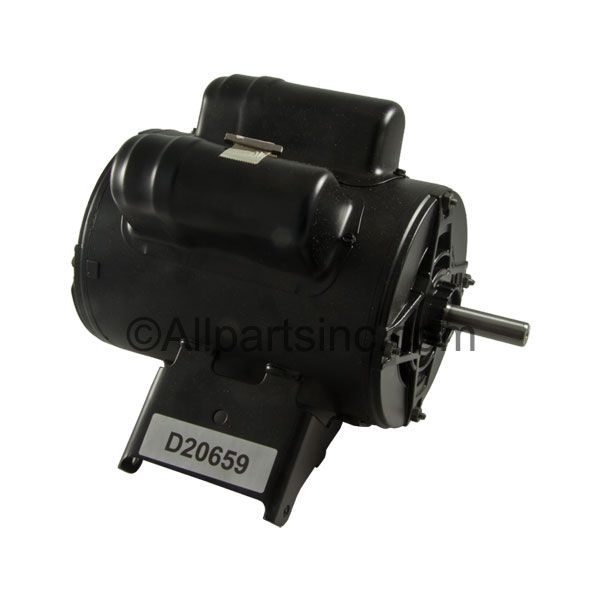

D20659 Ballerina Mount Replacement Motor with Overload Protection is a "220 VOLT SPLIT PHASE MOTOR ONLY" air compressor duty rated motor.
This motor cannot be used for 120 Volts applications:
The D20659 Motor has not been replaced by the Z-D20659 Compressor Duty Rated Replacement Motor.
This Z-D20659, D20659 Replacement Motor was used by several privately labeled air compressor including Sears Craftsman, DeVilbiss, Porter Cable, Dewalt, Delta and others.
The motor has a special mounting bracket welded to the side of the motor that allows the weight of the motor to assist in the tension on the belt.
The Z-D20620 motor will fit the following model:
This motor cannot be used for 120 Volts applications:
919-18419 Type 0 919-18419 Type 1 919-18419 Type 2 919-18419 Type 3 919-18695 Type 1 919-72728 Type 0 919-72728 Type 2
ACBL520 Type 1 ACBL760V Type 0
AFL520 Type 1
C7501 Type 1 C7501M Type 0 C7501M Type 1
CPLC7060V Type 1 CPLC7060V Type 2 EXLC7060V Type 0
HL6560V Type 1
HL7060V Type 0
IR25E20AD Type 0
IR5E20AD Type 0 IR5E20AD Type 1 IR5E20AD Type 2
IR5E30AD Type 0 IR5E30AD Type 1 IR5E30AD Type 2
IRC5E20AD Type 0 IRC5E20AD Type 1
IRL6520 Type 0
IRL6530 Type 0 IRL6530 Type 1
IRLC6520 Type 0
IRLC6560V Type 1
L520 Type 1 L520 Type 2
L530 Type 0 L530 Type 1
L6520 Type 0
L6530 Type 0 L6530 Type 1
PALC520 Type 0 PALC520 Type 1
PALC6520 Type 0
PALC6560V Type 1
PALC7060V Type 0
RA5E20AD Type 0 RA5E20AD Type 1 RA5E20AD Type 2
RAC5E20AD Type 0 RAC5E20AD Type 1
RAL6520 Type 0 RALC6520 Type 0
RALC6560V Type 1
