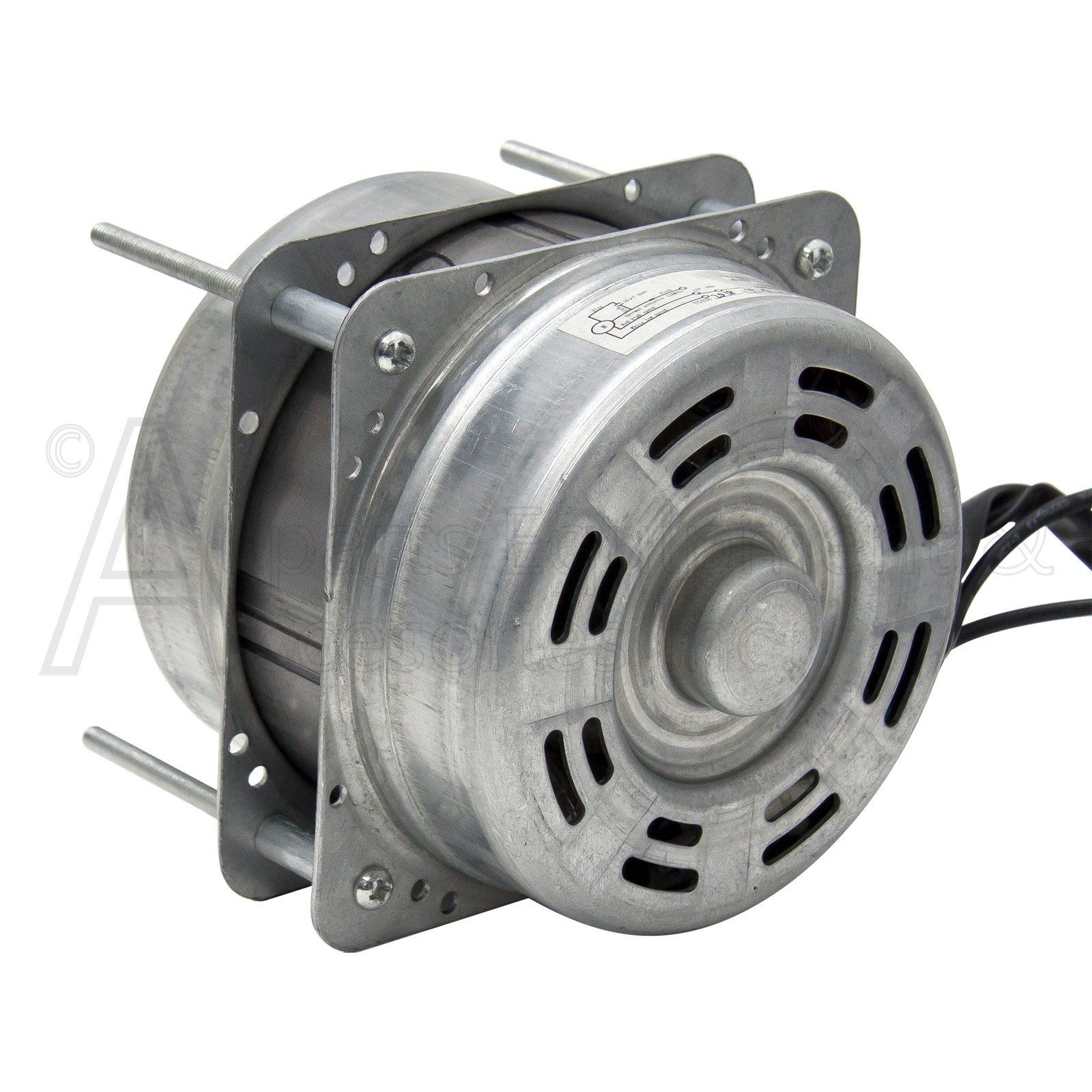

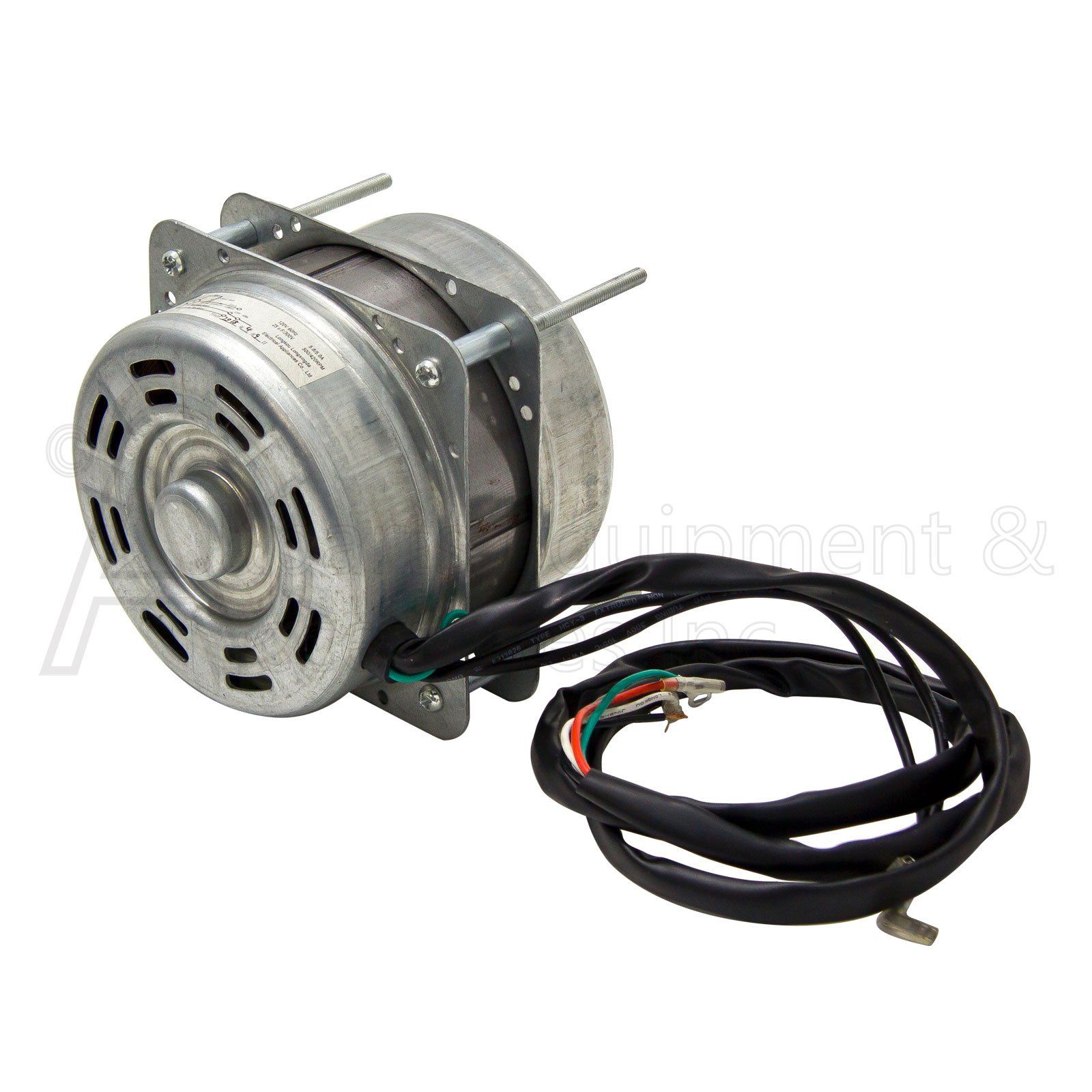

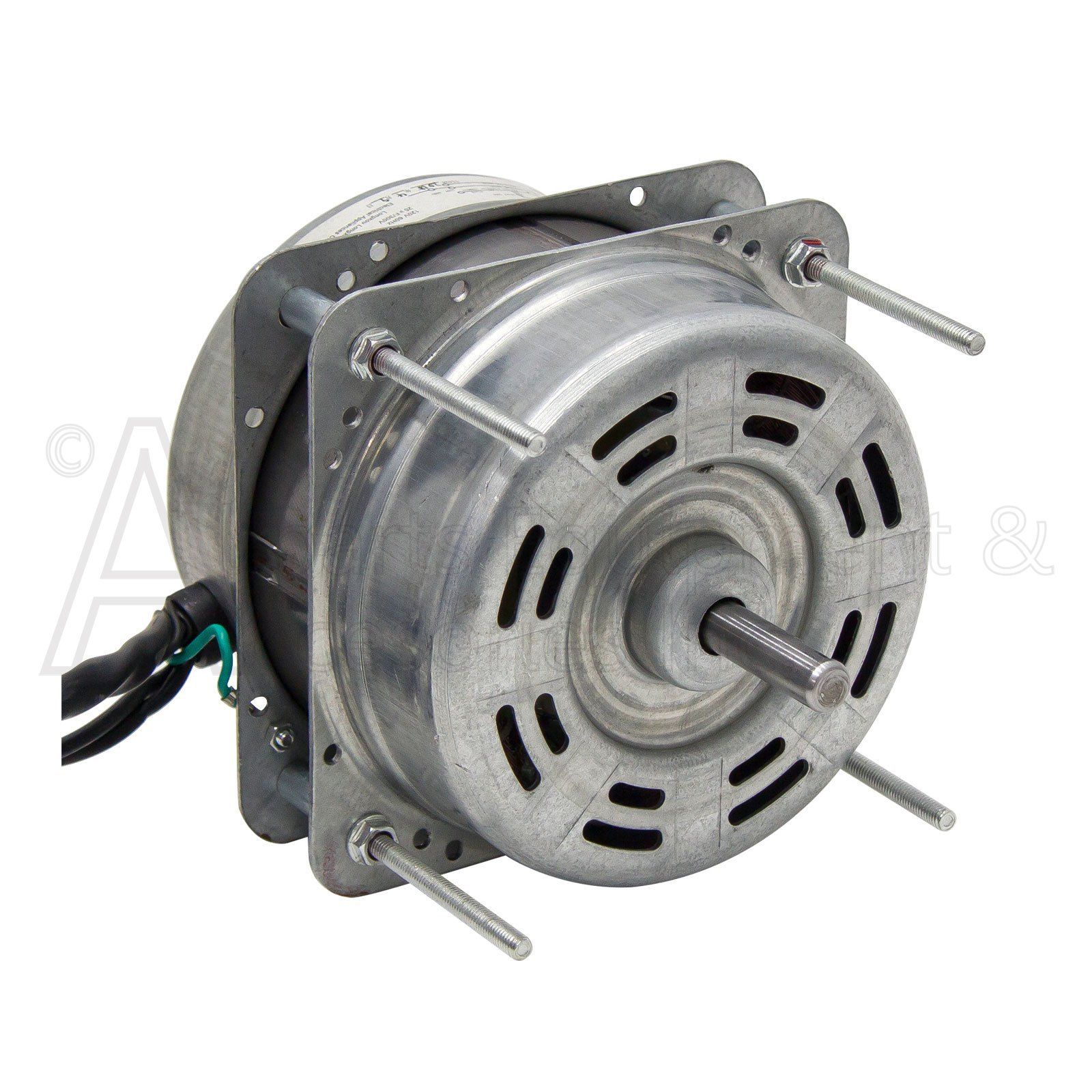

90-030-0725 Motor 1/3 HP 120V 4.9 Amps 530 RPM Short Shaft 36-BDF 2012-2017

90-030-0725 Motor was used with the 36 Inch BDF Series Pinnacle Products Air Circulators Fans.

The Motor Specification are:

1/3 HP Horsepower
120 Volt AC 60Hz
25uF Capacitor Required
4.0 to 5.0 Amps Depending on Fan Speed Setting
540 Max High RPM Setting
460 Min Low RPM Setting

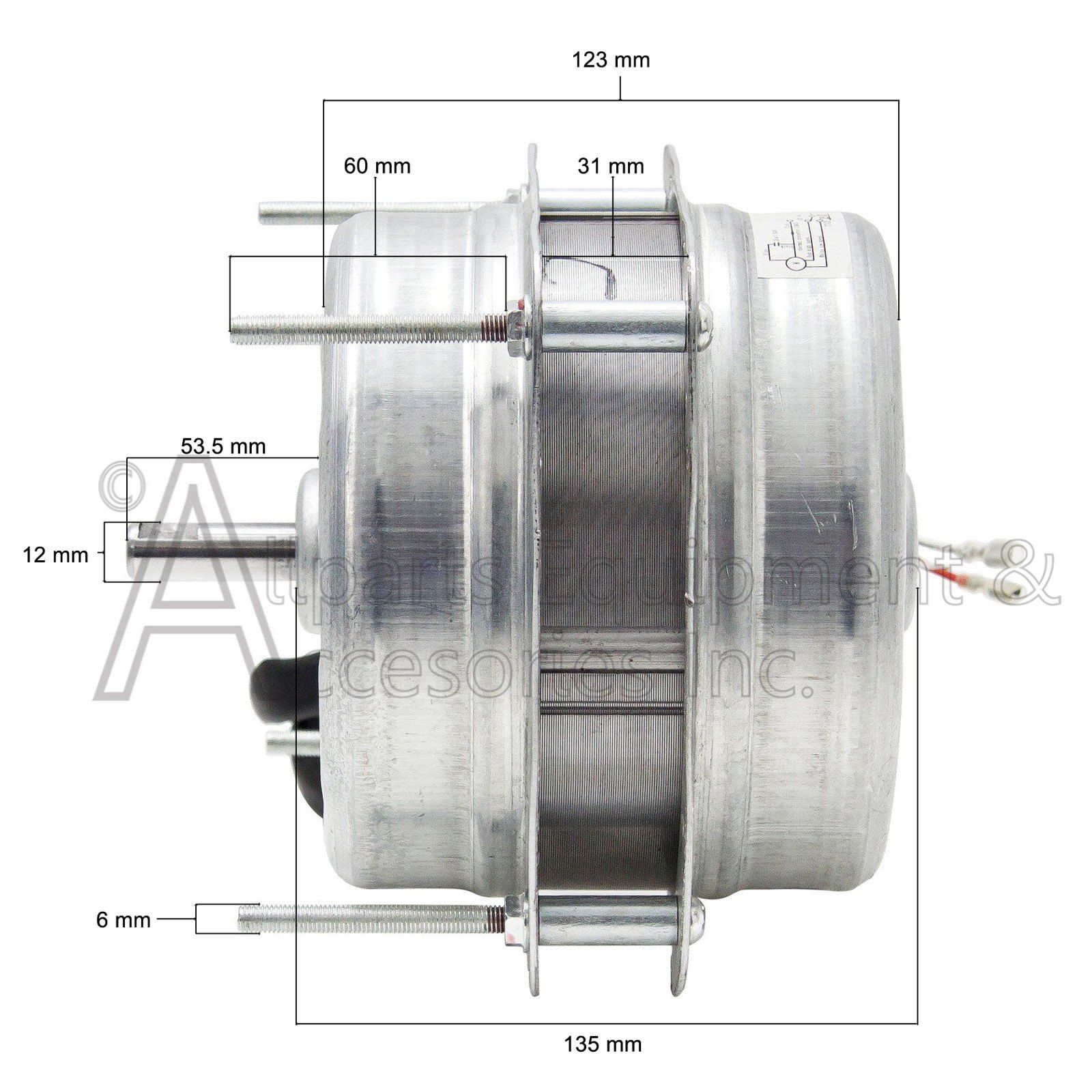

12 MM Diameter 40MM Shaft from motor housing.
6 MM Bolt Mount

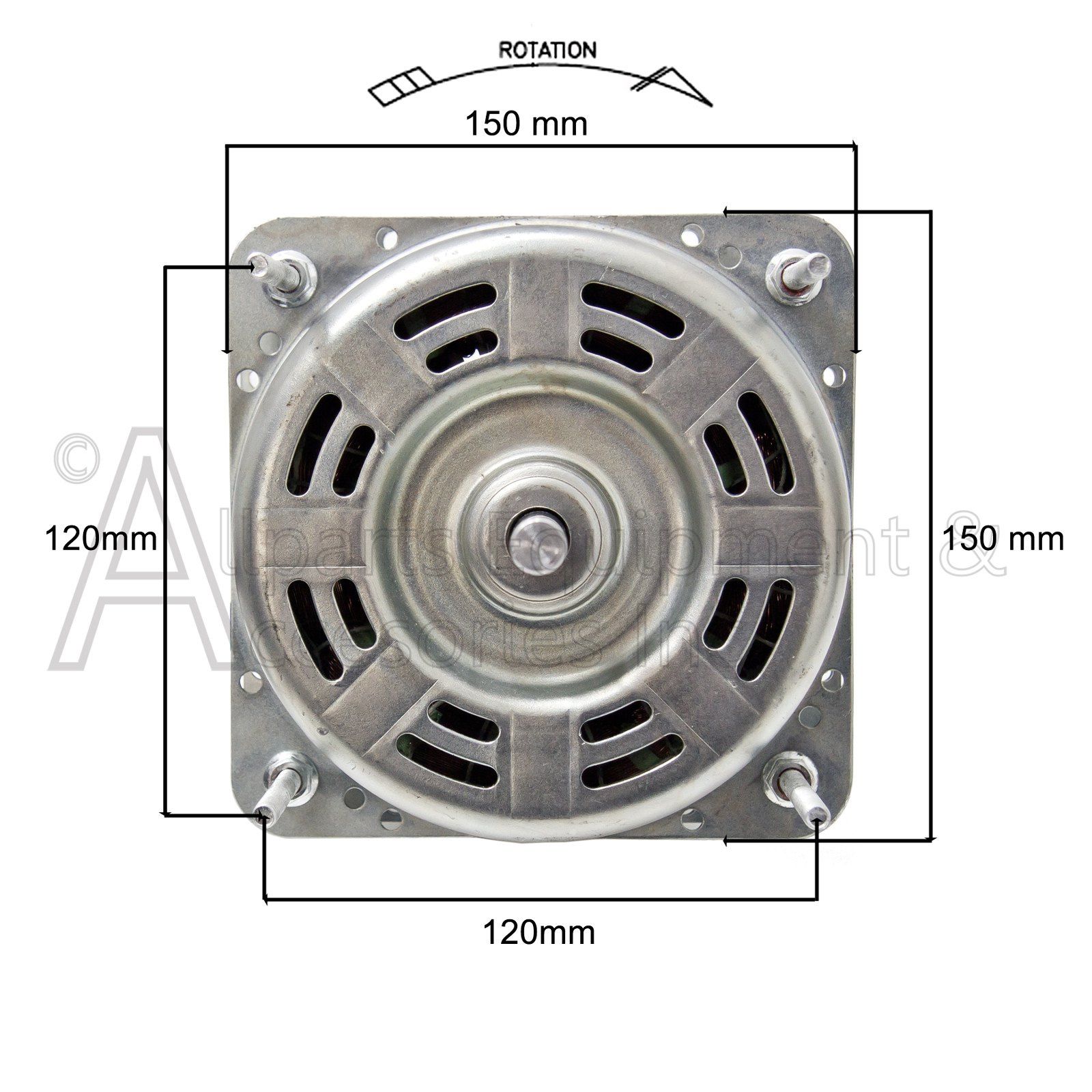

120 MM Square Mounting Bolt Spacing.

This motor was used on all 36-BDF Series fans from 2012 thru 2017 including the following models and brands of high capacity barrel fans manufactured by Pinnacle Climate Technologies including the following models:

Master High Capacity Barrel Fan:
MAC-36-BDF

County Line Circulating Fans Bands by Tractor Supply
CL-36-BDF-A

Big Country Breeze Portable Air Circulators
BCB-36-BDF

ProTemp Portable Air Circulators:
PT-36-BDF
