60105 ignition control for mr. heater
60105 ignition control for mr. heater ignition control garage heater connections 60105 ignition circuit board for MHU heaters 60105 ignition control circuits MHU Trouble Code Chart for 60105 Boards Ignition control board installation diagram

60105 Ignition Control Circuit Board for Overhead Compact Furnaces from Enerco

In stock
Part Number
60105
$53.15
Part Number: 60105
Brand: MR HEATER PORTABLE HEATER MANUFACTURER
Shipping Weight: 0.875 Lbs
Non Returnable
Click here to agree to Allpart's Return Policy.
Please see our return policy
⇧ Check The Box If You Want To Proceed.

The 60105 Ignition Control Circuit Board is a replacement Model SCN KWC control board from Enerco for multiple models of compact heaters and overhead furnaces manufactured by Mr. Heaterr.


This control board is sold under several brands including: Mr. Heater, Heatstar, Bix Maxx as well as many others.

The 60105 Automatic Ignition System Circuit Control Board has the following specifications:

Model: SCN KWN
Voltage: 24 Volts AC
Hertz Frequency: 50Hz/60Hz
Input; 0.55A Max


The 60105 Ignition Control Circuit Board is a replacement for the partial following heater model numbers and others privately labels units by Enerco:

Mr Heater models using the 60105 Control Board:
MHU45
MHU50
MHU55
MHU70
MHU75
MHU80
MHU125

Heatstar models using the 6015 Control Board:
HSU45
HSU50
HSU55
HSU75
HSU80
HSU125

Need Help? Call us:

1-269-685-4123

The 60105 Control Board is the newest style 6 Pin control board for all Mr heater, HeatStar, Big Maxx and Enerco overhead Propane and Natural gas unit heaters.

Service Note:

On some of the older Mr Heater and HeatStar Compact Furnaces the 6 pins inside of the plastic Molex connector were "Female Pins"

These Control Board were made by NOVAR Controls and were marked near the Y C W G R Screw connections.

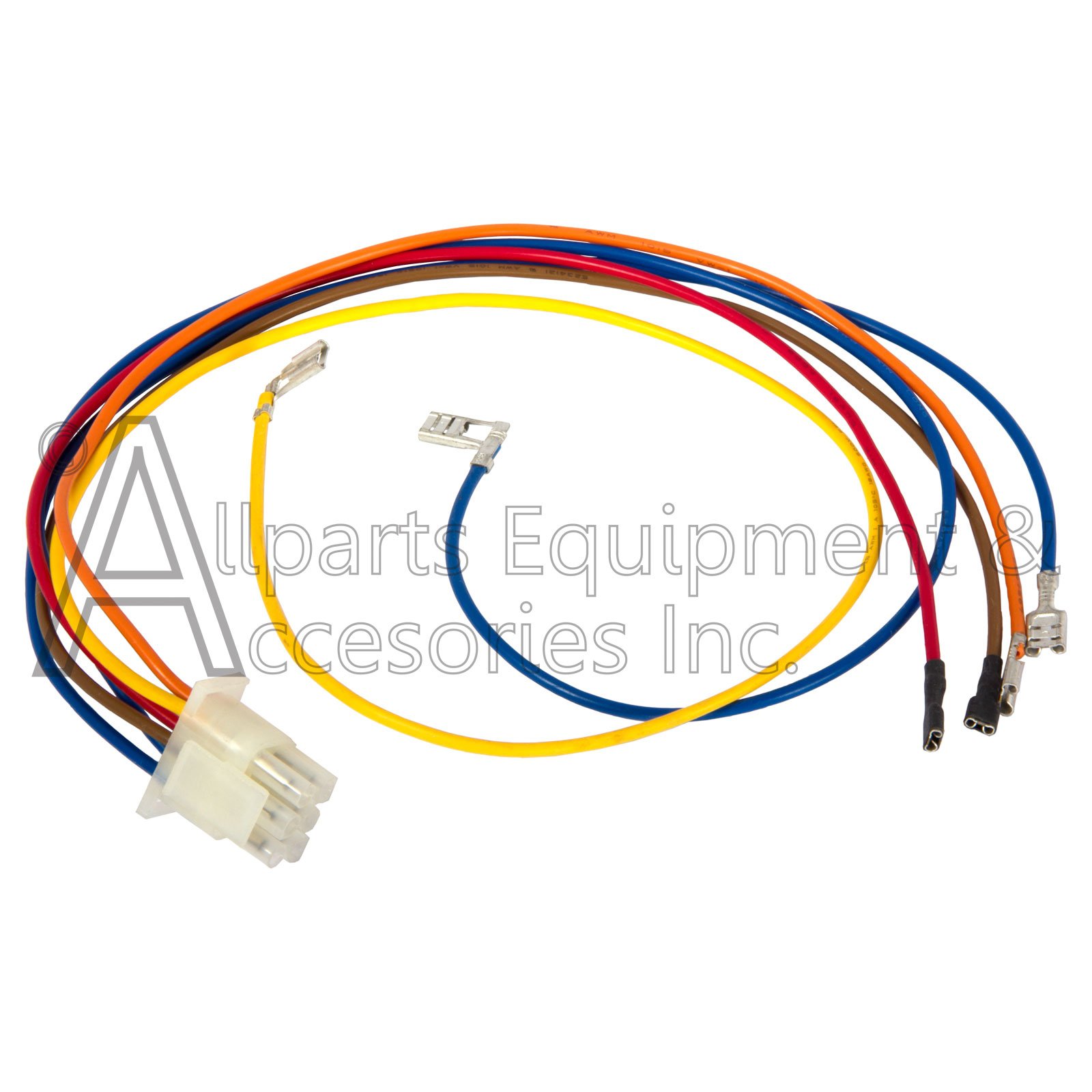

These NOVAR Control board can be replaced with the 60105 Control Board but will also require a new 60104 Ignition Control Wire harness
