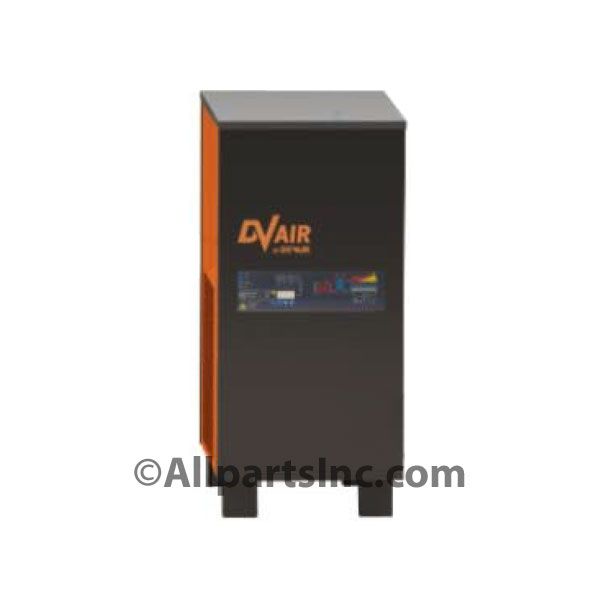

HTD18 HI-TEMP COMPRESSED AIR DRYER 18 CFM 120V

Refrigerated Air Dryers are a cost affective means of eliminating moisture from compressed air by means of lowering the temperature of the air.

As the compressed air temperature is lowered, the moisture contained in the air is separated by means of stainless steel baffles, and then further discharged by means of an automatic drain.

To limit the size of the Dryer Unit, an internal heat exchanger is used.

The heat exchanger allows the cold air exiting the Unit to cool the warmer air entering the Dryer.

Once the air passes through the Dryer Unit, it is virtually humidity-free.

Handles inlet temperatures up to 180° F.

Freon R134a refrigerant.

Insulated secondary heat exchanger with encapsulated stainless steel moisture separator.

Fully digital control panel accurately monitors dew point, compressor fan, auto-drain and temperature.

Low maintenance.

Variable-speed fan to maintain balanced dew point; cross ventilated to allow installation close to wall.

Remote signal alarm relay.

Microprocessor controlled solenoid drain valve with Y trap.

Rugged powder coated steel cabinet.

Low noise level.

Space saving design.

Easy access panels for maintenance.
