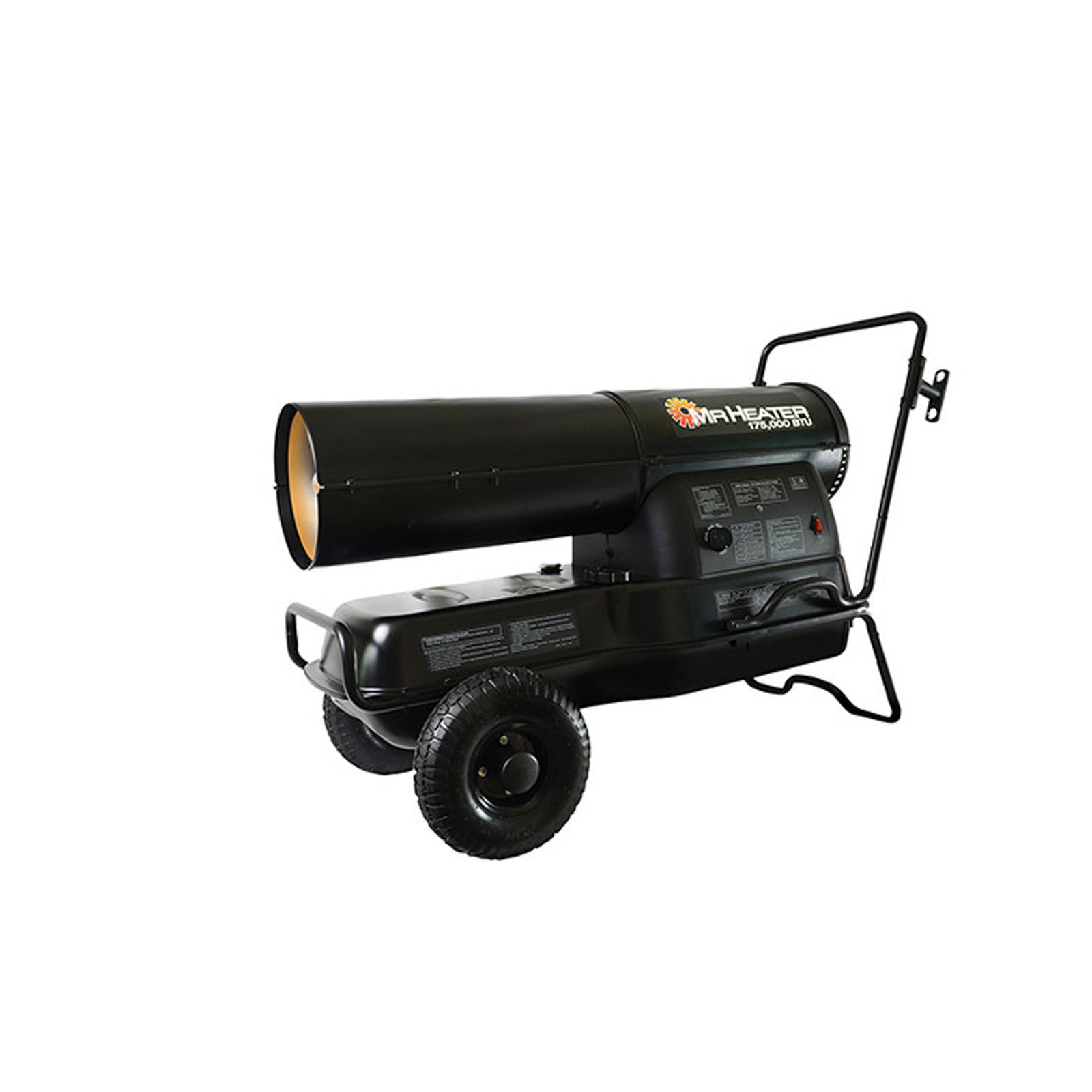

F270370 MH175KTR FORCED AIR KEROSENE HEATER
This is the Mr Heater Forced Air Kerosene Heaters Model Number MH175KTR America # 1 Choice for portable heating.
The Mr Heater MH175KTR is a great solution for your portable heating needs and can be used for Construction sites, Agricultural Buildings, Industrial and Commercial Workspaces, Barns, Sporting Events, Factory Zone heating as well as a variety of other heating venues.
The MH175KTR Portable Forced Air Kerosene Heater feature some of the following features.
175,000-BTU forced-air kerosene heater for up to 4,250 square feet.
Large 13.4 Gallon Fuel Tank that provides up to 10 hours of heat.
Adjustable Built In Thermostat.
High-Output 5 Blade Aluminum Fan.
Cad Cell Flame Sensor for Flame Out Safety Control.
Built in Over-Heat Safety Sensors with Auto Shut-Off.
Capacitor Start Motor for Increased Motor Life.
Continuous Run Electronic Ignition.
Diagnostic LED Indicator Light.
Sturdy Metal Construction.
Other features Include: Illuminated On/Off Switch, Fuel Gauge, Air Pressure Gauge, Cord Wrap, Easy-Off Gas Cap, Dual Powder-Coated Black Handles, Oversized Pneumatic Tires, Fuel Tank Drain, .
Recommended for use with No.1-K kerosene fuel. Factory tested for use with No.2-K kerosene, No.1 or No.2 Diesel, No.1 or No.2 fuel oil or JP8 Jet A fuel and these fuels may be used as well.
This is a kerosene, direct-fired, forced air heater. It’s intended use is primarily temporary heating of buildings under construction, alteration or repair.
Direct-Fired means that all of the combustion products enter the heated space.
Even though this heater operates very close to 100 percent combustion efficiency, it still produces small amounts of carbon monoxide.Please see Owner's manual for further details on proper operating procedures.
IMPORTANT: Before filling fuel tank the first time or after extended storage periods, drain the fuel tank of any moisture or condensation.
Mr Heater MH175KTR Specifications:
175,000 BTU/Hr (51kW) Kerosene Heater.
1.3 Gallons Per Hour (5.0 L/Hr)
115 Volts, 60 Hertz at 5.5 Amps Running.
5.8 PSIG Pump Setting (40Kpa)
1450 Degree F (787 Degree C)
13.4 Gallon Fuel Tank (51L)
Direct Spark Continuous Ignition
Ceramic 13kV, 10ma Ignitor Assembly
Solid State Electronic Control
This is an unvented portable heater. It uses air (oxygen) from the area in which it is used. Adequate combustion and ventilation air must be provided.
Forced Air means that a blower or fan pushes the air through the heater. Proper combustion depends upon this air flow; therefore, the heater must not be revised, modified or operated with parts removed or missing. Likewise, safety systems must not be circumvented or modified in order to operate the heater.
When the heater is to be operated in the presence of other people the user is responsible for properly acquainting those present with the safety precautions and instructions, and of the hazards involved
