DWD2536 Triplex Plunger Pump AAA 3600 PSI 2.5 GPM 3600 PSI 3/4 Shaft with 3/8 Quick Connect

The DWD2536 AAA™ Triplex Plunger Pump Kit is a highly efficient pump that minimizes engine load while delivering top performance with a Max 3600PSI @ 2.5 Gpm.

This DWD2536 AAA Triplex Plunger Pump is equipped with a patented technology that provides higher pressure at the spray nozzle.

The DWD2536 replacement pump contains dual oversized ball bearings for better wear, friction resistance and longer lasting performance in tough cleaning environments.

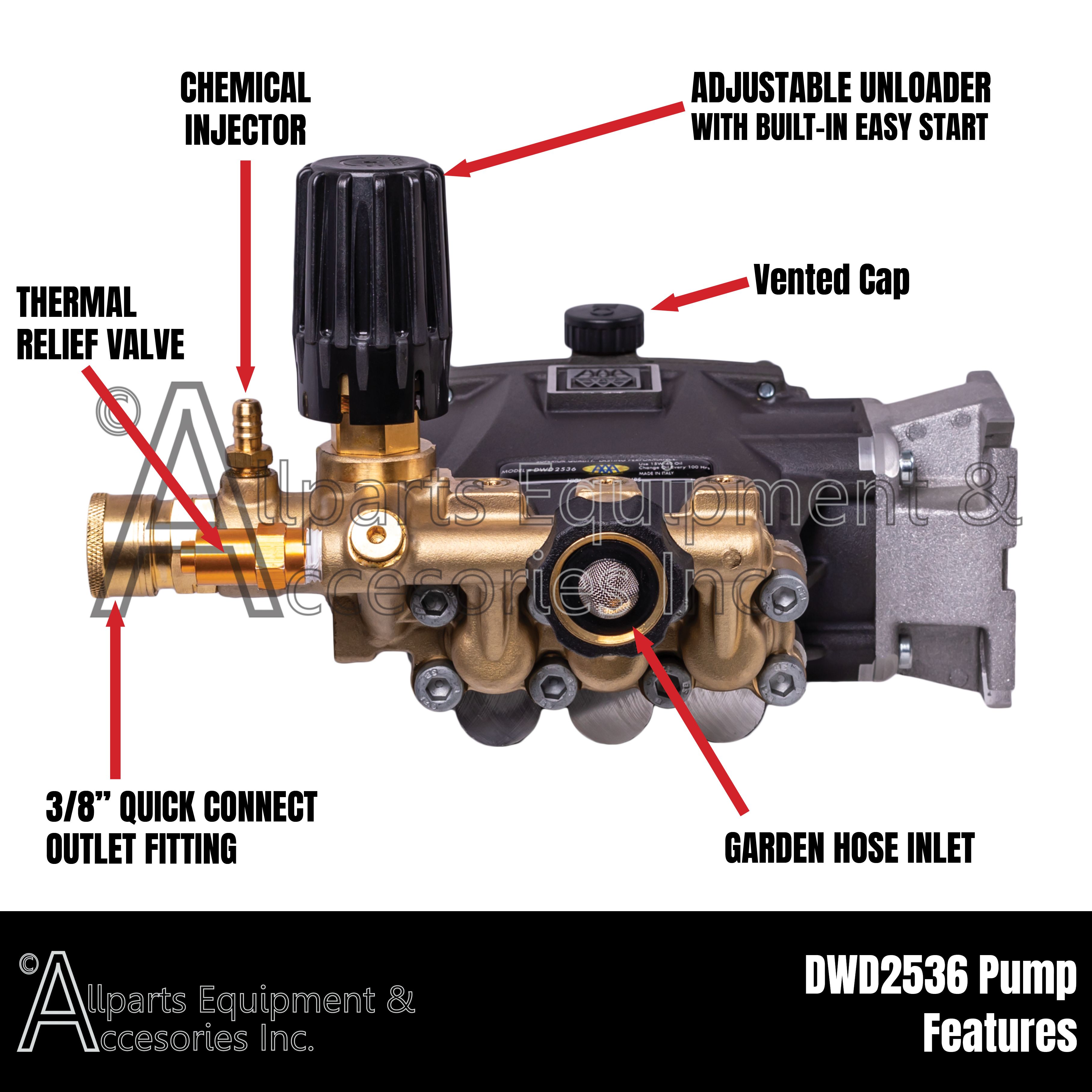

Features:

-3600 PSI @ 2.5 GPM
-Built-In unloader and chemical injector for quick plug and play on systems.
-Ceramic plungers to prevent pitting and wear.
-Fully adjustable unloader system with ergonomic control.
-Stainless steel check valves to protect from the harshest elements.
-Oversized Sight glass and advanced oil seal technology, does away with the need for a dipstick.
-Thermal relief protection to prevent pump overheating.
-Dual oversized radial ball bearings are installed for better wear, friction resistance and precision coated pistons for extended seal life.
-Crankcase is manufactured from fully anodized die cast aluminum for corrosion protection and is sealed to prevent contamination and lube failure.
-Gas engine flange and 3/4 Inch hollow shaft that fits most horizontal shaft engines.

Specifications:

PSI: 3600
GPM: 2.5
Inlet Port: 3/4" GH
Discharge Port: 3/8 Brass Quick Connect Fitting
Inlet Pressure Range: 10-60 PSI
Thermal Relief Port: 1/4" NPT
Shaft Diameter: 3/4"
Flange Bolt Pattern: SAE J-609A
Key Way: 3/16"
Pump Oil Capacity: 10.0 Fluid Ounces 15W40 Simpson Oil
Head: Forged Brass
